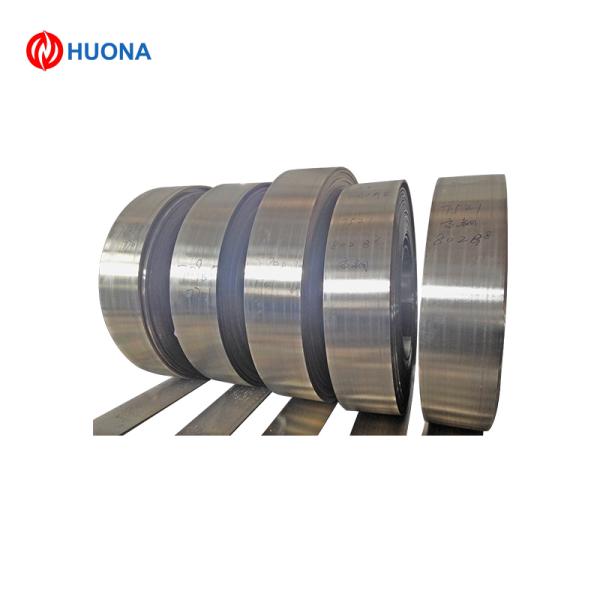

Silver Coated Copper Tape for Electrical Shielding & Connections
Silver Coated Copper Tape for Electrical Shielding & Connections
Specifications
Brand Name :
Huona
Model Number :
Silver Plated Copper Strip
Certification :
ISO9001,SGS
Place of Origin :
CHINA
MOQ :
20-50KG
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
500tons per month
Delivery Time :
5-21days
Packaging Details :
Carton/Woodbox
Silver Plating Thickness :
0.5μm–8μm (customizable)
Product Name :
Silver Plated Copper Strip
Strip Thickness :
0.05mm, 0.1mm, 0.2mm, 0.3mm, 0.5mm, 0.8mm (customizable)
Strip Width :
3mm, 5mm, 10mm, 15mm, 20mm, 30mm (customizable up to 100mm)
Tensile Strength :
260–360 MPa
Operating Temperature :
- 70°C to 160°C
Description
Product Description​
Silver - Plated Copper Strip​
Product Overview​
Silver - plated copper strip integrates the high conductivity of pure copper with the enhanced electrical performance and corrosion resistance of silver plating. The copper base provides a stable low - resistance foundation, while the uniform silver plating layer improves surface conductivity and oxidation resistance. It is widely used in electromagnetic shielding, high - frequency transformers, lithium - ion battery tabs, and precision electrical components.​
Standard Designations​
  • Material Standards:​
  • Copper base: Complies with ASTM B152 (copper sheet and strip standards).​
  • Silver plating: Follows ASTM B700 (electrodeposited silver coatings).​
  • Electrical materials: Meets IEC 61238 and MIL - STD - 883 standards.​
Key Features​
  • Superior surface conductivity: Silver plating ensures low signal loss in high - frequency applications.​
  • Excellent electromagnetic shielding: Blocks interference in sensitive electronic systems.​
  • Strong corrosion resistance: Resists oxidation and humidity in harsh environments.​
  • High dimensional precision: Uniform thickness and flatness for consistent performance.​
  • Good formability: Can be cut, bent, and stamped into custom shapes.​
Technical Specifications​
​
Attribute​
Value​
Base Copper Purity​
≥99.95%​
Silver Plating Thickness​
0.5μm–8μm (customizable)​
Strip Thickness​
0.05mm, 0.1mm, 0.2mm, 0.3mm, 0.5mm, 0.8mm (customizable)​
Strip Width​
3mm, 5mm, 10mm, 15mm, 20mm, 30mm (customizable up to 100mm)​
Tensile Strength​
260–360 MPa​
Elongation​
≥25%​
Electrical Conductivity​
≥99% IACS​
Operating Temperature​
- 70°C to 160°C​



​
Chemical Composition (Typical, %)​
​
Component​
Content (%)​
Copper (Base)​
≥99.95​
Silver (Plating)​
≥99.9​
Trace Impurities​
≤0.05 (total)​



​
Product Specifications​
​
Item​
Specification​
Length per Roll​
50m, 100m, 300m, 500m (customizable)​
Packaging​
Vacuum - sealed in anti - static bags; packed in cardboard boxes with moisture - proof layers​
Surface Finish​
Mirror - bright silver plating with Ra ≤0.8μm​
Flatness Tolerance​
≤0.01mm/m (ensures uniform contact)​
OEM Support​
Custom width, thickness, plating thickness, and laser cutting available​



​
We also provide other plated copper strips such as gold - plated copper strip and nickel - plated copper strip. Free samples and detailed technical datasheets are available upon request. Custom specifications can be tailored to meet shielding, conduction, or battery application requirements.
