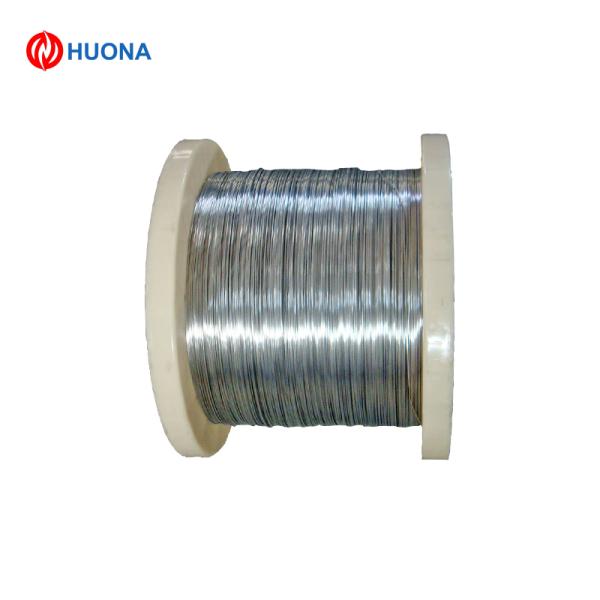

Nickel-Plated Copper Wire for Electronics and Automotive
Nickel-Plated Copper Wire for Electronics and Automotive
Specifications
Brand Name :
HUONA
Model Number :
Nickel-Plated Copper
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
10kg
Price :
Bargain
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
500tons per month
Delivery Time :
5-21days
Packaging Details :
Spooled on plastic/wooden spools; packed in bags, cartons, or pallets
Product Name :
Nickel-Plated Copper Wire
Base Copper Purity :
≥99.9%
Chemical Composition :
Copper and Nickel
Nickel Plating Thickness :
0.5μm–5μm (customizable)
Wire Diameters :
0.5mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm
Tensile Strength :
300–400 MPa
Description

Product Description

Nickel - Plated Copper Wire

Product Overview

Nickel - plated copper wire combines the excellent electrical conductivity of copper with the corrosion and wear resistance of nickel. The copper core ensures efficient current transmission, while the nickel plating provides a protective barrier against oxidation and corrosion. It is widely used in electronics (connectors, coils, leads), automotive (electrical wiring in harsh environments), and jewelry (decorative elements) industries.

Standard Designations

  • Material Standards:
    • Copper: Complies with ASTM B3 (electrolytic tough - pitch copper).
    • Nickel plating: Follows ASTM B734 (electrodeposited nickel coatings).
    • Electronics: Meets IEC 60228 (electrical conductors).

Key Features

  • High conductivity: Enables low - resistance and efficient current transmission.
  • Corrosion resistance: Nickel plating prevents oxidation, moisture, and chemical damage.
  • Wear resistance: Nickel’s hardness reduces damage during handling and operation.
  • Aesthetic appeal: Bright and shiny nickel surface is suitable for decorative applications.
  • Processing compatibility: Compatible with common soldering and joining techniques.
  • Thermal stability: Reliable performance in the range of - 40°C to 120°C (extendable with special plating).

Technical Specifications

Attribute Value
Base Copper Purity ≥99.9%
Nickel Plating Thickness 0.5μm–5μm (customizable)
Wire Diameters 0.5mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm (customizable)
Tensile Strength 300–400 MPa
Elongation ≥15%
Operating Temperature - 40°C to 120°C

Chemical Composition (Typical, %)

Component Content (%)
Copper (Core) ≥99.9
Nickel (Plating) ≥99
Trace Impurities ≤1 (total)

Product Specifications

Item Specification
Available Lengths customizable
Packaging Spooled on plastic/wooden spools; packed in bags, cartons, or pallets
Surface Finish Bright - plated (matte optional)
OEM Support Custom labeling (logos, part numbers, etc.)


We also offer other copper - based wires such as tinned copper wire and silver - plated copper wire. Free samples and detailed technical datasheets are available upon request. Custom specifications including nickel plating thickness, wire diameter, and packaging can be tailored to meet specific needs.
