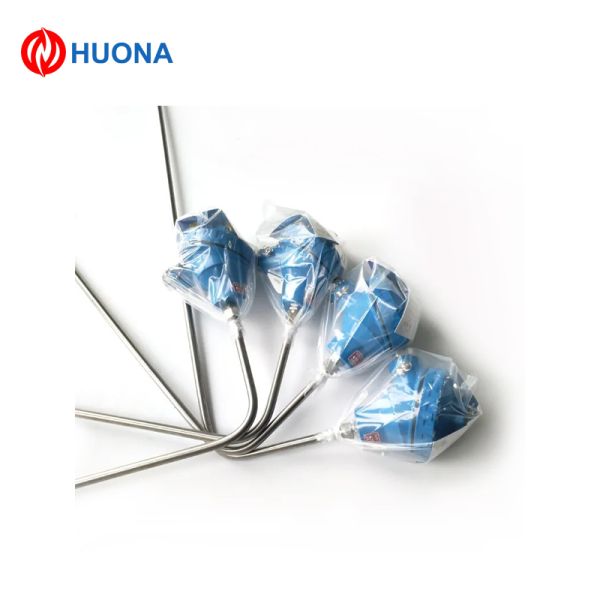

Type K Bendable Thermocouple Probe (304 Stainless Steel Sheath, IP65)

Product Overview

Standard Designations & Core Material Foundation

• Thermocouple Type: Type K (Chromel/Alumel; compliant with IEC 60584-2 Class 1)
• Key Specification:
  • Sheath: 304 stainless steel; diameter: 6mm (customizable: 3–12mm); length: customizable (e.g., 150mm, 300mm, 500mm); bendable to custom angles
  • Connection head: Blue cast aluminum (IP65 protection, waterproof and dustproof)
  • Thermocouple wire: Chromel (KP) / Alumel (KN), diameter: 0.5mm (customizable: 0.3–1.0mm)


• Sheath Material: 304 Stainless Steel (corrosion-resistant, high-temperature, bendable)
• Chemical Composition: Positive (KP): Ni 89%/Cr 10%/Fe 1%; Negative (KN): Ni 95%/Al 2%/Mn 2%/Si 1%
• Compliant Standards: IEC 60584-2, ASTM E230, GB/T 4989, RoHS 2.0
• Manufacturer: Huona New Material, certified to ISO 9001 and IATF 16949

Key Core Advantages (Centered on Bendable Design & IP65 Protection)

1. Flexible Bendable Sheath

• Customizable Bend Angles: The 304 stainless steel sheath can be bent to custom angles (e.g., 90°, 45°) to access confined or hard-to-reach measurement points, ideal for complex industrial equipment.
• Maintains Performance: Bending does not compromise the thermocouple's performance or structural integrity, ensuring reliable measurements in non-linear installation paths.

2. Wide Temperature Range & Stability

• Continuous Operation: Up to 1100℃, short-term up to 1200℃, suitable for a broad range of industrial temperature monitoring applications.
• Thermoelectric Stability: Stable EMF output with minimal drift under long-term use, ensuring reliable and consistent measurement data.

3. High Precision & Accuracy

• Class 1 Accuracy: Thermoelectric potential error ≤±1.5℃ (0–400℃) / ±0.4% t (400–1100℃), meeting the precision requirements for industrial process control.
• Fast Thermal Response: Compact sheath design provides a thermal response time (τ₅₀) ≤2s in air at 800℃, ideal for dynamic temperature monitoring.

4. Rugged Construction & Environmental Resistance

• 304 Stainless Steel Sheath: Resists corrosion, abrasion, and mechanical impact, extending service life in harsh industrial environments (e.g., petrochemical, marine).
• IP65 Connection Head: Blue cast aluminum head with IP65 protection, preventing ingress of dust and water, suitable for outdoor and wet industrial settings.

5. Versatile Processability

• Flexible Termination: Connection head accommodates standard terminal blocks for easy wiring and maintenance.
• Customizable Options: Supports various sheath lengths, diameters, and bend angles to meet specific application needs.

Technical Specifications

Product Specifications

Typical Application Scenarios

• Industrial Furnaces & Heat Treatment: Temperature monitoring in confined spaces of steel mills, forging shops, and heat treatment furnaces.
• HVAC & Building Automation: Temperature sensing in boilers, chillers, and ductwork where straight probes cannot be installed.
• Petrochemical & Refining: Process temperature control in reactors, pipelines, and storage tanks with complex geometries.
• Food & Beverage: Temperature control in ovens, sterilizers, and processing equipment with non-linear installation paths.
• Laboratory & R&D: Temperature measurement in experimental setups and equipment with confined or irregularly shaped measurement points.
