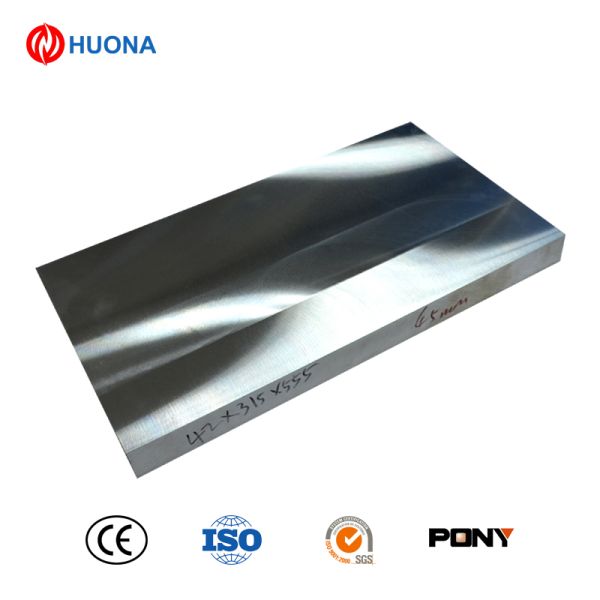

AM50A Magnesium Plate (50.80×71×148mm, H112)

Product Overview

Standard Designations & Core Material Foundation

• Alloy Grade: AM50A (Mg-Al-Mn Wrought Magnesium Alloy)
• Key Specification:
  • Dimensions: 50.80mm (thickness) × 71mm (width) × 148mm (length)
  • Tolerance: ±0.1mm (thickness), ±0.2mm (width/length)
  • Supply Condition: H112 (hot-rolled, stress-relieved)


• Chemical Composition (wt%): Al:4.5~5.5; Mn:0.28~0.5; Mg:Remainder; Fe≤0.005; Si≤0.05; Cu≤0.01; Ni≤0.002
• Compliant Standards: GB/T 5153-2023, ASTM B117, EN 10204-3.1, RoHS 2.0
• Manufacturer: Huona New Material, certified to ISO 9001 and IATF 16949

Key Core Advantages (Centered on H112 Condition & High Ductility)

1. Excellent Ductility & Energy Absorption

• Superior Elongation: Elongation ≥12% in H112 condition, providing excellent energy absorption and impact resistance, ideal for automotive crash components.
• Moderate Strength: Tensile strength ≥200MPa, yield strength ≥120MPa, balancing strength and ductility for structural safety applications.

2. Good Formability & Processability

• Balanced Ductility: Suitable for precision machining (turning/milling/drilling) and moderate forming operations.
• Machinability: Easy to machine with high surface finish, reducing processing time and cost.

3. Good Corrosion Resistance

• Enhanced Oxidation Resistance: Optimized aluminum and manganese content, combined with strict impurity control, improves corrosion resistance in atmospheric environments.
• Surface Treatment Compatibility: Supports anodizing, passivation, and coating for enhanced durability in harsh conditions.

4. Stable Microstructure & Performance

• Uniform Grain Structure: Precision rolling ensures consistent mechanical properties across the entire plate, reducing performance variability.
• Temperature Stability: Withstands service temperature from -40℃ to 120℃ (continuous), maintaining structural integrity without creep or deformation.

5. Eco-Friendly & Sustainable

• 100% Recyclable: AM50A magnesium alloy can be completely recycled and reused, with no heavy metal pollution, complying with green industrial development standards.

Technical Specifications

Product Specifications

Typical Application Scenarios

• Automotive Safety Components: Crash beams, door impact beams, and steering column components for energy absorption.
• Automotive Structural Parts: Instrument panel beams, seat frames, and cross-car beams for lightweighting.
• Industrial Equipment: Lightweight structural supports and brackets for machinery.
• Consumer Goods: Sporting goods and luggage frames requiring high impact resistance.
• Aerospace: Non-structural components for drones and aircraft interiors.
