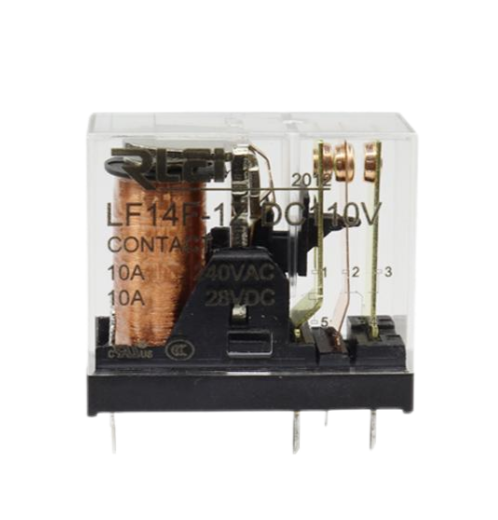

Miniature PCB Relay LF14F Type SPDT 10A 240VAC 110VDC Coil High Sensitivity Long Life Customizable
Miniature PCB Relay LF14F Type SPDT 10A 240VAC 110VDC Coil High Sensitivity Long Life Customizable
Miniature PCB Relay LF14F Type SPDT 10A 240VAC 110VDC Coil High Sensitivity Long Life Customizable
Miniature PCB Relay LF14F Type SPDT 10A 240VAC 110VDC Coil High Sensitivity Long Life Customizable
Specifications
Dielectric Strength :
1500VAC 50/60Hz 1min (Coil to Contact)
Release Time :
8ms Maximum
Certification :
UL, CQC, RoHS, ISO 9001:2015
Manufacturer :
Factory Direct Production (ECER)
Features :
Small Size, Light Weight, High Sensitivity, Long Life
Payment Terms :
T/T,L/C,PayPal
Coil Voltage :
DC 5V / 12V / 24V / 48V / 110V (Customizable)
Electrical Life :
100,000 Operations at Rated Load
2-Pole Rating :
5A 240VAC / 5A 28VDC
Insulation Resistance :
1000MΩ Minimum at 500VDC
Contact Material :
AgNi / AgCdO (Customizable)
Model Number :
LF14F-10A
Supply Ability :
500000 Pieces per Month
Coil Power :
0.53W Standard / 0.36W High Sensitivity
Mechanical Life :
10 Million Operations Minimum
Mounting Type :
PCB Through Hole / Socket Mount
Place of Origin :
Zhejiang, China
Packaging Details :
Tube packaging, 25pcs per tube, export carton with desiccant
Operating Temperature :
-40°C to +70°C
Contact Form :
SPDT 1Z (1 Form C) / DPDT 2Z (2 Form C)
1-Pole Rating :
10A 240VAC / 16A 240VAC / 10A 28VDC
Operate Time :
15ms Maximum
Relay Type :
Miniature PCB Power Relay LF14F Type
OEM Services :
Custom Coil Voltage, Contact Rating, Pin Layout, Socket Assembly
Delivery Time :
3-7 working days for stock, 15-25 days for production
Description

Miniature PCB Relay LF14F Type 10A — Factory Direct

Compact · High Sensitivity · Long Life · PCB & Socket Mount · Custom Coil Available
