Specifications
Brand Name :
Huawei
Model Number :
NE40E-X3 NE40E-X8 NE40E-X16
Certification :
CQC
Place of Origin :
China
MOQ :
1 unit
Price :
4222-9256 USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 units
Delivery Time :
7 work days
Packaging Details :
Original brand carton
Product Name :
Service WAN Router
Business slot :
16
Overall height :
32U
Exchange network board :
4
Forwarding Rate :
5760 Mpps
switching capacity :
12.58 Tbps
Description

NE40E-X3 NE40E-X8 NE40E-X16 Core Router Netengine 40E Enterprise Universal Service 100G WAN Router


Description

NE40E-X3/X8/X16 belongs to the NetEngine 40E series and is a high-end multi service router designed for carrier core/aggregation, large enterprise backbone, and data center interconnection. It focuses on high-density, high bandwidth, low latency, and strong reliability
Main control and switching architecture
All adopt a distributed forwarding+centralized switching architecture, supporting seamless upgrades, hot patching, and hot plugging of NSF/ISSU/ISSU+NSF.
Main control board (MPU): 2 slots, 1+1 redundancy, responsible for management, protocol, and control plane.
Exchange network board (SFU):
X3:2 slots, 1+1 redundancy
X8:4 slots, N+M redundancy
X16:8 slots, N+M redundancy
Business board (LPU/FIC):
X3: 3 slots
X8:8 slot
X16:16 slot
Support 10GE/25GE/40GE/100GE/400GE interface boards (iterate with version and board type).
2. Forwarding performance (typical value, varies with board type)
NE40E-X3: The overall forwarding capacity is approximately 12Tbps/24Tbps (depending on SFU and LPU)
NE40E-X8: The entire machine has a forwarding capacity of approximately 32Tbps/64Tbps
NE40E-X16: The entire machine has a forwarding capacity of approximately 64Tbps/128Tbps
A single slot can support high-density cards such as 100GE × 16/400GE × 4, meeting the requirements of high bandwidth interconnection.

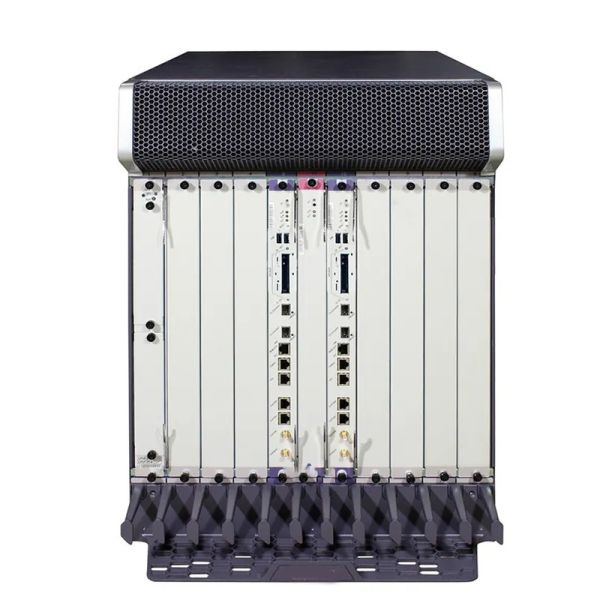

Pictures


NE40E-X3 NE40E-X8 NE40E-X16 Core Router Netengine 40E Enterprise Universal Service 100G WAN Router

Specification


comparative dimension
NE40E-X3 / X3A
NE40E-X8 / X8A
NE40E-X16 / X16A
Product positioning
Compact full-service router
Medium sized full-service router
High end full-service core router
Typical application scenarios
Large enterprises/parks converge, small and medium-sized core
Large enterprise core, metropolitan area network convergence
Core of backbone network for operators/large enterprises
performance metrics
Switching capacity: 75.94 Tbps [X3]/257.02 Tbps [X3A]
Switching capacity: 1.44 Tbps [X8]/811.64 Tbps [X8A]
Switching capacity: 2.56 Tbps [X16]/1623.27 Tbps [X16A]

Forwarding performance: 9000 Mpps [X3]/57139.2 Mpps [X3A]
Forwarding performance: 800 Mpps [X8]/185702.4 Mpps [X8A]
Forwarding performance: 1600 Mpps [X16]/371404.8 Mpps [X16A]
hardware configuration
3 business board slots, 2 main control board slots
8 business board slots, 2 main control board slots, and 4 switching network board slots
16 business board slots, 2 main control board slots, and 4 switching network board slots
physical properties
Size: 6U, weight approximately 74.7kg (fully equipped)
Size: 21U, weight approximately 186kg (fully equipped)
Size: 40U, weight approximately 356kg (fully equipped)

Power consumption: approximately 1120W (200G configuration)
Power consumption: approximately 4770W (480G configuration)
Power consumption: approximately 9040W (480G configuration)

NE40E-X3 NE40E-X8 NE40E-X16 Core Router Netengine 40E Enterprise Universal Service 100G WAN Router
