NetEngine NE40E-X3 Enterprise Universal WAN Service Network Router With 100GE/40GE/10GE Ports
NetEngine NE40E-X3 Enterprise Universal WAN Service Network Router With 100GE/40GE/10GE Ports
NetEngine NE40E-X3 Enterprise Universal WAN Service Network Router With 100GE/40GE/10GE Ports
NetEngine NE40E-X3 Enterprise Universal WAN Service Network Router With 100GE/40GE/10GE Ports
NetEngine NE40E-X3 Enterprise Universal WAN Service Network Router With 100GE/40GE/10GE Ports
NetEngine NE40E-X3 Enterprise Universal WAN Service Network Router With 100GE/40GE/10GE Ports
Specifications
Brand Name :
Huawei
Model Number :
NE40E-X3
Certification :
CQC
Place of Origin :
China
MOQ :
1 unit
Price :
3600-8588 USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 units
Delivery Time :
7 work days
Packaging Details :
Original brand carton
Product Name :
Universal WAN Service Router
Switching capacity :
2.76 Tbps/257 Tbps (dual stack)
Dimensions (W x D x H) :
442×517.4×352.8mm
Packet forwarding rate :
1071 Mpps/57139 Mpps
Maximum single slot bandwidth :
240Gbps
Maximum port density :
24 × 100GE/48 × 40GE/96 × 10GE/192 × GE
Description

NetEngine NE40E-X3 Enterprise Universal WAN Service Network Router With 100GE/40GE/10GE Ports


Description

NE40E-X3 is an enterprise level full-service router launched by HW, belonging to the NE series network equipment, mainly used in operator backbone networks, large enterprise core layers, and data center interconnection scenarios. It adopts a modular architecture, equipped with 5 expansion slots (3 business boards+2 main control boards), supports high-density port expansion such as 100GE/40GE/10GE, has a switching capacity of Tbps level, and a forwarding performance of up to 960Mpps.

This Service Network Router is equipped with self-developed chips that are compatible with IPv4/IPv6 dual stack and MPLS VPN technology. It integrates security mechanisms such as ACL filtering and URPF, and supports network slicing and QoS traffic scheduling. The device adopts redundant power supply and hot swappable design

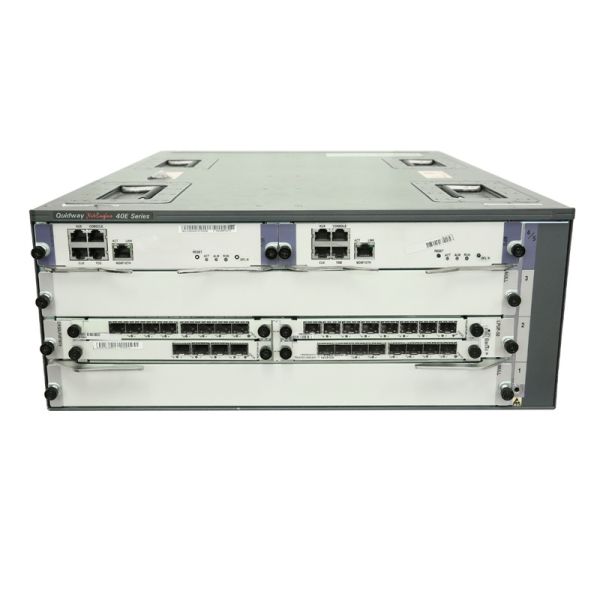

Pictures


NetEngine NE40E-X3 Enterprise Universal WAN Service Network Router With 100GE/40GE/10GE Ports

Specification

project Specifications
Business slot 3 (LPU, supports hot plugging)
Main control slot position 2 (1+1 redundancy, MPUEX/MPUEX)
Exchange network board Integrated (without independent slots)
Power slot position 2 (AC/DC optional, supports 1+1 redundancy)
fan module 2 (N+1 redundancy, intelligent speed regulation)
Whole machine form 8U rack mounted, size 442 × 517.4 × 352.8mm
Empty weight About 26kg
Full power consumption AC approximately 1070W, DC approximately 920W
cooling air duct Forward and backward (adapted to standard computer rooms)
parameter item specification value
switching capacity 2.76 Tbps/257 Tbps (dual stack)
Packet forwarding rate 1071 Mpps/57139 Mpps
Single slot bandwidth Maximum 240Gbps
Maximum port density 24×100GE/48×40GE/96×10GE/192×GE
MAC table ≥1M
routing table ≥4M(IPV4)/≥2M(IPV6)
VPN instance ≥4096
MPLS LSP ≥ 160000
QoS queue 8 queues per port, supporting HQQoS Huawei enterprise business

NetEngine NE40E-X3 Enterprise Universal WAN Service Network Router With 100GE/40GE/10GE Ports


Our Service

100% Low Price Guarantee:

networks-equipments.com provides high-quality products at low wholesale prices


100% Quality Assurance:

All items are brand new and factory-sealed.For added assurance, each unit can be fully tested and verified to be in perfect working condition by engineer—upon your request.


100% Money Back Guarantee:

If your returns meet our relevent standards,you can contact our customer service team to exchange or return any product that you bought from us.


Professional Technical Support:

networks-equipments.com experienced technical team can provide support over the phone, by chat, by email or by remotely login.


FAQ

1. Why choose us?

We are the leading Chinese supplier of quality networking equipments and we have over 10 years experience in this field.

2. What's the quality of the products?

All the items are brand original.

3. How to place an order?

After customer confirm the order , we will create an order as your request. We accept many terms of trade such as T/T,Wester,Union, Orders, Alipy and etc.

4. How about the shipment?

We deliver products by FEDEX, DHL, ARAMEX, EMS, UPS, TNT and Air shipping & Ocean transportation. We are also able to deliver goods to your forwarder in China if you need.

5. How about the warranty?

1 Year warranty.

6. Do you test all your goods?

A: Yes, we have professional engineer to test all devices before shipping.

7. What if machine not work during warranty?

Technical support avaliable,if can't fixed, replacement or return with full refund acceptable.

8. How about your main products?

Our product lines include Switches, Routers, Server, SFP Modules, OLTs, SDHs, Network Modules, Interface Cards, Security Firewalls, Wireless AP etc.

9. What brand of products do you offer?

A: We can provide all common brands in the market
