Specifications
Brand Name :
Huawei
Model Number :
NE40E-X3A
Certification :
CQC
Place of Origin :
China
MOQ :
1 unit
Price :
2900-4000USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 units
Delivery Time :
7 work days
Packaging Details :
Original brand carton
Product Name :
Enterprise Service Router
Part Number :
02350FML
Application :
ENTERPRISE
Wi-Fi Transmission Standard: :
802.11ac
Description

NE40E-X3A 02350FML 40x100/1000Base-X-SFP NetEngine Enterprise Service Router

Description


Based on a 2T platform, equipped with NP chipsets, and powered by its Versatile Routing Platform (VRP), the NetEngine 40E series provides the industry’s highest capacity 2T routing line cards. Combining performance with low power consumption, innovative Internet Protocol (IP) hard pipe technology, and quick evolution capabilities, NetEngine 40E routers meet the low latency and high reliability requirements of business-critical services as well as mature Wide Area Network (WAN) Software-Defined Networking (SDN) solutions. They can serve as core nodes on enterprise WANs, access nodes on large-scale enterprise networks, interconnection and aggregation nodes on campus networks, and edge nodes on large-scale Internet Data Center (IDC) networks.

NetEngine 40E Enterprise Service Router is based on 2T hardware platform design, large-capacity 2T routing line card, mature wide-area SDN solution, programmable NP chip and VRP software platform, with high performance, low power consumption, evolutionary and other characteristics, leading SRv6 technology to realize intelligent network connection, can be applied to enterprise WAN core nodes, large enterprise access nodes, campus interconnection and aggregation nodes, and various large-scale IDC network egress. NetEngine40E products lead the technology and stable performance, have won many international gold awards, and are widely deployed in various industries such as electric power, transportation, government, radio and television, and finance.

NetEngine 40E is an award-winning series widely adopted by governments and industries, including electric power, transportation, broadcasting and television, and finance.

Pictures

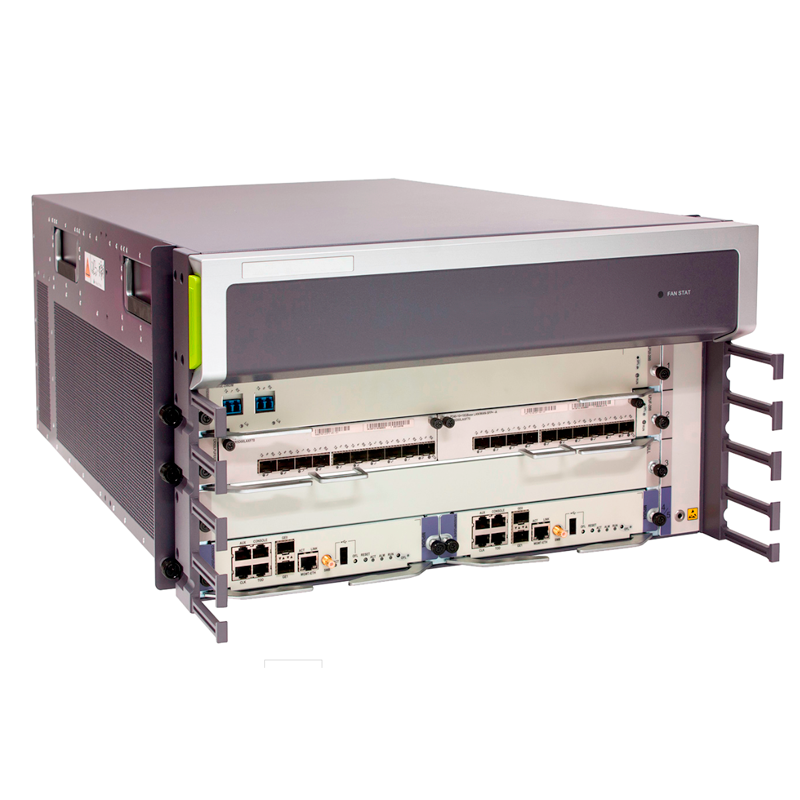

NE40E-X3A 02350FML 40x100/1000Base-X-SFP NetEngine Enterprise Service Router

NE40E-X3A 02350FML 40x100/1000Base-X-SFP NetEngine Enterprise Service Router

Specification


Item Specification
Cabinet installation standards Can be installed in a standard 19" 800 mm-deep cabinet. A Huawei 2.2 m-high N68E cabinet is used by default.
Dimensions without packaging (H x W x D) [mm(in.)]

264 mm x 442 mm x 710 mm (10.39 in. x 17.40 in. x 27.95 in.) (chassis body)

264 mm x 442 mm x 770 mm (10.39 in. x 17.40 in. x 30.31 in.) (chassis body together with cable trays and front and rear attachments)

Chassis height [U] 6U
Weight without packaging [kg(lb)] 37 kg (81.57 lb)
Weight without packaging (full configuration) [kg(lb)] 74.7 kg (164.71 lb)
Typical power consumption (with configuration) [W] 1120 W (fully configured with LPUF-200s)
Typical heat dissipation (with configuration) [BTU/hour] 3633.8 BTU/hour (fully configured with LPUF-200s)
MTBF [year] 22.85 year
MTTR [hour] 0.5 hour
Availability 0.999997502
Power supply mode
  • AC
  • HVDC
Maximum number of power chassis inputs AC&HVDC:(1 channel/PEM)*2 PEM = 2 channels
Rated input voltage [V]

AC:200 V to 240 V

HVDC:240 V

Input voltage range [V]

AC:180 V to 264 V

HVDC:192 V to 288 V

Maximum input current [A]

AC:16 A/single-module

HVDC:14 A/single-module

Maximum input cable size [mm²]

AC:Standard C19 cable

HVDC:2.5 mm²

Front-end circuit breaker/fuse [A]

AC:16 A/single-module

[1T bundle] AC device: 2 PMs, with a total of 2 channels of 16 A

[1T bundle] HVDC device: 2 PMs, with a total of 2 channels of 14 A

Airflow direction Left-to-back airflow.
Noise at normal temperature (acoustic power) [dB(A)] NEBS-compliance (< 78 dBA @ 27°C (80.6°F))
Number of slots 5
Number of service board slots 3
Switching capacity 2.76 Tbit/s
Redundant MPUs 1:1
Redundant power supply 1+1
Redundant fans Support for proper fan operation in case of a single fan failure for a short period at 40°C (104°F)
Long-term operating temperature [°C(°F)] 0°C to 45°C (32°F to 113°F)
Short-term operating temperature [°C(°F)] –5°C to +55°C (23°F to 131°F)
Restriction on the operating temperature variation rate [°C(°F)] ≤ 0.5°C/min (32.9°F/min), non-condensing
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158 °F)
Long-term operating relative humidity [RH] 5% RH to 85% RH, non-condensing
Short-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Storage relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] ≤ 4000 m (13123.36 ft.) (From 1800 m to 4000 m [5905.51 ft. to 13123.36 ft.], the operating temperature of the device decreases by 1°C [1.8°F] for every 220 m [721.78 ft.] increase in altitude.)
Storage altitude [m(ft.)] < 5000 m (16404.2 ft.)
