Layer 2 Network Switch 48x10/100/1000 Ports Gigabit Ethernet Switch WS-C2960S-48TS-S
Layer 2 Network Switch 48x10/100/1000 Ports Gigabit Ethernet Switch WS-C2960S-48TS-S
Specifications
Brand Name :
Cisco
Model Number :
WS-C2960S-48TS-S
Place of Origin :
Beijing, China
MOQ :
2 pieces
Price :
$240.00/pieces 2-49 pieces
Payment Terms :
T/T, Western Union
Delivery Time :
3 working days
Packaging Details :
55*45*22cm
Products Status :
Stock
Ports :
≥ 48
Transmission Rate :
10/100/1000Mbps
Function :
LACP, POE, QoS, SNMP, stackable, VLAN Support
Communication Mode :
Full-Duplex & Half-Duplex
Switch Capacity :
128G
Product Name :
WS-C2960S-48TS-S
Condition :
Brand-new
Power Supply :
Input:AC100-240V 50/60Hz
PoE Ports :
48 Ports
Product Description :
Gigabit Ethernet Network Switch
Warranty :
1 Year
Description

WS-C2960S-48TS-S Overview

The Cisco® Catalyst® 2960-S Series Switches are fixed-configuration Gigabit Ethernet switches (Figure 1) that provide enterprise-class Layer 2 switching for campus and branch access applications. They enable reliable and secure business operations with lower total cost of ownership through a range of innovative features including FlexStack, Power over Ethernet Plus (PoE+), and Cisco Catalyst SmartOperations.

Layer 2 Network Switch 48x10/100/1000 Ports Gigabit Ethernet Switch WS-C2960S-48TS-S

Table 1 shows the Quick Spec of the WS-C2960S-48TS-S.

Product Code WS-C2960S-48TS-S
Enclosure Type Rack-mountable - 1U
Feature Set LAN Lite
Uplink Interfaces Four 1G Small Form-Factor Pluggable(SFP)
Downlink Ports 48 × Ethernet 10/100/1000 ports
Expansion Slot(s) 1 (total) / 1 (free) x Stacking Module
Switching capacity 176 Gbps
Forwarding Rate 74.4 mpps
DRAM 128 MB
Flash Memory 64 MB
Dimensions 44.5 × 38.6 × 4.5 cm
Package Weight 9.19 Kg

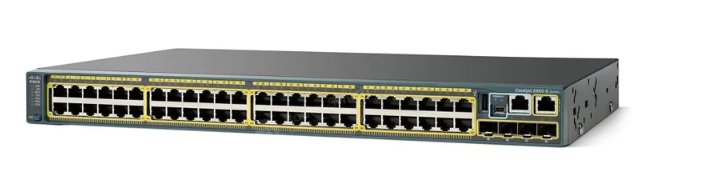

Layer 2 Network Switch 48x10/100/1000 Ports Gigabit Ethernet Switch WS-C2960S-48TS-S

Note:

① Mode Button ⑤ RJ45 Console Port
② 48 × Ethernet 10/100/1000 ports ⑥ USB mini-Type B (console) Port
③ SFP Module Slots ⑦ USB Type A Port
④ Ethernet Management Port

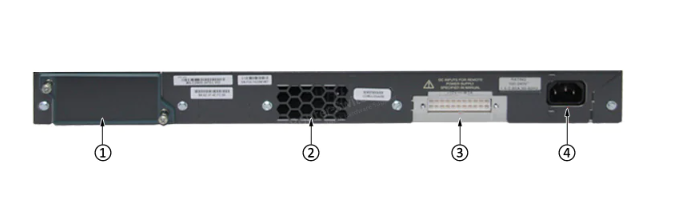

Layer 2 Network Switch 48x10/100/1000 Ports Gigabit Ethernet Switch WS-C2960S-48TS-S

Note:

① 1 (total) / 1 (free) x Stacking Module ③ RPS Connector
② Fan Exhaust

Table 2 shows some accessories of the WS-C2960S-48TS-S.

Models Description
C2960S-STACK Catalyst 2960S FlexStack Stack Module optional for LAN Base
GLC-LH-SM GE SFP, LC connector LX/LH transceiver
GLC-SX-MM D 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM
CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F

Table 3 shows the comparison of similar items.

Models WS-C2960S-48TS-S WS-C2960S-48TS-L
Ports 48 × Ethernet 10/100/1000 ports FP) 48 × Ethernet 10/100/1000 ports FP)
Switching Capacity 176 Gbps 176 Gbps
Uplinks 4 x 1G SFP 4 x 1G SFP
Feature Set LAN Lite LAN Base
Stackable Yes Yes
