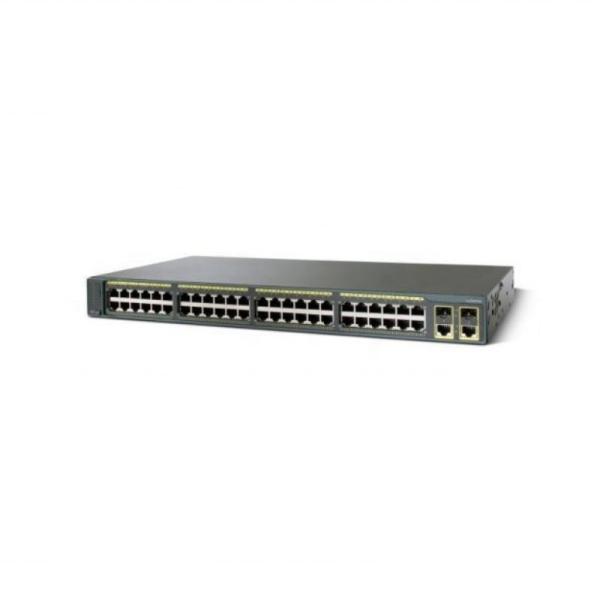

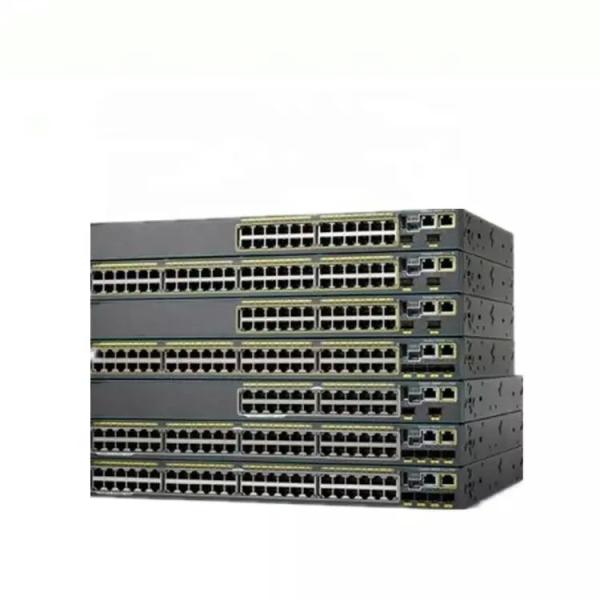

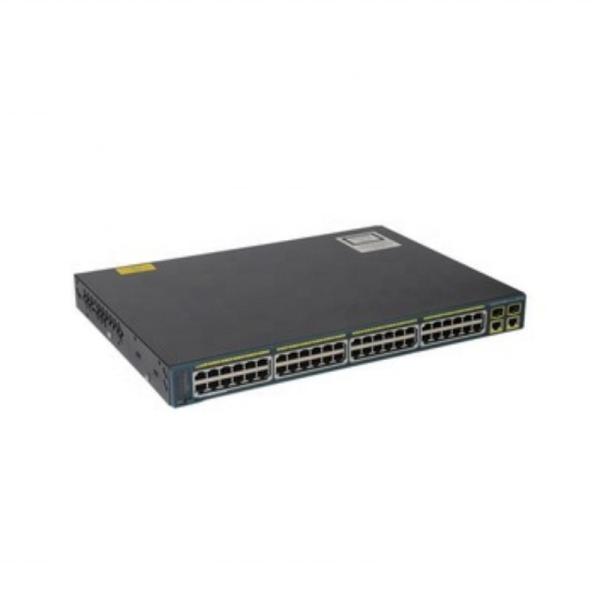

2960S series 48 Ports Gigabit Ethernet PoE network Switch WS-C2960X-48LPD-L
2960S series 48 Ports Gigabit Ethernet PoE network Switch WS-C2960X-48LPD-L
2960S series 48 Ports Gigabit Ethernet PoE network Switch WS-C2960X-48LPD-L
2960S series 48 Ports Gigabit Ethernet PoE network Switch WS-C2960X-48LPD-L
2960S series 48 Ports Gigabit Ethernet PoE network Switch WS-C2960X-48LPD-L
2960S series 48 Ports Gigabit Ethernet PoE network Switch WS-C2960X-48LPD-L
Specifications
Brand Name :
Cisco
Model Number :
WS-C2960X-48LPD-L
Place of Origin :
Beijing, China
MOQ :
2 pieces
Price :
$300.00/pieces 2-49 pieces
Payment Terms :
T/T, Western Union
Delivery Time :
3 working days
Private Mold :
NO
Products Status :
Stock
Ports :
≥ 48
Transmission Rate :
10/100/1000Mbps
Function :
LACP, POE, QoS, SNMP, stackable, VLAN Support
Communication Mode :
Full-Duplex & Half-Duplex
Switch Capacity :
196G
Product Name :
WS-C2960X-48LPD-L
Condition :
Brand-new
Power Supply :
Input:AC100-240V 50/60Hz
PoE Ports :
48 Ports
Product Description :
Gigabit Ethernet Network Switch
Warranty :
1 Year
Package :
Original Box
Description

WS-C2960X-48LPD-L Overview

Cisco Catalyst 2960-X series switch is fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS software features.

2960S series 48 Ports Gigabit Ethernet PoE network Switch WS-C2960X-48LPD-L

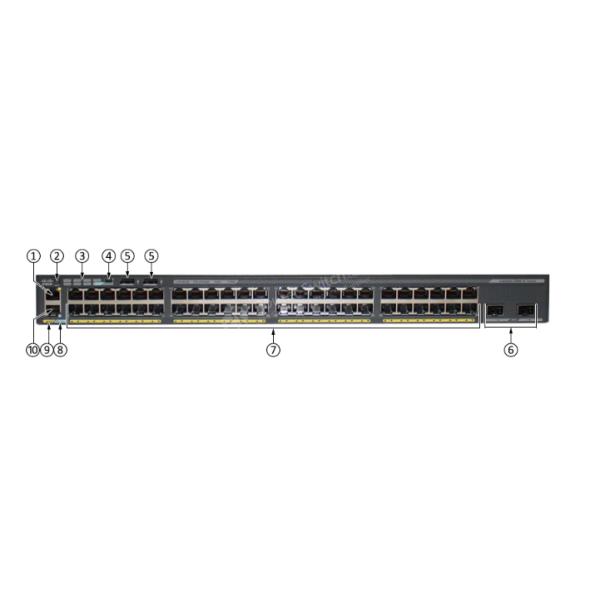

Note:

①Ethernet management port
②Mode button
③Switch LEDs
④USB mini-Type B (console) port
⑤USB Type A ports
⑥SFP module ports
⑦48 x 10/100/1000 ports
⑧CONSOLE LED
⑨MGMT LED
⑩RJ-45 console port

·The Switch LEDs include SYST, STAT, SPEED, RPS, MAST, POE and STACK LEDs.

·Power over Ethernet Plus(PoE+) supports up to 370W of PoE budget for 12 ports with 30W per port or 24 ports with 15.4W per port or 48 ports with 7.4W per port

2960S series 48 Ports Gigabit Ethernet PoE network Switch WS-C2960X-48LPD-L

Note:

①FlexStack-Plus module slot and cover
②Fan Exhaust
③RPS Connector
④ AC power connector

·External RPS supports redundant power.

Table 1 shows the Quick Specs

Product Code WS-C2960X-48LPD-L
Enclosure Type Rack-mountable - 1U
Feature Set LAN Base
Uplink Interfaces 2 x 10G SFP+
Ports 48 x 10/100/1000
Available PoE Power 370W
Maximum stacking number 8
Stack bandwidth 80G
Forwarding Performance 130.9Mpps
Switching Bandwidth 216Gbps
RAM 512 MB
Flash Memory 128 MB
Dimensions 44.5 x cm x 36.8 cm x 4.5 cm
Package Weight 10.65 Kg

Table 2 shows some accessories of WS-C2960X-48LPD-L.

Models Description
C2960X-STACK Catalyst 2960-X FlexStack Plus Stacking Module
CAB-STK-E-0.5M Cisco FlexStack Stacking Cables
GLC-LH-SM D Cisco GLC-LH-SM D 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM
GLC-SX-MM D 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM
CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F
CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B

Table 3 shows the comparison of similar items.

Models WS-C2960X-48LPD-L WS-C2960X-48LPS-L
Ports 48 x 10/100/1000 48 x 10/100/1000
Uplinks 2 x 10G SFP+ 4 x 1G SFP
Available PoE Power 370W 370W
FlexStack-Plus Stacking Optional Optional
