Cisco Catalyst 2960-S Series Switch WS-C2960S-24PS-L is outstanding with its Power over Ethernet (PoE) capacity. This model has the Power supply options with 370W total fixed power supplies for POE switches as 12 ports up to 30W per switch port or 24 ports up to 15.4W per switch port. In addition to this, Cisco WS-C2960S-24PS-L’s 24 PoE ports are also Ethernet 10/100/1000 ports and this device provides new FlexStack switch stacking capability with 4 One Gigabit Ethernet uplink ports with Small Form-Factor Pluggable (SFP) with 20Gbps throughput performance.

Quick Specs

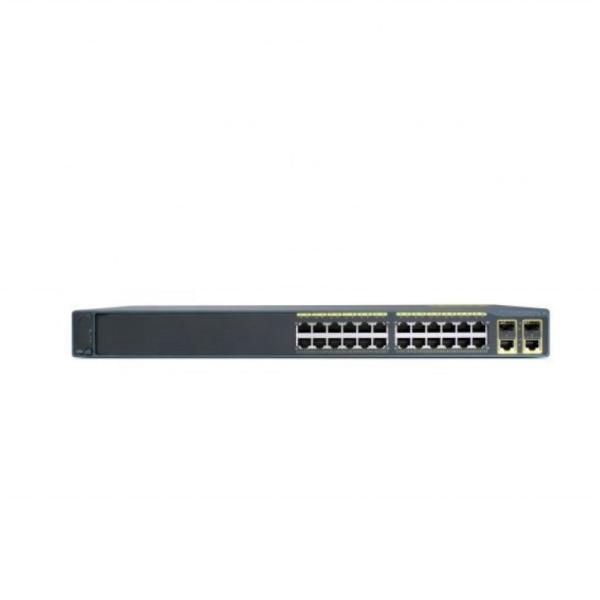

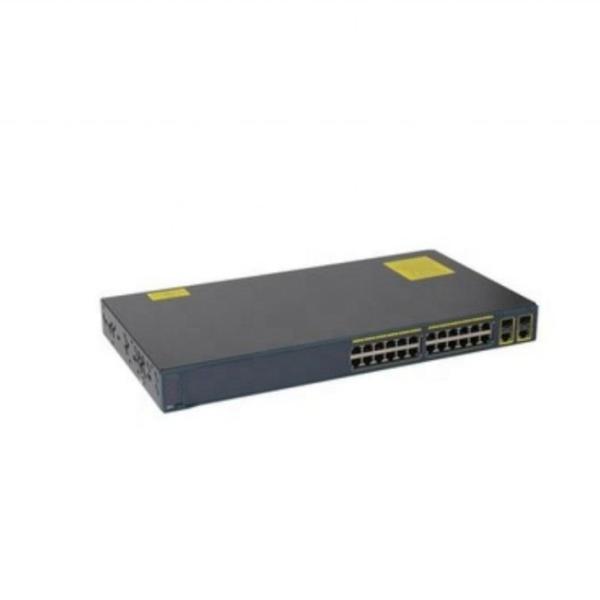

Figure 1 shows the appearance of the WS-C2960S-24PS-L.

Table 1 shows the Quick Spec of the WS-C2960S-24PS-L.

Robust Security

The Cisco Catalyst 2960-Plus Series Switches provide a range of security features to limit access to the network and mitigate threats, including:

● Features to control access to the network, including Flexible Authentication, 802.1x Monitor Mode, and RADIUS Change of Authorization

● Threat defense features including Port Security, Dynamic ARP Inspection, and IP Source Guard

● Private VLAN Edge to provide isolation between switch ports

For more information about Cisco security solutions, visit

Enterprise-Class Quality of Service

The Cisco 2960-Plus Series Switches offer intelligent traffic management that keeps everything flowing smoothly. Flexible mechanisms for marking, classification, and scheduling deliver superior performance for data, voice, and video traffic, all at wire speed. Primary QoS features include:

● Four egress queues per port and strict priority queuing so that the highest priority packets are serviced ahead of all other traffic

● Shaped Round Robin (SRR) scheduling and Weighted Tail Drop (WTD) congestion avoidance

● Flow-based rate limiting and up to 64 aggregate or individual policers per port

● 802.1p class of service (CoS) and differentiated services code point (DSCP) field classification, with marking and reclassification on a per-packet basis by source and destination IP address, MAC address, or Layer 4 TCP/UDP port number
