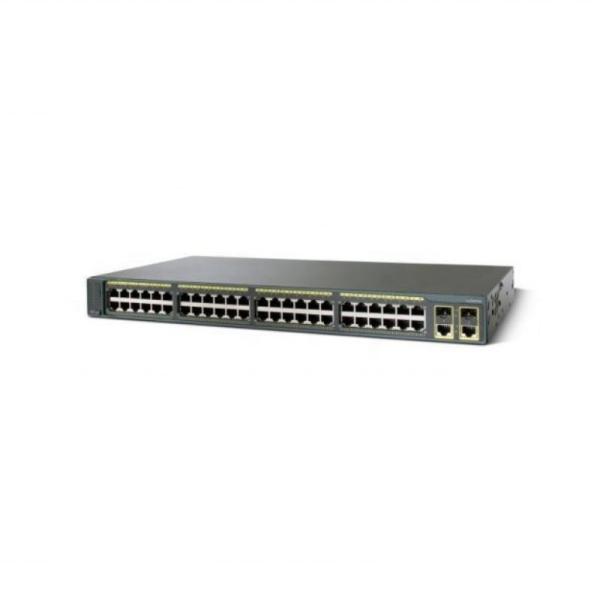

2960XR 48 Ports Gigabit Ethernet Network Switch IP Lite WS-C2960XR-48TS-I
2960XR 48 Ports Gigabit Ethernet Network Switch IP Lite WS-C2960XR-48TS-I
2960XR 48 Ports Gigabit Ethernet Network Switch IP Lite WS-C2960XR-48TS-I
2960XR 48 Ports Gigabit Ethernet Network Switch IP Lite WS-C2960XR-48TS-I
Specifications
Brand Name :
Cisco
Model Number :
WS-C2960XR-48TS-I
Place of Origin :
Beijing, China
MOQ :
2 pieces
Price :
$300.00/pieces 2-49 pieces
Payment Terms :
T/T, Western Union
Delivery Time :
3 working days
Private Mold :
NO
Products Status :
Stock
Ports :
≥ 48
Transmission Rate :
10/100/1000Mbps
Function :
LACP, POE, QoS, SNMP, stackable, VLAN Support
Communication Mode :
Full-Duplex & Half-Duplex
Switch Capacity :
196G
Product Name :
WS-C2960XR-48TS-I
Condition :
Brand-new
Power Supply :
Input:AC100-240V 50/60Hz
PoE Ports :
48 Ports
Product Description :
Gigabit Ethernet Network Switch
Warranty :
1 Year
Package :
Original Box
Description

WS-C2960XR-48TS-I Overview

Cisco Catalyst 2960-X series switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS Software features.

Figure 1 shows the front panel of WS-C2960XR-48TS-I.

2960XR 48 Ports Gigabit Ethernet Network Switch IP Lite WS-C2960XR-48TS-I

Note:

·There are Forty-eight 10/100/1000 Ethernet Gigabit Ports and four 1G SFP uplinks on the front panel.

·Two USB Type A ports and one USB mini-Type B (console) port are on the left.

·This switch offers one RJ-45 console port and one Ethernet management port on the left of the front panel.

Figure 2 shows the back panel of WS-C2960XR-48TS-I.

2960XR 48 Ports Gigabit Ethernet Network Switch IP Lite WS-C2960XR-48TS-I

Note:

①FlexStack-Plus module slot and cover
②Power supply slot (with blank module)
③AC OK LED
④PS OK LED
⑤AC power connector on the power supply module

Table 1 shows the Quick Specs.

Product Code WS-C2960XR-48TS-I
Enclosure Type Rack-mountable - 1U
Feature Set IP Lite
Uplink Interfaces 4 x 1G SFP
Ports 48 x 10/100/1000 Ethernet Gigabit ports
Forwarding Bandwidth 108Gbps
Maximum stacking number 8
Stack bandwidth 80G
Switching Bandwidth 216Gbps
RAM 512 MB
Flash Memory 128 MB
Dimensions 44.5 cm x 40.8 cm x 4.45 cm
Package Weight 17.49 Kg

Table 2 shows some accessories of WS-C2960XR-48TS-I.

Models Description
C2960X-STACK Catalyst 2960-X FlexStack Plus Stacking Module
CAB-STK-E-0.5M Cisco FlexStack Stacking Cables
GLC-LH-SM D Cisco GLC-LH-SM D 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM
GLC-SX-MM D 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM
CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F
CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B

Compare to Similar Items

Table 3 shows the comparison of similar items.

Models WS-C2960XR-48TS-I WS-C2960XR-48TD-I
Ports 48 x 10/100/1000 Ethernet Gigabit ports 48 x 10/100/1000 Ethernet Gigabit ports
Uplinks 4 x 1G SFP 2 x 10G SFP+
Feature Set IP Lite IP Lite
FlexStack-Plus Stacking Optional Optional
