Cisco Original 2960 series with 24 Ethernet 10/100 PoE Ports Switch WS-C2960-24PC-S
Cisco Original 2960 series with 24 Ethernet 10/100 PoE Ports Switch WS-C2960-24PC-S
Cisco Original 2960 series with 24 Ethernet 10/100 PoE Ports Switch WS-C2960-24PC-S
Cisco Original 2960 series with 24 Ethernet 10/100 PoE Ports Switch WS-C2960-24PC-S
Cisco Original 2960 series with 24 Ethernet 10/100 PoE Ports Switch WS-C2960-24PC-S
Cisco Original 2960 series with 24 Ethernet 10/100 PoE Ports Switch WS-C2960-24PC-S
Specifications
Brand Name :
WS-C2960-24PC-S
Model Number :
WS-C2960-24PC-S
Place of Origin :
Beijing, China
Packaging Details :
New original packaging
Supply Ability :
50 Piece/Pieces per Day
MOQ :
2 pieces
Price :
$310.00/pieces 2-49 pieces
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Delivery Time :
3-5days
Private Mold :
NO
Products Status :
Stock
Ports :
24
Transmission Rate :
10/100/1000Mbps
Function :
LACP, POE, QoS, SNMP, stackable, VLAN Support
Communication Mode :
Full-Duplex & Half-Duplex
Switch Capacity :
128G
Product Name :
WS-C2960-24PC-S
Condition :
Brand-new
Power Supply :
Input:AC100-240V 50/60Hz
PoE Ports :
24 Ports
Product Description :
Gigabit Ethernet Network Switch
Warranty :
1 Year
Description
Product Description

WS-C2960-24PC-S Overview

WS- C2960-24PC-S is one of the Cisco Catalyst 2960 Series switches. This series support voice, video, data, and highly secure access. They also deliver scalable management as your business needs change. The Common Features are included: Enhanced security including Cisco TrustSec for providing authentication, access control, and security policy administration, Multiple Fast or Gigabit Ethernet performance options, Cisco EnergyWise for power management, Scalable network management.

Quick Specs

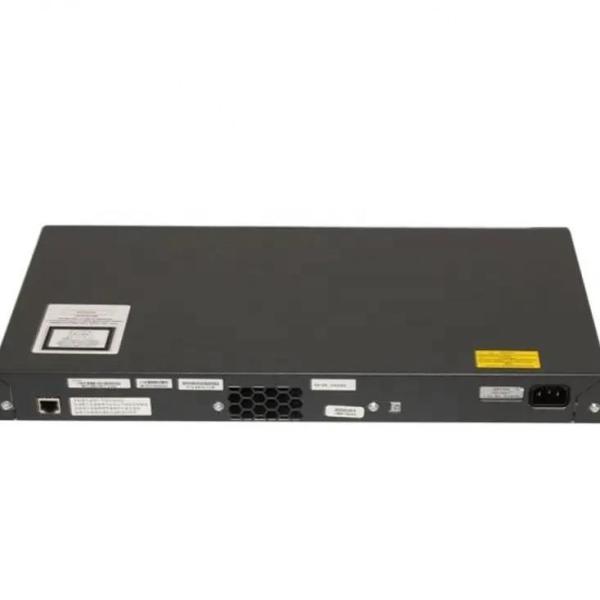

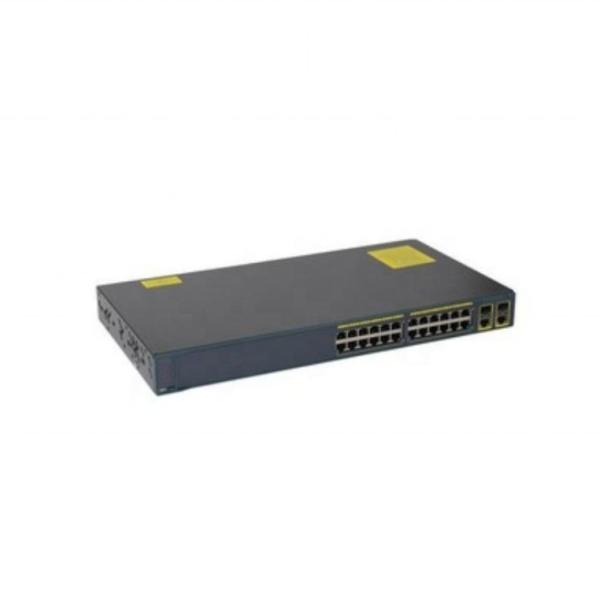

Figure 1 shows the appearance of the WS-C2960-24PC-S.

Cisco Original 2960 series with 24 Ethernet 10/100 PoE Ports Switch WS-C2960-24PC-S

Table 1 shows the Quick Spec of the WS-C2960-24PC-S.

Product Code WS-C2960-24PC-S
Enclosure Type Rack-mountable - 1U
Feature Set LAN Lite
Uplink Interfaces 2 dual-purpose (10/100/1000 or SFP) ports
Ports 24 x Ethernet 10/100 PoE ports
Throughput 6.5 Mpps
Backplane Capacity 16 Gbps
DRAM 64 MB
Dimensions 1.73 x 17.5 x 9.3 in.
Package Weight 9.19 Kg

WS-C2960-24PC-S Specification
Type Fixed
Topology Ethernet (10/100BaseTX)
Ethernet (10/100/1000BaseT)
Gigabit Ethernet (SFP)
Maximum Port density 24 10/100 PoE ports
Uplinks 2 dual-purpose uplinks (each dual-purpose uplink port has 1 10/100/1000 Ethernet port and 1 SFP-based Gigabit Ethernet port, 1 port active)
Modular/Expansion Slots n/a
Architecture Layer 2 Switching (basic connectivity), Voice Enabled
Form Factor Fixed, Rack Mountable, Standalone/Clustering
Dimensions 1.73 x 17.5 x 13 in.
DRAM 64 MB
Features
Specialized Service Modules n/a
Security
DHCP Snooping N/A
Dynamic ARP Inspection N/A
IP Source Guard N/A
RP Rate Limiters N/A
TCP Intercept N/A
802.1x Yes
Port Security Yes
Dynamic VLANs Yes
Private VLANs N/A
Private VLAN Edge Yes
Secure Shell Yes
SNMPv3 Yes
Unicast RPF N/A
ACLs (L2-L4) N/A
Kerberos Yes
TACACS+ Yes
RADIUS Yes
High Availability / Resilliency
Hardware Redundancy External Redundant Power Supply
High Availability/Resilliency PVST, Broadcast Suppression, Unicast Suppression, Mulitcast Suppression, Spanning Tree, Portfast, Uplink Fast, Backbone Fast, 802.1s, 802.1w
Management
Management features SPAN, RSPAN, CiscoView, Cisco Discover Protocol (CDP), Virtual Trunking Protocol (VTP), Telnet Client, BOOTP, TFTP, CiscoWorks, CWSI, RMON, SNMP, Clustering, Web-Based Management
Scalability
WAN Interface Support n/a
Throughput 6.5 Mpps
Backplane Capacity 16 Gbps
Number of VLANs 255
QOS / VoiceMulticast / Multimedia
Voice Services Yes
IPv6 Support N/A
WRR N/A
QoS - Policing N/A
QoS - Scheduling Yes
802.1p Yes
802.1Q Yes
ISL N/A
CGMP N/A
DSCP N/A
L2 -L4 QOS ACLs N/A
PIM N/A
DMRP N/A
IGMP Yes
IGMP Snooping Yes
QOS - Multiqueues Yes
QOS - Marking Classification N/A
QPM N/A
Power over Ethernet Yes
Multilayer QOS / Security
Layer 2 Yes

Product Highlights

Cisco Catalyst 2960-Plus switches feature:

● 24 or 48 Fast Ethernet ports

● Small Form-Factor Pluggable (SFP) and 1000BASE-T Gigabit Ethernet uplinks

● IEEE 802.3af-compliant Power over Ethernet (PoE)

● LAN Base or LAN Lite Cisco IOS® Software feature set

● SmartOperations tools that simplify deployment and reduce the cost of network administration

● Cisco EnergyWise technology to manage energy consumed by connected devices

● An enhanced limited lifetime hardware warranty (E-LLW), providing next-business-day replacement

Applications and Benefits

The Cisco Catalyst 2960-Plus Series provides cost-effective, enterprise class Ethernet switching for:

● Branch offices, remote sites, and retail locations

● Conventional desktop workspaces

● Building infrastructure, physical security, and other nontraditional access applications

Benefits of the 2960-Plus include:

● Robust quality of service (QoS) that prioritizes voice and critical business applications

● Flexible security features that can limit access to the network and mitigate threats

● Tools that reduce total cost of ownership through simplified operations and automation

Switch Configurations

Table 1 shows Cisco Catalyst 2960-Plus Series configurations.
