Specifications
Model NO. :
WIND-AWF-R
Specification :
Middle Size
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
50 Sets/Year
Description
Hairpin Winder For Starter Motor, Aerospace Motor Armature
WIND-AWF-R Hairpin Winder for Aerospace Motor Armature Middle Size Leading Technology
This hairpin winder is capable of forming hairpins for manufacturing starter armatures and aerospace motor armatures. It is suitable for armatures with round copper wire.

(1)Specifications
Power Supply AC 380V
Air Pressure Supply >0.5Mpa
Machine Power 500 kW
Productivity 2.3s/pc
Feeding length 0~250mm
Weight 700KG
Dimension 1700x600x1650mm

(2) Application
Suitable for starter motor, aerospace motor armature to do hairpin coil forming.

(3) Features
Suitable for round wire
Mitsubishi PLC control, colorful touch screen

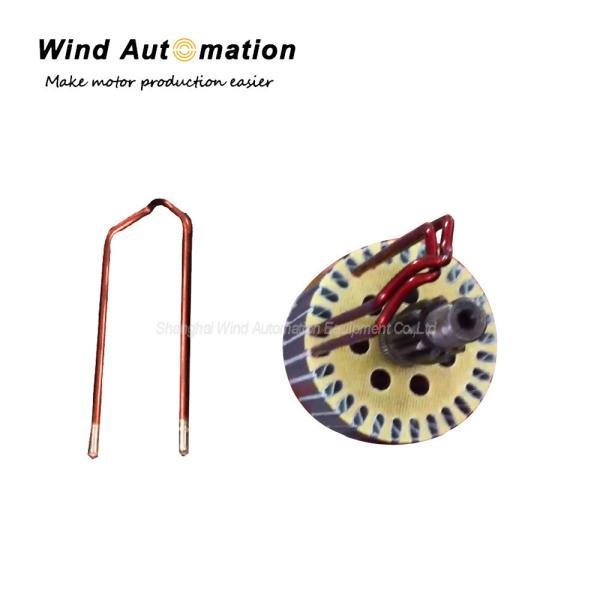

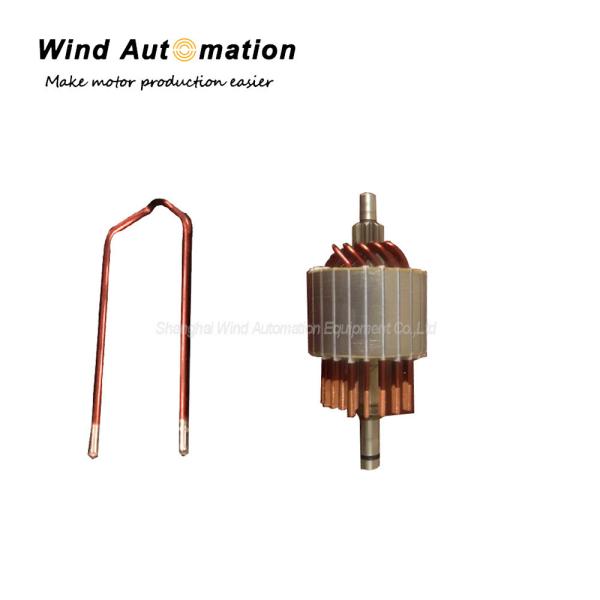

Automatically turn single bare copper wire into formed hairpin coil
High efficiency, automation and productivity, 2.3s/pc
Capable of producing hairpins with customized twisting angle
One operator is quite enough to operate this machine

(4)Machine configuration
Mitsubishi PLC Control
WEINVIEW touch screen
Airtac pneumatic unit
SPG enamel remover
Schneider electric components
