Specifications
Model NO. :
WIND-AWF-R
Specification :
Middle Size
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
50 Sets/Year
Description
Automatic Hair Pin Forming Machine for Auto Industry Aerospace
WIND-AWF-R Middle Size Automatic Hair Pin Forming Machine for Aerospace Manufacturing

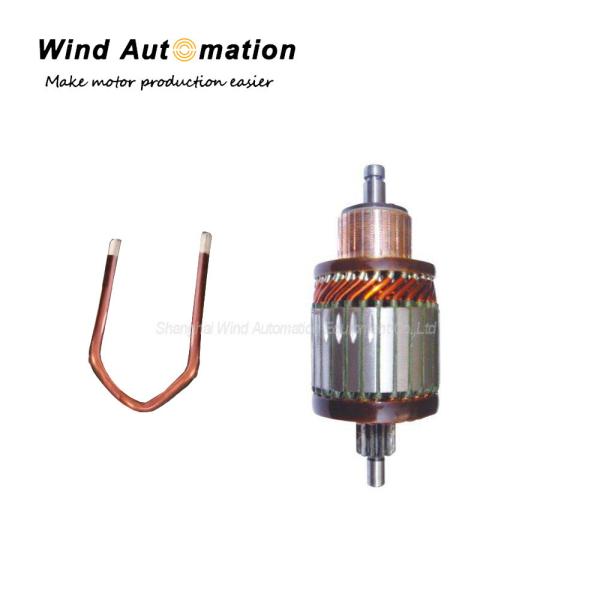

This hairpin forming machine can automatically turn single round bare wire into haripin coil. It integrates several machine stations in one automatic machine as follows: dereeler, straightening station, feeder, end forming station, S-forming station, U-bending station, cut-off station, twisting station.

(1) Application

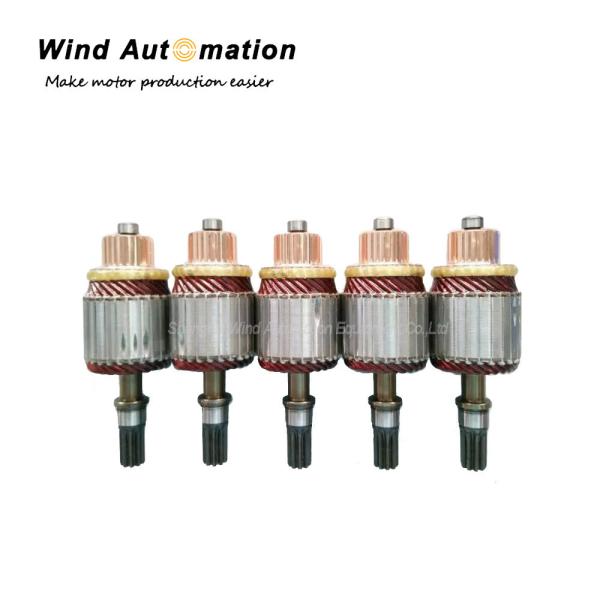

Suitable for starter motor, aerospace motor armature to do haripin coil forming.

(2)Specifications
Power Supply AC 380V ±10% 50Hz
Air Pressure Supply 0.5~0.7Mpa
Machine Power about 2 kW
Productivity 20-30 pc/min
Feeding length 150~400mm
Dimension 2500x810x1600mm

(3) Features
Wide application---meets all requirements of the Automotive Industry
Able to produce hairpins for armature with skewed slots
Mitsubishi PLC control, colorful touching screen
High repeatability of the hairpin's shape and dimensions
High efficiency, automation and productivity
Capable of producing hairpins with customized twisting angle
