Specifications
Model NO. :
WIND-AWF-R
Specification :
Middle Size
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
50 Sets/Year
Description

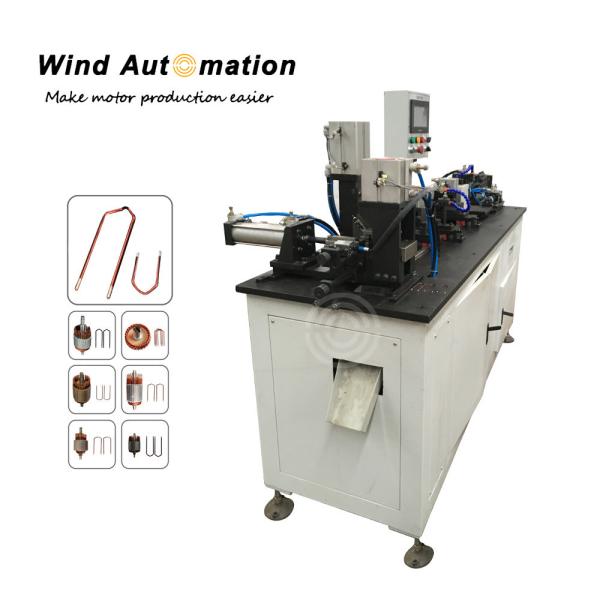

BSG Motor Armature Hairpin Forming Machine
Middle Size Bsg Motor Armature Hairpin Forming Machine 50 Sets/Year

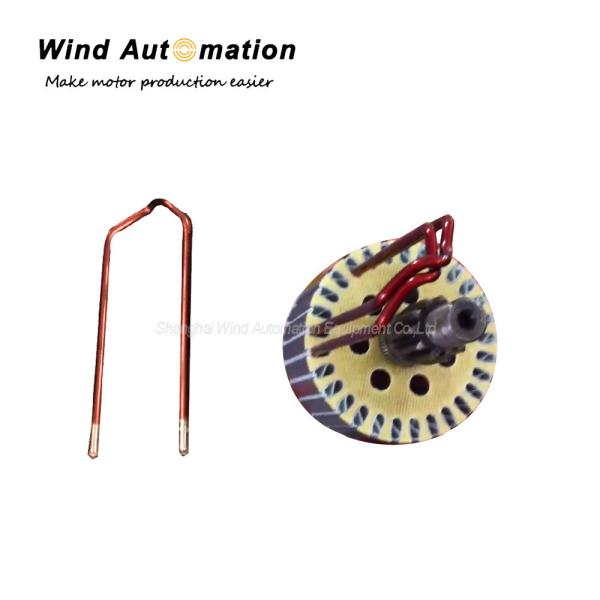

This hairpin forming machine is used to form copper wire into coil which can be ready to insert into armature body. During forming, one operator is quite enough to operate this machine.

(1) Features
Suitable for round wire
Mitsubishi PLC control, colorful touch screen
Automatically turn single bare copper wire into formed hairpin coil
High efficiency, automation and productivity, 2.3s/pc
Capable of producing hairpins with customized twisting angle
One operator is quite enough to operate this machine

(2)Specifications
Power Supply AC 380V
Air Pressure Supply >0.5Mpa
Machine Power 500 kW
Productivity 2.3s/pc
Feeding length 0~250mm
Weight 700KG
Dimension 1700x600x1650mm

(3) Application
Suitable for starter motor, aerospace motor armature to do hairpin coil forming.

(4)Machine configuration
Mitsubishi PLC Control
WEINVIEW touch screen
Airtac pneumatic unit
SPG enamel remover
Schneider electric components
