100 Sets/Year WIND-ABM-2 Micro Motor Rotor Balancing Machine for Small Armatures
100 Sets/Year WIND-ABM-2 Micro Motor Rotor Balancing Machine for Small Armatures
Specifications
Model NO. :
WIND-ABM-2
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Description

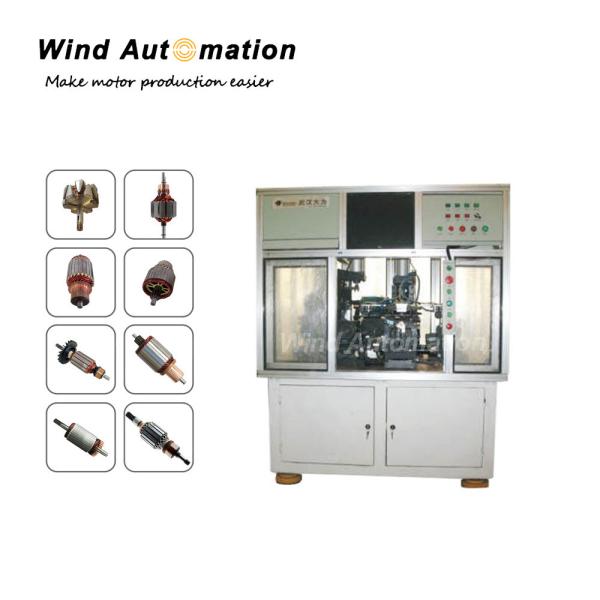

2 Working Station Micro Motor Rotor Small Armature Balancing Machine
100 Sets/Year WIND-ABM-2 Micro Motor Rotor Balancing Machine for Small Armatures
This balancing machine adopts armature weight balancing removing method. It can do automatic measure, and weight removing. Loading and unloading should be done by manual.

The initial unbalance is in accordance with difference of rotor radius and cutting depth, for example, the max single cut on diameter of 32mm≤500mg, the max single cut on diameter of 40mm ≤800mg.

(1)Specification
Working station 2
Balancing speed 1600-2100rpm
Milling method R-shape or V-shape
Power AC380V
Air supply 0.4~0.6Mpa
Rotor weight Less than 1.6KG
Stack height 20-70mm
Rotor diameter 20-45mm/40-70mm
Max removing volume >=90%
One time cutting qualified rate >=90%
Imbalance repeat measuring precision ≤0.5g.mm (±5mg)
Fixture changing time Same armature O.D ≤5 min
Different armature O.D ≤ 15 min
Dimension 1300x 1000 x 1300 mm

(2) Application
It is suitable for home appliance, car and power tool motor armature.
