Specifications
Model NO. :
WIND-DAB-5Z
Specification :
Middle Size
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Description

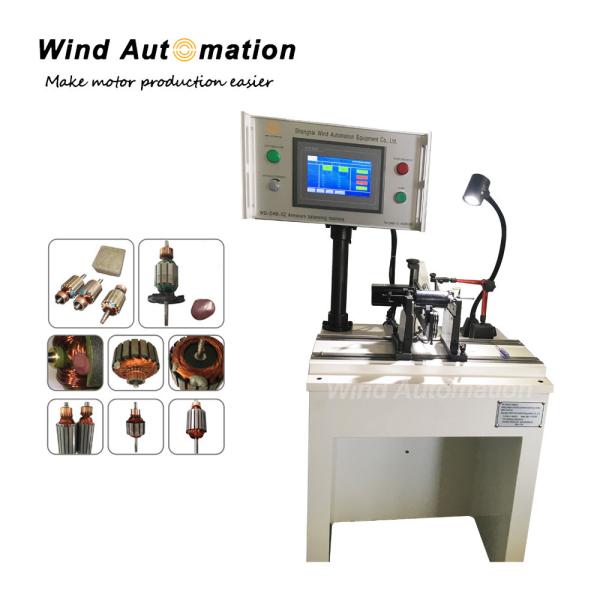

Dynamic Weight Adding Armature Balancing Machine
Advanced WIND-DAB-5Z Dynamic Weight Adding Armature Balancing Machine for Middle Size
This balancing machine uses weight adding method to do balacing. The electric cabinet of this machine is with advanced electrometrical circuit, excellent layout, and its linear and digital integrated circuit is universal series in DIP (dual in-line package).

(1)Specification
Armature stack length 10~200mm
Armature OD Max 260mm
Shaft OD 3-40mm
Armature weight 0.1~5Kg
Unbalancing value 0~600g.mm/kg
Min residual unbalance value ≤0.1g·mm/kg
Driving method Belt
Balancing speed 500-5000r/min
Power supply 220V
Power 200W

(2)Feature
Auto positioning
Weight adding balancing method
Unbalancing weight measurement before balancing
No skilled operator need

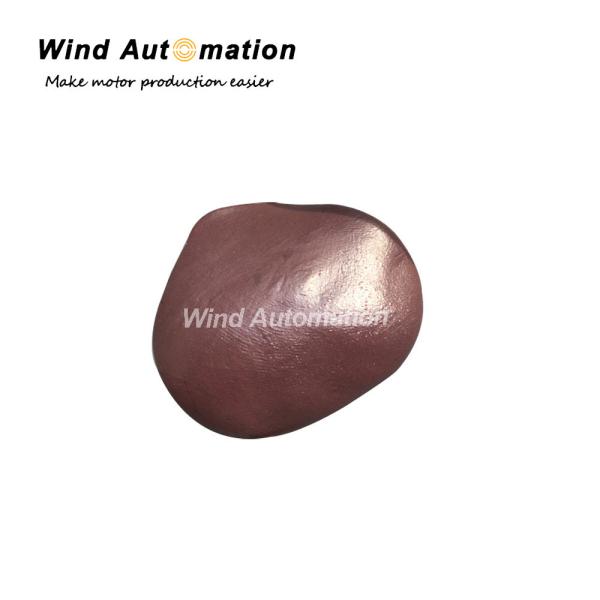

Adding Balancing mud manually
Fast and easy readjustment
Provide customized service
Wide application and strong applicability
V-shape support block

(3)Maintenance
1)Electrometric box should be put in ventilated, dry and clean place. Don't allow nearby strong electromagnetic interference. Charge the machine 1-2 times per month, 1-2 hours each time on self-checking situation provided the machine is not frequently used. Cover the machine by dust-proof shield during the time out of operation. Put desiccant in the electrometric box and replace it regularly provided the machine is put in the humid area.
2)Check every index of the electrometric box and accuracy of the complete machine. Assign sole operator to keep and operate it.
3)Note: Don't adjust any potentiometer.

(4)Working station
Advanced WIND-DAB-5Z Dynamic Weight Adding Armature Balancing Machine for Middle Size
Advanced WIND-DAB-5Z Dynamic Weight Adding Armature Balancing Machine for Middle Size


Advanced WIND-DAB-5Z Dynamic Weight Adding Armature Balancing Machine for Middle Size
Advanced WIND-DAB-5Z Dynamic Weight Adding Armature Balancing Machine for Middle Size
Advanced WIND-DAB-5Z Dynamic Weight Adding Armature Balancing Machine for Middle Size
