WIND-BC5 Starter Motor Armature Weight Removing Machine for 100 Sets/Year Production
WIND-BC5 Starter Motor Armature Weight Removing Machine for 100 Sets/Year Production
Specifications
Model NO. :
WIND-BC5
Specification :
Middle Size
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Description

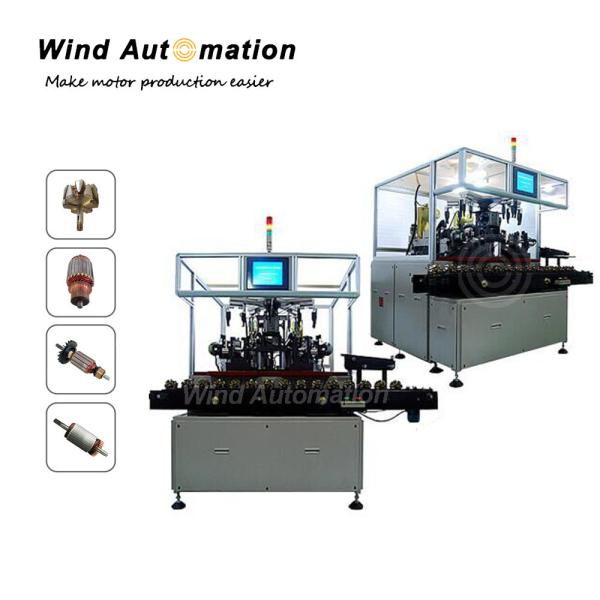

Starter Motor Armature Weight Removing Machine
WIND-BC5 Starter Motor Armature Weight Removing Machine for 100 Sets/Year Production
This machine has a compact design for easy and safe handling. It will automatically test balancing volume before and after balancing. Twice testing gurantees balancing accuracy.

(1)Feature
Suitable for the majority of armatures
Weight removing method
Each time reset the machine before power off.
With mechanical arm and feeding conveyor
5 working stations, 1 for loading and unloading, 2 for balancing, 2 for testing
High quality level of the balancing process
Twice testing guarantees balancing accuracy
Servo drive systems providing high positioning accuracy while cutting
Compact design which allows easy and safe handling

(2)Specification
Working station 5
Armature OD 40-60mm
Stack height 15-60mm
Armature weight <1.6 KG
Cutting method R-shape cutter
Balancing speed 1000-2200rpm
Cycle time 10-12s
Initial unbalance According to armature radius and cutting depth
Air supply 0.4~0.6Mpa
Power supply AC380V
Dimension 2000 x1700x1800 mm

(3)Application
The 5 stations fully automatic armature balancing machine is suitable for majority of armatures, like DC motor, universal motor used for home appliance, car and power tool motor armature.


WIND-BC5 Starter Motor Armature Weight Removing Machine for 100 Sets/Year Production
WIND-BC5 Starter Motor Armature Weight Removing Machine for 100 Sets/Year Production
WIND-BC5 Starter Motor Armature Weight Removing Machine for 100 Sets/Year Production
