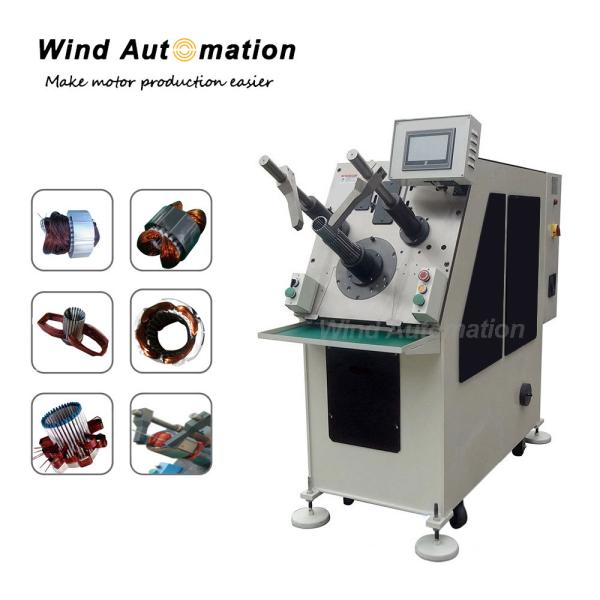

Stator Coil Winding Inserting Machine How to Insert Coil
Stator Coil Winding Inserting Machine How to Insert Coil
Specifications
Model NO. :
WIND-90-CWI
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Description
Stator Coil Winding Inserting Machine How to Insert Coil
Stator Coil Winding Inserting Machine How to Insert Coil

This machine is suitable for stator coils both copper wire and aluminium wire to do coil insertion process. It covers wide range, suitable for stator with 8 to 48 slots.


(1) Feature
Wide application
Manual loading and unloading
Can be customized accordingly
Parameter of different models can be edited, modified and displayed
Quick and easy readjustment for other types of stator
Copper wire and aluminium wire are both applicable
After insertion, no deformation of stator, lamination, or insulation paper
Easy for operation, No skilled operator required

(2) Application
This type of machine is suitable for various types of AC motor, induction motor stators.

(3) Specification

Stack length Max 120mm
Stator ID 20~100mm
Stator OD Max 160mm
Tooling stroke Max 70mm
Suitable wire material Copper/Aluminium wire
Slot number 8~48slots
Power supply 380V 50/60HZ
Weight 850KG
Dimension 1850x650x1700mm

Stator Coil Winding Inserting Machine How to Insert Coil
Stator Coil Winding Inserting Machine How to Insert Coil
Stator Coil Winding Inserting Machine How to Insert Coil

Stator Coil Winding Inserting Machine How to Insert Coil
