Specifications
Model NO. :
WIND-ASWI
Transport Package :
Wooden Case
Specification :
Middle Size
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Description
Generator Stator Winding and Coil Inserting Machine

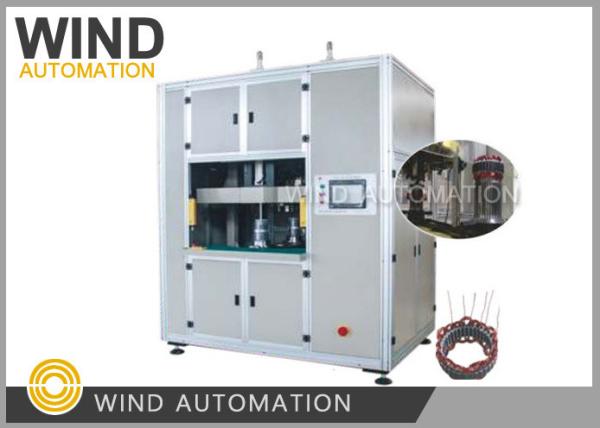

3phase Motor Fully Automatic Stator Winding and Coil Inserting Machine
The machine has two working stations, one for coil winding, the other for coil and wedge inserting. Winding and inserting process are all controlled by servo motor. Auto and jog mode are avaiable.

(1)Features
Two working stations
Easy loading and unloading
High automation and productivity
Fully programmable operation
Parameter adjustable according to different stators
Applied as a stand-alone machine or integrated into a production line
(2)Machine configuration
Power supply AC 380V 50HZ
Air pressure 0.5~0.7 MPa
Total power 8KW
Winding speed 10~120r/min
Slots 36/48
Wire range 0.15~1.6mm
Stack length 20~130mm
Dimension 1800mmx1900mmx2500mm
