Stator Rectangle Wire Forming Machine for Hybrid Automobile Car Motor
Middle Size Stator Rectangle Wire Forming Machine for Hybrid Automobile Car Motor 100 Sets/Year

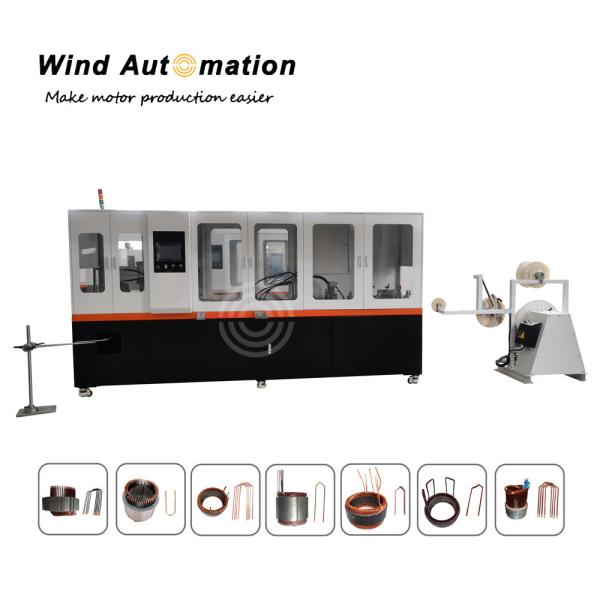

This Wire Forming Machine is used to produce hairpin coils. It can automatically turn single rectangle bare copper wire into haripin shape coil. During hairpin winding, one operator is quite enough to operate this machine.

(1)Specifications
Power supply AC 380V 50Hz
Air pressure supply ≥0.5MPa
Productivity 4-5s/pc (wire length 300mm)
Wire feeding length Servo adjustable
Weight 1200KG
Dimension 3200x700x1950mm

(2) Application

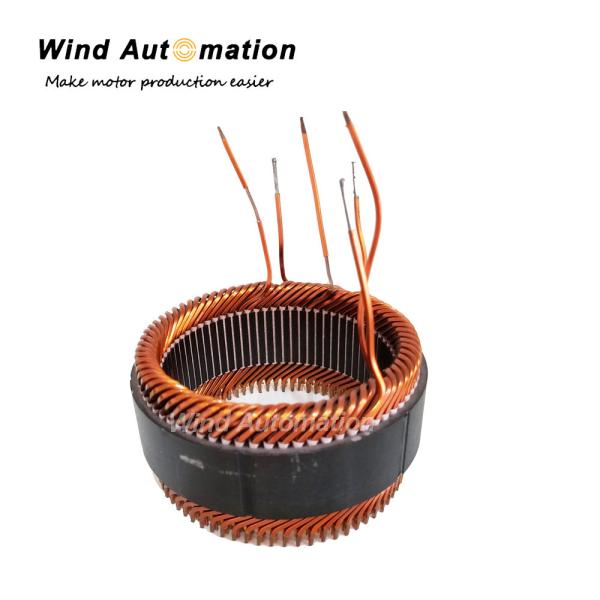

This machine is designed for manufacturing hairpins for hybrid car motor, hybrid automobile car motor or hybrid vehicle motor stators.

(3) Features
Capable of producing conductor with customized size
Mitsubishi PLC control, colorful touching screen
Automatic hairpin forming process
High efficiency, automation and productivity
High repeatability of the conductor's shape and dimensions
Automatic operation as a single unit or as a part of an automatic line
Integrated several machine stations in one automatic machine
Precisely machined high quality steel tools
Auto dust collection system

(4)Machine configuration
Mitsubishi PLC and servo motor
Weinview touch screen
AIRTAC or SMC pneumatic components
HIWIN linear guide
Schneider electrical components
Industrial vacuum cleaner
Dereeler
