Specifications
Specification :
Middle Size
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Description
Hairpin Coil Shaping Machine for New Energy Motor
Hairpin Coil Shaping Machine for New Energy Motor

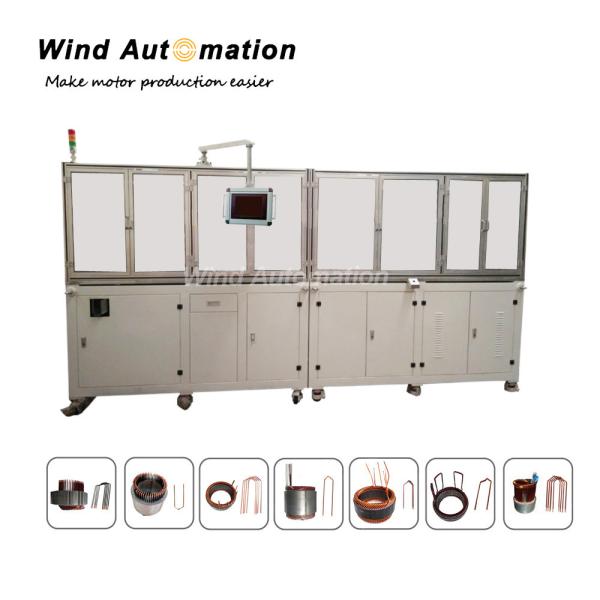

This hairpin coil shaping can turn flat shape wire into hairpin coils. Machine is easy to operate, one operator is quite enough.

(1) Application

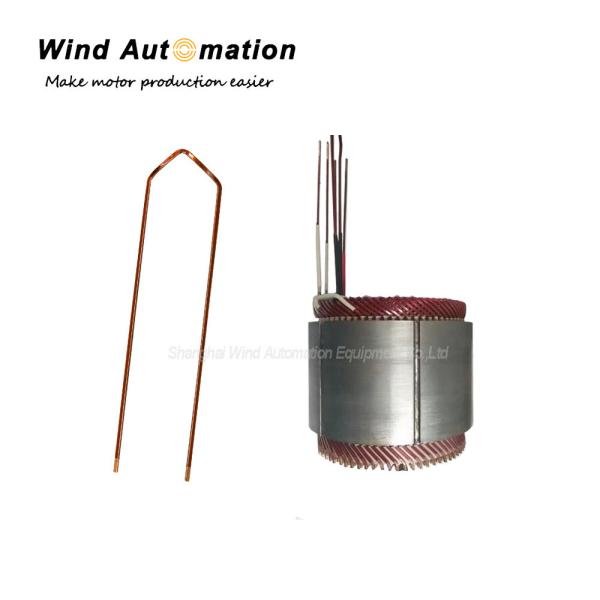

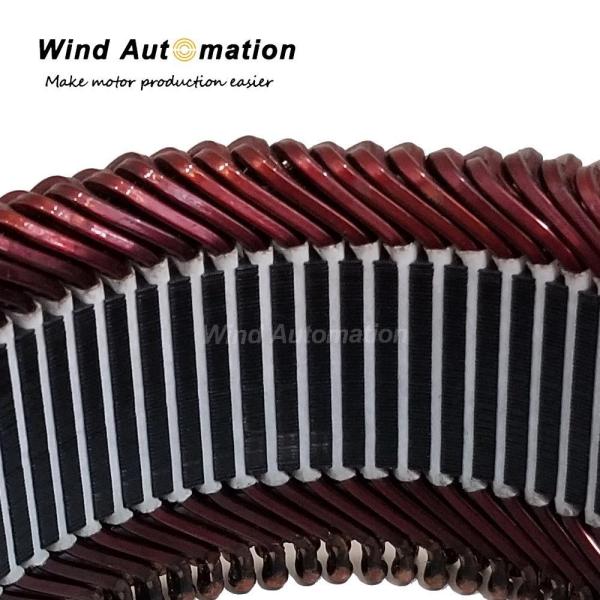

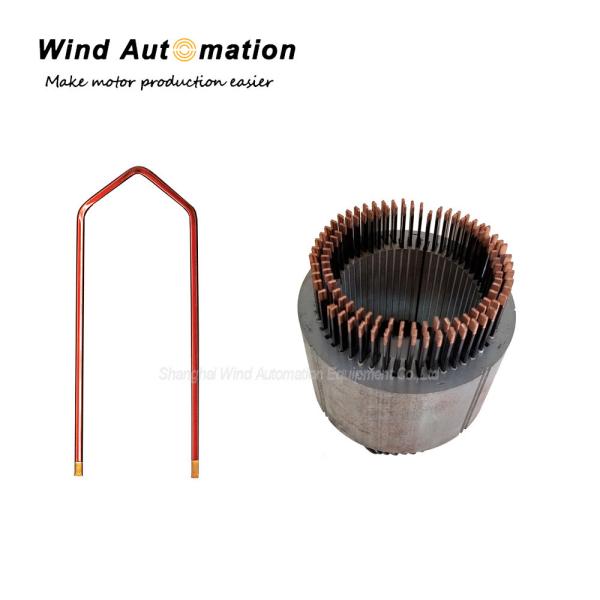

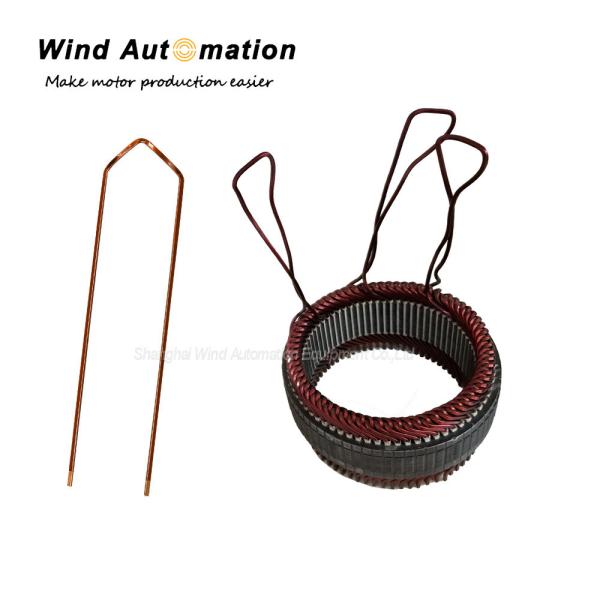

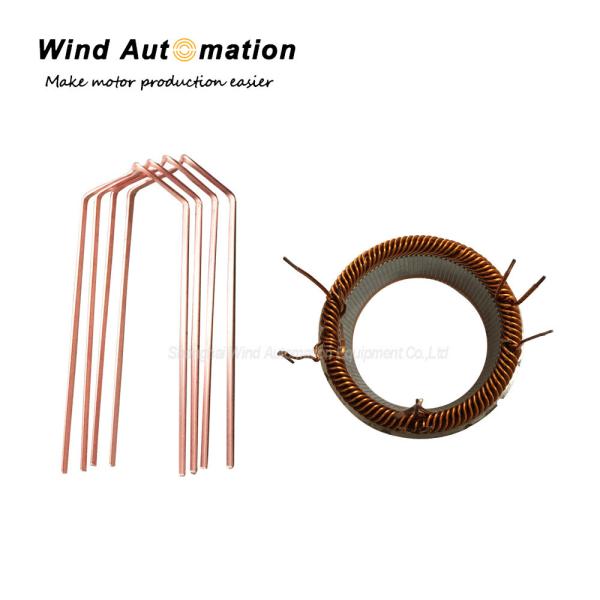

This machine is designed for manufacturing hairpins for hybrid car motor, hybrid automobile car motor or hybrid vehicle motor stators.

(2)Specifications
Power supply AC 380V 50Hz
Air pressure supply ≥0.5MPa
Productivity 4-5s/pc (wire length 300mm)
Wire feeding length Servo adjustable
Weight 1200KG
Dimension 3200x700x1950mm

(3) Features
Capable of producing conductor with customized size
Mitsubishi PLC control, colorful touching screen
Automatic hairpin forming process
High efficiency, automation and productivity
High repeatability of the conductor's shape and dimensions
Automatic operation as a single unit or as a part of an automatic line
Integrated several machine stations in one automatic machine
Precisely machined high quality steel tools
Auto dust collection system

(4)Machine configuration
Mitsubishi PLC and servo motor
Weinview touch screen
AIRTAC or SMC pneumatic components
HIWIN linear guide
Schneider electrical components
Industrial vacuum cleaner
Dereeler
