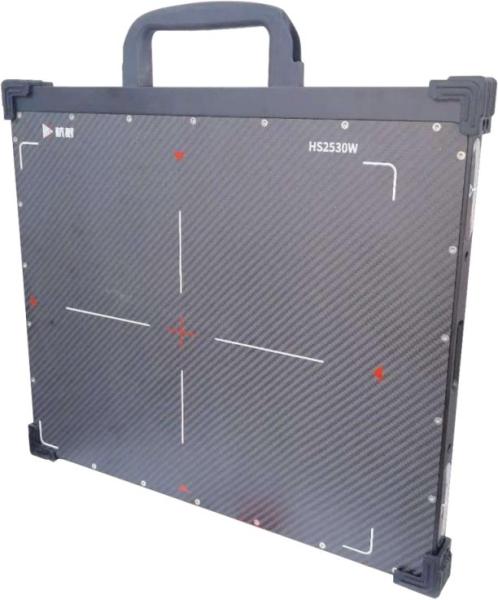

100um A-Si TFT Flat Panel Digital Detector For Industrial Inspection HS-2530W
100um A-Si TFT Flat Panel Digital Detector For Industrial Inspection HS-2530W
Specifications
Brand Name :
HUIWEI
Model Number :
HS-2530W
Certification :
ISO 9001, CE
Place of Origin :
ZHEJIANG, CHINA
MOQ :
1 set
Price :
12000usd/set
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
500sets within one month
Delivery Time :
15working days
Packaging Details :
Standard export plywood package
Pixel matrix :
2548×3048
Sensor type :
a-Si
Operating temperature :
-10~55℃
Dimensions :
354×350.5×20
Cooling Method :
Air cooling
Pixel size :
100 μm
Weight :
4.5kg
AD conversion bit number :
16bit
X-ray energy range :
40kV-300kV
Protection level :
IP54
Description

PRODUCT DESCRIPTION

100um A-Si TFT Sensorflat Panel Detector For Industrial Inspection HS-2530W

Main introduction:

HS-2530W is a flat panel detector for industrial inspection. It uses 100um a-Si TFT sensor technology and has high resolution and good contrast. The product is designed with industrial standards, durable, waterproof and dustproof level reaches IP54, with high radiation resistance, high environmental adaptability and high reliability. We provide SDK software development kit to support Windows operating system, which is convenient for users to configure parameters and integrate components, perform image correction, acquisition and recognition observation. HS-2530W is suitable for industrial fields such as non-destructive testing of pipeline welds and iron and aluminum castings.

HS-2530W Specifications

Sensor type

a-Si

Dimensions

354×350.5×20

Scintillator type

Cesium iodide/Perovskite

Weight

4.5kg

Effective imaging area

254.8x304.8 mm

Operating temperature

-10~55℃

Pixel matrix

2548×3048

Storage temperature

-20~60℃

Pixel size

100 μm

Operating humidity

5~90% RH (non-condensing)

Spatial resolution

5.0LP/mm

Storage humidity

5~95% RH (non-condensing)

AD conversion bit number

16bit

X-ray energy range

40kV-300kV

Image output time

1s

Protection level

IP54

Exposure time

350ms-180s

Battery life

4h

Data interface

Wired: GigE

Service life

5 years

Wireless:802.11 a/g/n

Power consumption

20W

Supply voltage

15VDC

Trigger mode

Soft trigger

Industrial Imaging Performance

Single-wire image quality meter: can identify wire number 13, corresponding to wire diameter 0.2mm

Dual-wire image quality meter: can identify wire pair number D9, corresponding to wire diameter 0.2mm

HS-2530W Battery Specifications

Battery model

HS-BATH55

Output

11.1V--5000mAh

Charging limit voltage

12.6V

Charging limit current

2.5A

Weight

385g

Capacity

55.5Wh

Implementation standard

GB31241-2022

FAQ

1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

1. What service do you provide after sales?
We could provide Online instructions: Real-time support by video-call or voice-chat.
During the warranty time, we can send spare parts for free if any quality problems cause the products’ inactive. Technical guidance is free and ready forever.

3. Can you give a training?
Your technicians can come to our factory for a training.
