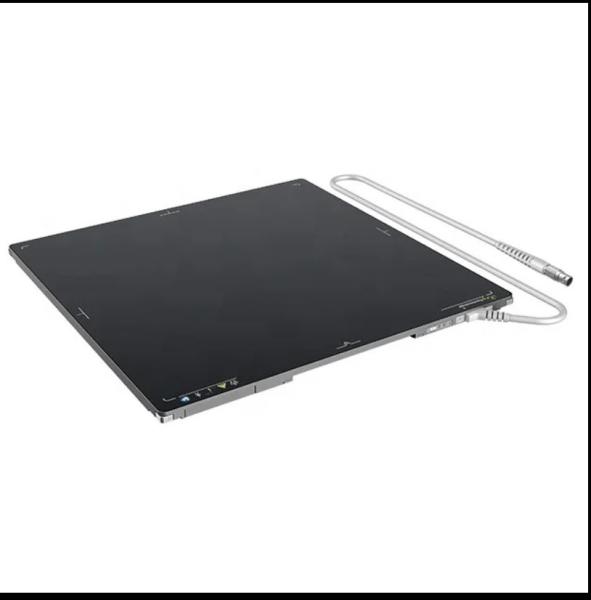

16 Bit Portable Industrial X Ray Flat Panel Detector NDT Machine
16 Bit Portable Industrial X Ray Flat Panel Detector NDT Machine
Specifications
Brand Name :
HUIWEI
Model Number :
HS-2530W
Certification :
ISO 9001, CE
Place of Origin :
ZHEJIANG, CHINA
MOQ :
1 set
Price :
12000usd/set
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
500sets within one month
Delivery Time :
15working days
Packaging Details :
Standard export plywood package
Sensor type :
a-Si
Operating temperature :
-10~55℃
Dimensions :
354×350.5×20
Cooling Method :
Air cooling
Pixel matrix :
2548×3048
Weight :
4.5kg
AD conversion bit number :
16bit
X-ray energy range :
40kV-300kV
Protection level :
IP54
Pixel size :
100 μm
Description

PRODUCT DESCRIPTION

16bit Portable Industrial Flat Panel Metal Detectors NDT Machine

Main introduction:

HS-2530W is an industrial inspection flat panel detector utilizing 100μm a-Si TFT sensor technology, delivering high resolution and excellent contrast. Engineered to industrial standards, this durable model features IP54 waterproof and dustproof ratings, along with high radiation resistance, environmental adaptability, and reliability. A Windows-compatible SDK software development kit is provided to facilitate user parameter configuration, component integration, and image correction, acquisition, and analysis. Ideal for industrial applications like non-destructive testing of pipeline...

HS-2530W Specifications

Sensor type

a-Si

Dimensions

354×350.5×20

Scintillator type

Cesium iodide/Perovskite

Weight

4.5kg

Effective imaging area

254.8x304.8 mm

Operating temperature

-10~55℃

Pixel matrix

2548×3048

Storage temperature

-20~60℃

Pixel size

100 μm

Operating humidity

5~90% RH (non-condensing)

Spatial resolution

5.0LP/mm

Storage humidity

5~95% RH (non-condensing)

AD conversion bit number

16bit

X-ray energy range

40kV-300kV

Image output time

1s

Protection level

IP54

Exposure time

350ms-180s

Battery life

4h

Data interface

Wired: GigE

Service life

5 years

Wireless:802.11 a/g/n

Power consumption

20W

Supply voltage

15VDC

Trigger mode

Soft trigger

Industrial Imaging Performance

Single-wire image quality meter: can identify wire number 13, corresponding to wire diameter 0.2mm

Dual-wire image quality meter: can identify wire pair number D9, corresponding to wire diameter 0.2mm

HS-2530W Battery Specifications

Battery model

HS-BATH55

Output

11.1V--5000mAh

Charging limit voltage

12.6V

Charging limit current

2.5A

Weight

385g

Capacity

55.5Wh

Implementation standard

GB31241-2022

FAQ

1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2. why should you buy from us not from other suppliers?
HANGZHOU HUIWEI NDT DEVICES CO.,LTD is a professional manufacturer specilizing in NDT equipment for 30 years long, integrating development and manufacturing in-house. and it is one of companies strong supported by country.
