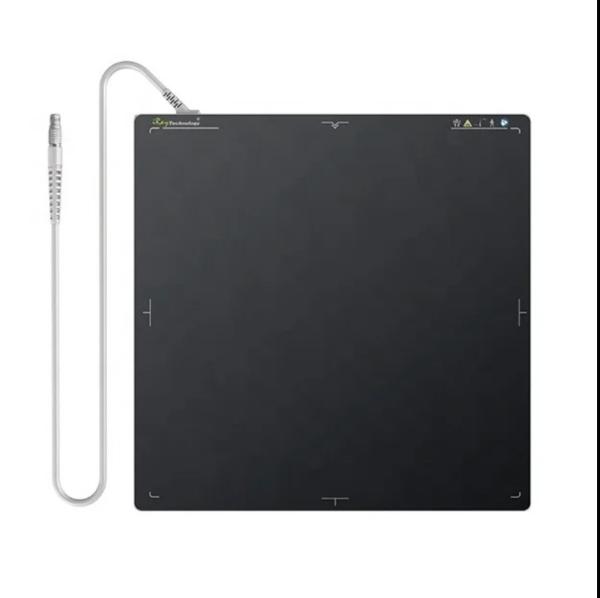

DR Machine Industrial Flat Panel Detector Radiology For Detection Inspection
DR Machine Industrial Flat Panel Detector Radiology For Detection Inspection
Specifications
Brand Name :
HUIWEI
Model Number :
HS-2530W
Certification :
ISO 9001, CE
Place of Origin :
ZHEJIANG, CHINA
MOQ :
1 set
Price :
12000usd/set
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
500sets within one month
Delivery Time :
15working days
Packaging Details :
Standard export plywood package
Pixel matrix :
2548×3048
Sensor type :
a-Si
Operating temperature :
-10~55℃
Dimensions :
354×350.5×20
Cooling Method :
Air cooling
Pixel size :
100 μm
Weight :
4.5kg
AD conversion bit number :
16bit
X-ray energy range :
40kV-300kV
Protection level :
IP54
Description

PRODUCT DESCRIPTION

Flat Panel Detector Industrial Use DR Machine For Detection Inspection

Main introduction:

HS-2530W serves as an industrial inspection flat panel detector, leveraging 100μm a-Si TFT sensor technology to achieve high-resolution imaging with superior contrast. Built to industrial-grade specifications, this rugged device offers IP54-rated waterproof and dustproof protection, along with robust radiation resistance, environmental adaptability, and reliability. A Windows-supported SDK software development kit is provided, enabling users to easily configure parameters, integrate components, and perform image correction, acquisition, and analysis. Well-suited for industrial sectors such as non-destructive testing of pipeline welds and iron/aluminum castings, HS-2530W delivers precision and dependability in challenging operational environments.

HS-2530W Specifications

Sensor type

a-Si

Dimensions

354×350.5×20

Scintillator type

Cesium iodide/Perovskite

Weight

4.5kg

Effective imaging area

254.8x304.8 mm

Operating temperature

-10~55℃

Pixel matrix

2548×3048

Storage temperature

-20~60℃

Pixel size

100 μm

Operating humidity

5~90% RH (non-condensing)

Spatial resolution

5.0LP/mm

Storage humidity

5~95% RH (non-condensing)

AD conversion bit number

16bit

X-ray energy range

40kV-300kV

Image output time

1s

Protection level

IP54

Exposure time

350ms-180s

Battery life

4h

Data interface

Wired: GigE

Service life

5 years

Wireless:802.11 a/g/n

Power consumption

20W

Supply voltage

15VDC

Trigger mode

Soft trigger

Industrial Imaging Performance

Single-wire image quality meter: can identify wire number 13, corresponding to wire diameter 0.2mm

Dual-wire image quality meter: can identify wire pair number D9, corresponding to wire diameter 0.2mm

HS-2530W Battery Specifications

Battery model

HS-BATH55

Output

11.1V--5000mAh

Charging limit voltage

12.6V

Charging limit current

2.5A

Weight

385g

Capacity

55.5Wh

Implementation standard

GB31241-2022

FAQ

1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2.what can you buy from us?
flaw detector,portable x ray flaw detector,mobile x ray machine.

3. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Escrow;
