Panoramic NDT X Ray Radiographic Testing Non Destructive Testing Welding Equipment
Panoramic NDT X Ray Radiographic Testing Non Destructive Testing Welding Equipment
Panoramic NDT X Ray Radiographic Testing Non Destructive Testing Welding Equipment
Panoramic NDT X Ray Radiographic Testing Non Destructive Testing Welding Equipment
Specifications
Brand Name :
HUIWEI
Model Number :
RD-300LG
Certification :
ISO 9001, CE
Place of Origin :
ZHEJIANG, CHINA
MOQ :
1 set
Price :
550000usd/set
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
500sets within one month
Delivery Time :
15working days
Packaging Details :
Standard export plywood package
Power supply :
AC220V±10%
Function :
steel defect,NDT inspection welding
Application :
Industrial field
Max.penetration :
80mm(A3 STEEL)
Warranty :
12 Months
Usage :
spaceflight industry, welding engineering industry, shipbuilding industry inspection
Voltage :
30-300kv
Exposure time :
30 minutes
Name :
NDT industrial x-ray machine
Focus Spot :
2.5*2.5
Weight :
30kg
Generator Weight :
30kg
Description

NDT PANORAMIC X-RAY MACHINE NON-DESTRUCTIVE TESTING WELDING EQUIPMENT FOR SALE

Main introduction:

As China’s industrial manufacturing sector advances, there is a growing demand for high-performance radiographic inspection of thick-walled components and long-focal-length welds. Conventional X-ray systems struggle to meet these requirements, prompting the development of the ‌RD-360LG‌—a breakthrough aligned with China’s Manufacturing Power Strategy 2025.

Huiwei is committed to delivering world-class industrial solutions. Through relentless R&D efforts, we have engineered the ‌RD-360LG‌, a rugged, high-energy industrial X-ray system. Leveraging three decades of expertise, this cutting-edge machine achieves ‌continuous operation at 360KV‌, with a ‌penetration capability of 80mm (Q235 steel)‌—making it ideal for inspecting thick-walled structures in special equipment.

As Huiwei’s ‌flagship high-energy X-ray system‌, the ‌RD-360LG‌ addresses critical challenges in ‌non-destructive testing (NDT)‌, offering a ‌safer, more efficient alternative to traditional isotope-based methods (e.g., Ir-192)‌. By eliminating the logistical and regulatory burdens of radioactive sources, it enhances ‌cost efficiency, operational safety, and workflow optimization‌ for NDT service providers.

With its ‌superior performance and reliability‌, the ‌RD-360LG‌ is poised to become a ‌globally competitive solution‌ in industrial radiography.

Main usage:

Panoramic NDT X Ray Radiographic Testing Non Destructive Testing Welding Equipment

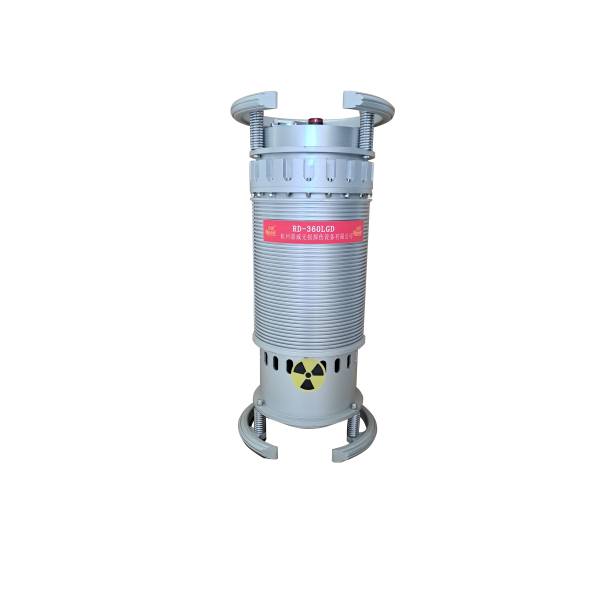

RD-360LG Technical Parameter

model RD-360LGD RD-360LGP
Outgoing wiring harness directional radiation Circumferential radiation
Input power supply AC22V±10%
Maximum transmittance (mm) steel 80mm(steel) 70mm(steel)
High voltage range (kV) 200-360 200-360
Tube current (mA) 5 5
Focus size (mm) 3.0x3.0 1.0x3.0
Shooting angle 45±5° 360°
Generator size Φ350x770 Φ350x770
Generator weight (Kg) 42 40
operation mode 3:1Continuous exposure rest

Panoramic NDT X Ray Radiographic Testing Non Destructive Testing Welding Equipment

Panoramic NDT X Ray Radiographic Testing Non Destructive Testing Welding Equipment
