Industrial X Ray Machine Featuring Gas Insulated Anode Grounding and Fully Automatic X Ray Transmission Inspection
Industrial X Ray Machine Featuring Gas Insulated Anode Grounding and Fully Automatic X Ray Transmission Inspection
Specifications
Brand Name :
HUIWEI
Model Number :
RD-300LGD
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1 SET
Price :
35000-40000USD/SET
Payment Terms :
L/C, T/T, Western Union, D/P, D/A
Supply Ability :
500SET PER MONTH
Delivery Time :
WITHIN 15 WORKING DAYS
Packaging Details :
STANDARD EXPORT PACKAGE
Product name :
industrial NDT equipment NDT x ray testing machine
Warranty :
12 Months
Usage :
inspection welding,X-ray inspection
Power supply :
AC220V±10%
Application :
Industrial,Industrial X-Ray Testing
Function :
NDT inspection welding,pressure container
Max. penetration :
80mm
Color :
Stainless Steel
Film type :
Any kinds of industrial film
Exposure time :
90 minutes
Tube current :
5mA
Weight :
46kg
Description

Industrial X Ray Machine Featuring Gas Insulated Anode Grounding and Fully Automatic X Ray Transmission Inspection

◆ Chopper control for adaptive starting rate and harsh voltage range on site;

Unique voltage working soft start and slow shutdown function is beneficial for protecting the X-ray generator;

The first fully automatic training mode, with discharge self voltage reduction protection and automatic time tracking;

◆ The side of the casing is equipped with a working status indicator light for easy remote observation;

Equipped with safety door signal interlocking terminals, which can be connected to the lead room door control to ensure personnel safety;

◆ The delayed exposure time can be freely adjusted;

◆ It can accumulate exposure time and facilitate favorable recording for the equipment;

As long as the voltage and exposure time of the X-ray tube are set in advance, the operator only needs to press the button, and the X-ray machine can repeatedly take photos.

This device does not require a 1:1 rest and can continuously work for exposure. Even with larger filming tasks, this device can improve work efficiency.

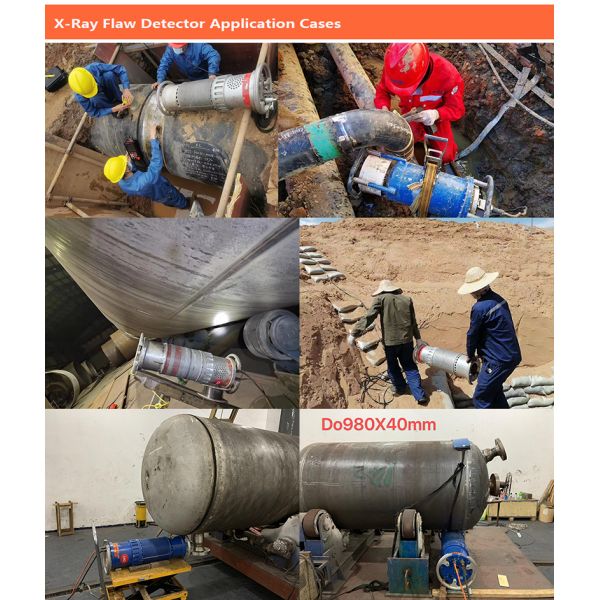

This series of X-ray machines is an SF6 gas insulated portable X-ray flaw detector, consisting of the following parts:

(1) X-ray generator

(2) Intelligent controller

(3) Power cable (AC220V, 15A, 3P)

(4) Connecting cable (12P)

(5) Attachment

Specifications

Project RD-300LGD
input Input power

Single-phase 50Hz AC220V - 250V
Power supply capacity

≥ 2.8 KVA
output X - ray tube voltage 150-300 KVp
X ray tube current 5mA
mA Stability degree ± 1%
Ray tube Focal size

2.6× 2.6
X-ray irradiation range

45°±5°
Ray generator

working pressure

Cooling mode

Insulation way

0.45MPa ~ 0.5Mpa

Anode ground connection radiator Strong wind cold

Gas insulation SF6

Size

weight (kg)

Φ350×885
46
Maximum penetration Thickness steel A3(mm) 80 mm Fe(5 min)
condition focal distance 600mm ,Agfa film,Double lead foil,Liquid temperature 22,Film density ≥1.5
sensitivity superior 2%
controller

Size

weight

Circuit

325×270×180

< 9(kg)

Automatic control and protection
Environment

working temperature relative humidity

Altitude

-30°~ +40°

Not more than 85%

Not higher 1500m
methods Maximum one-time startup time ≤ 90 minutes
Insulation level E
protection grade IP51
Executive standards

GB/T26838-2011
