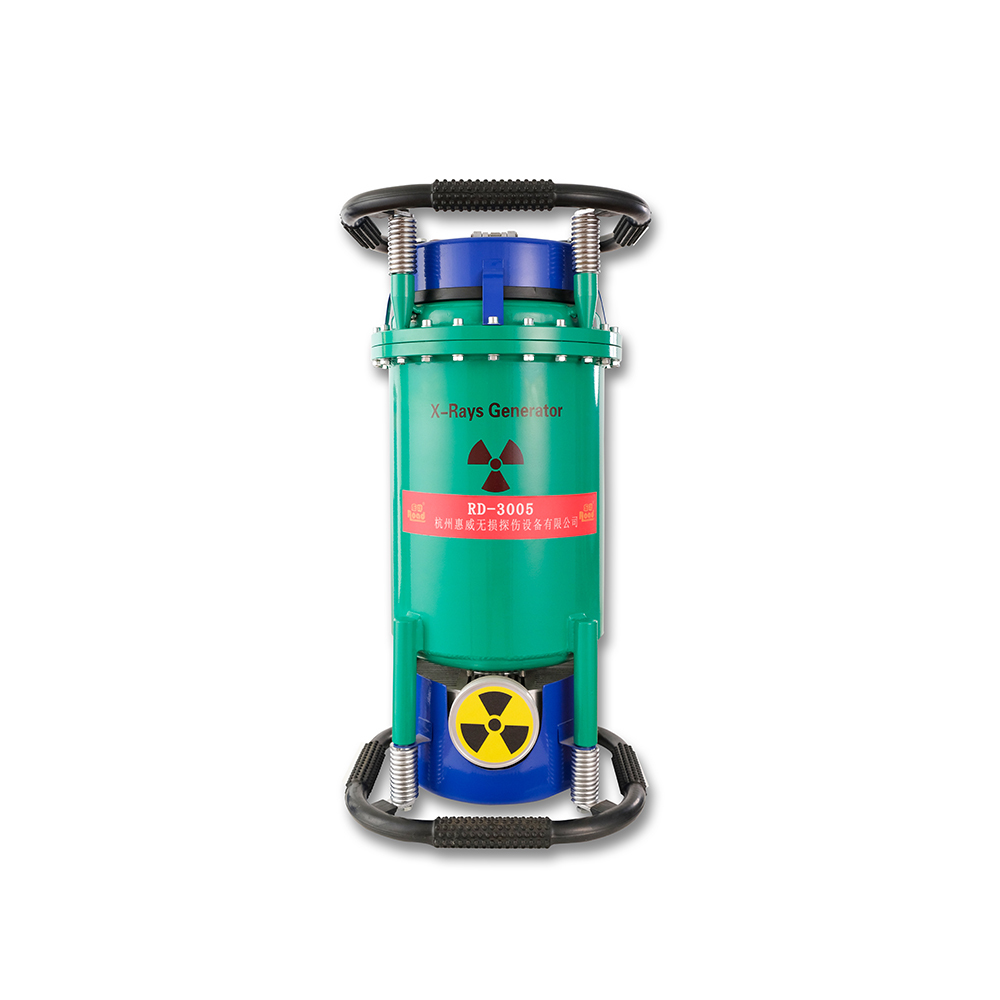

300kV Portable X-ray Flaw Detector RD-3005 | High Efficiency NDT Equipment for Large-Diameter Pipeline & Petrochemical Tank Testing
300kV Portable X-ray Flaw Detector RD-3005 | High Efficiency NDT Equipment for Large-Diameter Pipeline & Petrochemical Tank Testing
Specifications
Brand Name :
HUIWEI
Film type :
Any kinds of industrial film
Tube current :
5mA
Certification :
ISO 9001, CE
Max.penetration :
50mm(A3 STEEL)
Delivery Time :
15working days
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
500sets within one month
Model Number :
RD-3005
Focus Spot :
0.9*0.9
Exposure time :
5 minutes
Power supply :
AC220V±10%
Controller Weight :
9kg
Function :
steel defect,NDT inspection welding
Product name :
Industrial x ray testing xxg3005,x-ray welding machine ndt,X-ray Inspection Systems,NDT industrial film processing machine,industrial NDT equipment NDT x ray testing machine
Application :
Industrial field
MOQ :
1 set
Warranty :
12 Months
Usage :
spaceflight industry, welding engineering industry, shipbuilding industry inspection
Generator Weight :
28kg
Packaging Details :
Standard export plywood package
Price :
19000usd/set
Place of Origin :
ZHEJIANG, CHINA
Voltage :
170-300kv
Color :
Stainless Steel,Silver gray,blue and white
Name :
NDT industrial x-ray machine
Description

Non-Destructive Testing and Inspection at Your Fingertips with Portable Industrial Xray Machine RD-3005

1. About Our Company

As a leading manufacturer of industrial non-destructive testing (NDT) equipment, we specialize in high-performance portable X-ray flaw detectors designed for the global energy, petrochemical, and heavy fabrication industries. With decades of engineering expertise, we deliver reliable, field-proven solutions that meet international standards and the most demanding on-site inspection challenges. Our commitment to quality, innovation, and customer support has made us a trusted partner for contractors and inspection companies worldwide.

2. Product Overview

The RD-3005 Industrial X-ray Flaw Detector is a powerful, compact NDT solution built for efficiency in heavy-duty environments. It combines a robust 300kV output with a lightweight, portable design, making it ideal for inspecting large-diameter pipelines, chemical spherical tanks, and thick-wall components. Its unique 2.5:1 work-rest cycle eliminates mandatory downtime, boosting inspection productivity by 50%—a critical advantage for large-scale projects. Available in both directional and panoramic configurations, it offers versatile radiographic testing capabilities tailored to your specific needs.

300kV Portable X-ray Flaw Detector RD-3005 | High Efficiency NDT Equipment for Large-Diameter Pipeline & Petrochemical Tank Testing

RD-3005the technical parameters

Project

RD-3005

input

Input power

Single-phase AC150-250V 50/60Hz

Power supply capacity

No less than 3.0 KVA

output

X - ray tube voltage

150~ 300 KVp

X ray tube current

5mA

mA Stability degree

± 1%

Ray tube

Focal size

2.5× 2.5

X-ray irradiation range

40±5°

Ray generator

working pressure

Cooling mode

Insulation way

0.35MPa ~ 0.5Mpa

Anode ground connection radiator Strong wind cold

Gas insulation SF6

Size

weight (kg)

φ320×640

34

Maximum penetration

Thickness steel A3(mm)

50 mmFe(5 min)

condition

focal distance 600mm ,Agfa film,Double lead foil,Liquid temperature 22,Film density ≥1.5

sensitivity

superior 2%

controller

Size

weight

Circuit

325×270×180

< 9(kg)

Automatic control and protection

Environment

working temperature relative humidity

Altitude

-30°~ +40°

Not more than 85%

Not higher 1500m

methods

fully automatic 4:1 Work and rest,Longest continuous exposure time 15mins

4. Why Choose the RD-3005?

  • 50% Higher Inspection Efficiency: The 2.5:1 work-rest cycle allows for 15 minutes of continuous exposure, drastically reducing downtime and labor costs for large projects.
  • Dual Configuration Flexibility: Directional model for flat welds, panoramic model for full-circle pipeline radiography—one unit meets multiple testing requirements.
  • Proven Durability & Low Failure Rate: Engineered for stability in harsh industrial environments, minimizing maintenance and operational disruptions.
  • Optimized for Large-Scale Applications: Specifically designed for double-wall single-image radiography on large-diameter pipelines and chemical spherical tanks.

5. Primary Applications

  • Petrochemical spherical tank and pressure vessel weld inspection
  • Large-diameter oil and gas pipeline radiographic testing
  • Power plant boiler and structural component NDT
  • Heavy industrial fabrication and quality control
  • On-site inspections in remote or confined industrial locations
