All Insulation RMU Components 630A 15kV 250A T Elbow Connector With Zinc Oxide Arrester
All Insulation RMU Components 630A 15kV 250A T Elbow Connector With Zinc Oxide Arrester
Specifications
Brand Name :
MacweyTEK
Model Number :
JFZC-15KV/250A
Certification :
IEC
Place of Origin :
China
MOQ :
1 piece
Price :
$19
Payment Terms :
T/T
Supply Ability :
10000
Delivery Time :
15 days
Packaging Details :
carton
Name :
RMU Components
Max system voltage :
24kv
The impact withstand voltage :
125kv
AC withstand voltage :
54kv
Continuous rated current :
250A
Overload current :
300A
Description

RMU 630A Cable 15kv Straight Type Connector Zinc Oxide Arrester Cable Joint SF6 Load Break Elbow Connector


Type: JFZC-15KV/250A


Performance

The elbow type connector and the straight type connector are used for outlet unit of the transformer in the ring cabinet.
The rated current is 250A, which is suitable for the cross-linked cable of 8.7/15kv and 12/20kv. The cable section is
25-150mm2.Special anti-loose structure to achieve elastic pressure tight.


Product Features

All insulation, all shielding, all sealing products. The anti-loose compact device guaranteed the reliability of application.

Compared with other models, this structure is more compact.


Technical Parameters

Item

Main parameter

Max system voltage (Um)

24kv

The impact withstand voltage

125kv

AC withstand voltage (5min)

54kv

Continuous rated current

250A

Overload current (up to 8 hours)

300A

Short time withstand current

12.5KV/1s









All Insulation RMU Components 630A 15kV 250A T Elbow Connector With Zinc Oxide Arrester

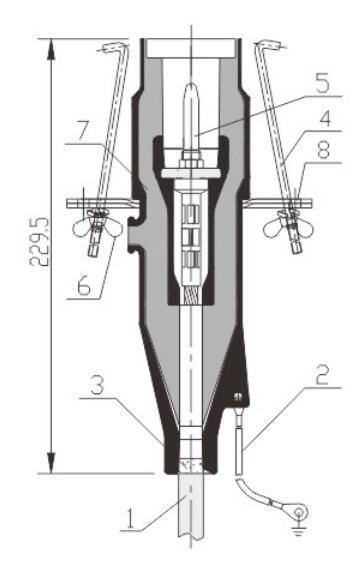

1. Cable

2. Earthing wire

3. Semi-conductive layer

4. Bolt

5. Terminal

6. Nut

7. Elbow type/straight type connector

8. Compression board

9. Conductive rod
