15kV 630A T Type Cable Connector American Style For Ring Main Unit
15kV 630A T Type Cable Connector American Style For Ring Main Unit
Specifications
Brand Name :
MacweyTEK
Model Number :
TT3-15/600
Certification :
IEC
Place of Origin :
China
MOQ :
1 piece
Price :
$22
Payment Terms :
T/T
Supply Ability :
20000 pieces
Delivery Time :
18 days
Packaging Details :
cartons
Name :
T Type Cable Connector
Rated voltage :
15kV
Rated current :
600A
Power frequency withstand voltage :
39kV
Partial discharge of 15kV :
≤5pC
Thermostable current :
30kA
Dynamic stable current :
110kA
Description

American Style 15kV T Type Cable Connector for Ring Main Unit 630A Cable Connector 25mm²


Type: TT3-15/600

The T-type / T-Ⅱ connector is used for the main network system of the cable branch box or as the incoming and outgoing cable connector
of the ring network cabinet. It can connect the 600A high-voltage sleeve and multiple socket, or it can also connect with the 600A bus sleeve
and elbow plug to form multiple cable branches. The product has an electroscope. Rated current 600A, suitable for cable section 25-400mm2,
suitable for the 52/80/5/8’’ casing in Φ40 / medium.

Product Feature

All insulation, all sealing, all shielding products. With the introduction of international advanced post injection insulation technology, the
electrical performance index is higher, and the use is safe and more reliable. T-type Ⅱjoint an elbow type plug assembly than traditional
structure shortened after 30mm, not only fully meet the requirement of the ring network cabinet installation space, and further the
structure of the cable branch box size smaller.

2mm thick uniform outer shield layer, surface resistance ＜1000 Q/cm, most advanced prefabricated cable connector.
It is the most advanced prefabricated cable joint in the world.


American Type 600A Detachable Connector Performance Parameters

Rated voltage

15kV

Rated current

600A

Power frequency withstand voltage (5mins)

39kV

Partial discharge of 15kV

≤5pC

Thermostable current

30kA

Dynamic stable current (10ms)

110kA

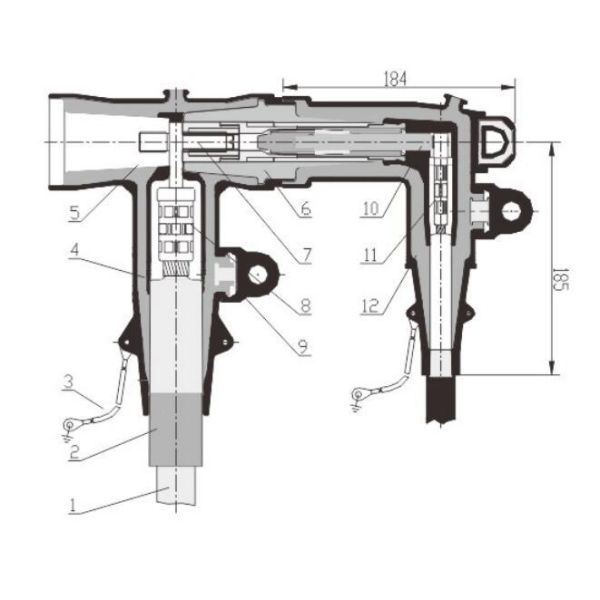

Product Structure

15kV 630A T Type Cable Connector American Style For Ring Main Unit

1.The Cable 2. Stress Cone 3. Ground Wire 4. T-joint 5. Casing

6. Transfer Head 7. Double-end Bolt 8. Round Head Terminal

9. Check The Cover 10. Conductive Rod 11. Elbow Connector Terminal
12. Elbow Plug


American Application Standard for Detachable Connector


15kV 630A T Type Cable Connector American Style For Ring Main Unit
