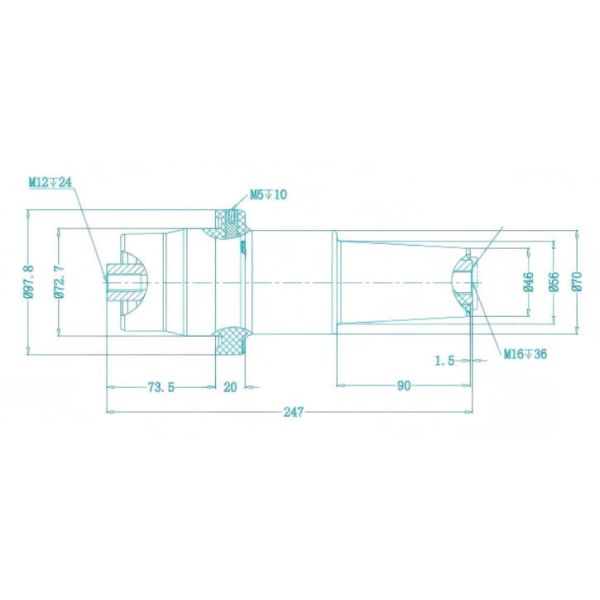

ANSI RMU Components High Voltage Switchgear SF6 Bushing With Gas Insulation
ANSI RMU Components High Voltage Switchgear SF6 Bushing With Gas Insulation
Specifications
Brand Name :
MacweyTEK
Model Number :
6MKEP. 247
Certification :
IEC
Place of Origin :
China
MOQ :
1 pc
Price :
$10
Payment Terms :
T/T
Supply Ability :
10000 pcs
Delivery Time :
15 days
Packaging Details :
cartons
Name :
RMU Components
Rated Voltage :
12kV 15kV
Rated Current :
630A
Dimension :
247mm
Power-frequency Withstand Voltage :
48 kV/1min
Inductive Capacitance :
25+5 pF
Description

12kV ANSI Switchgear Bushing SF6 Bushing Gas Insulation SF6 Switchgear Bushing

12KV Epoxy Resin Integrated Insulated Dead Break Bushing designed for cable branch cabinets with SF6 switches, ensuring reliable insulation in high voltage switchgear. Its umbrella skirt structure increases creepage distance, enhancing electrical performance and safety. Certified with CE, it ensures compliance with EU safety standards, providing market access assurance.

Supplier Highlights: Manufacturer and trader offering full customization options including design and sample customization. All products are certified with 100% customer satisfaction.
Technical Specifications
Parameter Value
Rated Voltage 12
Rated Current 630A
Dimension 247mm
Power-frequency Withstand Voltage 48 kV/1min
Partial Discharge ≤ 5 pC
Inductive Capacitance 25+5 pF
Key Features
  • Designed for cable branch cabinets with SF6 switches
  • Epoxy resin integrated insulation for high reliability
  • Umbrella skirt structure for increased creepage distance
  • Enhanced electrical performance and safety
  • CE certified for EU market compliance
