24KV Wall Through Bushing CE Certified Epoxy Resin Bushing For Switchgear Panels
24KV Wall Through Bushing CE Certified Epoxy Resin Bushing For Switchgear Panels
Specifications
Brand Name :
MacweyTEK
Model Number :
24kv-630A-2500A
Certification :
IEC
Place of Origin :
China
MOQ :
1 piece
Price :
$20
Payment Terms :
T/T
Supply Ability :
30000
Delivery Time :
8 days
Packaging Details :
cartons & pallet
Name :
Wall Through Bushing
Material :
Epoxy resin
Application :
High voltage switching equipment
Rated voltage :
10kv, 24kv, 35kv, 40.5kv
Rated current :
630A, 1250A, 1600A, 2000A, 2500A, 3150A, 4000A, 6300A
Product Certification :
CE and ISO 9001:2000
Description

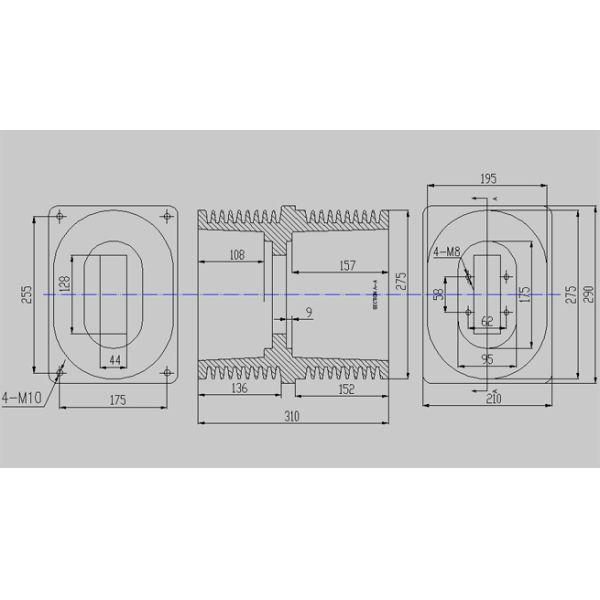

24KV Insulation Epoxy Resin Through-wall Bushing for switchgear panels


The high-voltage wall bushing is suitable for three-phase AC system power stations and substation power
distribution devices with rated voltage (10~40.5) KV, frequency (15~60) Hz, for conductive parts to pass
through the partition, wall or other grounding. Object, for insulation support and fixed connection between
external conductors (busbars).


Brand

Macwey

Material

Epoxy resin

Application

High voltage switching equipment

Product Certification

CE and ISO 9001:2000

Rated voltage

10kv, 24kv, 35kv. 40.5kv

Rated current

630A, 1250A, 1600A, 2000A, 2500A, 3150A, 4000A,6300A

MOQ



Packing

1. Each one is wrapped with plastic film

2. Packed in cartons

3. Cartons are packed on wooden/plastic pallet

Loading port

Ningbo / Shanghai

Payment terms

T/T, L/C, Western Union

Delivery time

Usually within 15 days, depend on order quantity

Advantages

1.OEM are welcome 2. Top quality and timely delivery

3. Reasonable prices 4. In a variety of designs and specifications
