630A Switchgear Accessories 36kV 40.5kV Epoxy Resin Insulators
630A Switchgear Accessories 36kV 40.5kV Epoxy Resin Insulators
Specifications
Brand Name :
MacweyTEK
Model Number :
CHN3-40.5KV-550
Certification :
IEC
Place of Origin :
China
MOQ :
1 piece
Price :
$20
Payment Terms :
T/T
Supply Ability :
20000
Delivery Time :
10 days
Packaging Details :
cartons & pallet
Name :
Switchgear Accessories
Material :
Epoxy Resin
Rated Current :
≤630A
Rated Voltage :
40.5KV
Technology :
APG technology
Description

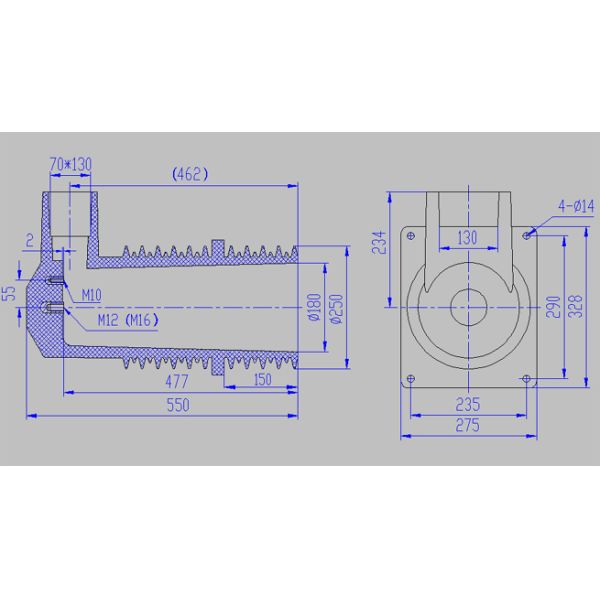

36kV, 40.5kV insulation contact box 630A


Model No: CHN3-40.5KV-550
Material: Epoxy Resin
Rated Current: ≤630A
Rated Voltage: 40.5KV
Technology: APG technology
Application: Used for insulation, isolation & connection transition in various kinds of handcart switchgear

Operation Conditions:
1. Altitude: ≤ 1000m;
2. Ambient temperature: +40~-10º C;
3. The relative humidity shall not be more than 95% at+20 º C ambient temperature;
4. NO gas, wapor or dust that may severely affect the insulation of contact box, no explosive or corrosive substance.

Technical Date &Requirement
1. The coper contact to earth shall withstand power frequency test voltage(effective value )of 42kv for 5 minutes and
lightning impulse vpltage (peak value)of 75KV;
2. The temperature of lead-out terminal shall not bemore than 65º C if the contact box is used for long time in
rated current condition;
