APG Switchgear Accessories 12KV High Voltage Insulators Indoor For Switchgear Cabinet
APG Switchgear Accessories 12KV High Voltage Insulators Indoor For Switchgear Cabinet
Specifications
Brand Name :
MacweyTEK
Model Number :
CHN3-12KV-150
Certification :
IEC
Place of Origin :
China
MOQ :
1 piece
Price :
$6
Payment Terms :
T/T
Supply Ability :
30000
Delivery Time :
10 days
Packaging Details :
cartons and pallet
Name :
Switchgear Accessories
Material :
Epoxy Resin
Rated Current :
≤630A～1250A
Rated Voltage :
12KV
Technology :
APG technology
Description

Indoor 12KV High Voltage Epoxy Resin Corner Insulator Contact Box For Switchgear Cabinet


Model No: CHN3-12KV-150
Material: Epoxy Resin
Rated Current: ≤630A～1250A
Rated Voltage: 12KV
Technology: APG technology
Application: Used for insulation, isolation & connection transition in various kinds of handcart switchgear

Operation Conditions:
1. Altitude: ≤ 1000m;
2. Ambient temperature: +40~-10º C;
3. The relative humidity shall not be more than 95% at+20 º C ambient temperature;
4. NO gas, wapor or dust that may severely affect the insulation of contact box, no explosive or corrosive substance.


Technical Date &Requirement
1. The coper contact to earth shall withstand power frequency test voltage(effective value )of 42kv for 5 minutes and
lightning impulse vpltage (peak value)of 75KV;
2. The temperature of lead-out terminal shall not bemore than 65º C if the contact box is used for long time in
rated current condition;

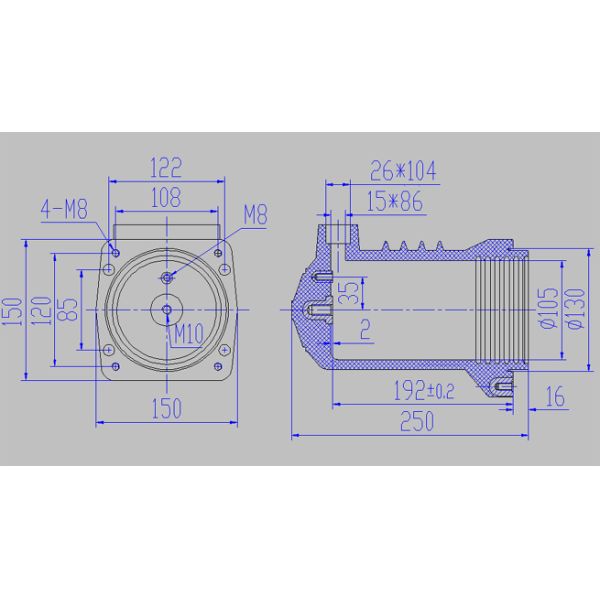

Drawings
