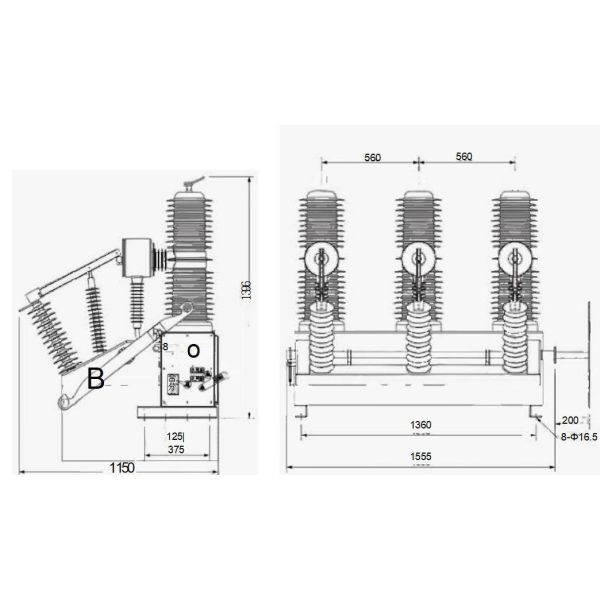

Permanent Magnet HV Circuit Breakers 35kv 36kv Miniature Circuit Breaker For Medium Voltage Overhead Lines
Permanent Magnet HV Circuit Breakers 35kv 36kv Miniature Circuit Breaker For Medium Voltage Overhead Lines
Specifications
Brand Name :
MacweyTEK
Model Number :
ZW32-40.5F(M)
Certification :
IEC
Place of Origin :
China
MOQ :
1 pc
Price :
$1000-$3000
Payment Terms :
T/T
Supply Ability :
1000 pcs
Delivery Time :
15 days
Packaging Details :
wooden case
Name :
HV Circuit Breakers
Rated voltage :
40.5KV
Rated current :
630/1250A
Rated frequency :
50,60Hz
Mechanical life :
10000 times
Contact opening :
18±1 mm
Description

35kv 36kv 40.5kv Outdoor High Voltage Vacuum Circuit Breaker with Permanent Magnet Drive


ZW32-40.5F(M) outdoor high voltage inteligent (permanent magnet)vacuum circuit breaker is mainly composed of integrated solid sealed pole, curent transformer,operating mechanism and box body.Isolation switch can be added.This type of cicuit breaker is of miniaturized design,and the shell is made of high-quality steel box.Current transformers can be selected according to user needs.

The device is mainly used in medium-voltage overhead line power grids as a branching and dosing load curent,overload curent,and short-circuit current.


Environmental conditions

● Ambient temperature:not higher than+40℃,not lower than-15℃;

● Relative humidity of air:daily average value is not greater than 95%,monthly average value is not greater than 90%;

● The altitude does not exceed 1000 meters;

● The seismic intensity does not exceed 8;

● There is no fire,explosion,serious pollution,chemical corrosion and violent vibration.

Note: if the customer has other special requirements,he can put forward at the time of orde,and our company will give the greatest satisfaction.


The main technical parameters

Project

Unit

Parameter

Rated voltage

kV

40.5

Rated current

A

630/1250

Rated frequency

Hz

50或60

Power frequency withstand voltage 1min (wet)(dry)interphase,ground/fracture

kV

8095/95

Lightning impulse withstand current(peak)interphase,ground/fracture

kV

185

Rated short-circuit breaking current

kA

20/25/31.5

Rated short-circuit making current(peak value)

kA

63/80

Rated peak withstand current

kA

63/80

4S short-time withstand current

kA

25/31.5

Rated operating cycle

Points-0.1s-Combined-3s-Combined-6s Combined-60s Recovery

Breaking times of rated short-circuit current

次

30

Mechanical life

次

10000

Mechanism control voltage

V

AC/DC220

Secondary circuit 1min power frequency withstand voltage

kV

2

Contact opening

mm

18±1

Contact overtravel

mm

4±0.5

Opening speed

m/s

1.4-1.8

Closing speed

m/s

0.4-0.8

Bounce time of contact closing

ms

≤5

Center distance

mm

560±2

Different phases of three-phase opening and closing

ms

≤2

Conductive loop resistance of each phase

μQ

<80

Closing time

ms

≤100

Opening time

ms

≤50

weight

KG

Without isolation 300 With isolation 380
