50Hz MV Circuit Breaker Pole Mounted SF6 Gas Circuit Breakers Outdoor
50Hz MV Circuit Breaker Pole Mounted SF6 Gas Circuit Breakers Outdoor
Specifications
Brand Name :
MacweyTEK
Model Number :
LW-12F
Certification :
IEC
Place of Origin :
China
MOQ :
1 pc
Price :
$1000-$2000
Payment Terms :
T/T
Supply Ability :
3000pcs
Delivery Time :
15 days
Packaging Details :
wooden case
Name :
MV Circuit Breaker
Rated voltage :
12kV
Rated frequency :
50Hz
Rated cable charging current :
25A
Rated short-circuit breaking current :
20kA
Rated working pressure :
0.35Mpa
Description

The 12kV outdoor pole-mounted SF6 circuit breaker 12kV 630A Recloser SF6 CB


The 12kV outdoor pole-mounted SF6 circuit breaker is a new generation product
developed by our company to meet the new requirements of the primary and
secondary integration of the national grid.The switch configuration fully meets
the requirements of the primary and secondary integration of the national grid.
Mass production.The switch has a compact structure,a reasonable layout,
and complete functions.All indicators meet the requirements of the primary
and secondary fusion of the State Grid.It adopts unified parameter protection CT,
zero sequence CT and zero sequence voltage sensors.It has a wide measurement
range,high measurement accuracy,and reliability High characteristics,complete
analog quantity is convenient for accurate determination of various faults on the line.



Operating environmental conditions
◆ Ambient air temperature:-40℃~+40℃;
◆ Altitude:no more than 3000m;
◆ The surrounding air can be contaminated by dust,smoke,corrosive gas,steam or salt mist.Pollution level:Grade IV;
◆ The wind speed does not exceed 34m/s(equivalent to 700Pa on the surface of the cylinder)
◆ Vibration or ground motion from outside of switchgear and control equipment can be ignored;
◆ The amplitude of electromagnetic interference induced in the secondary system does not exceed 1.10kV.


The main technical parameters

Electrical technical parameters

Project

Unit

Parameter

Rated voltage

kV

12

Rated frequency

Hz

50

Rated current

A

630

Rated short-time withstand current

kA

20

Rated short-time withstand current passing time

S

4

Rated short-time withstand current(peak value)

kA

50

Rated short-circuit making current (peak value)

kA

50

Rated cable charging current

A

25

Rated short-circuit breaking current

kA

20

Rated operating sequence

Points-0.3s-he points-180s-he points

Rated working pressure (at gauge pressure Mpa at 20℃)

0.35

Minimum functional pressure(at gauge pressure Mpa20℃)

0.25

Project

Unit□

Parameter

Rated power frequency withstand voltage(1 minute)

(Rated insulation level at minimum working pressure)

Alternately and relatively

kV

42

Insulation break

kV

48

Rated lightning impulse withstand voltage(BIL)

(Rated insulation level at minimum working pressure)

Alternately and relatively

kV

75

Insulation break

kV

85

Rated mechanical stability

breaker

10000 times(E2 level)

Annual leakage rate of SF6 gas

≤0.5%

Rated closing/opening operating voltage

V

DC24V

total weight

kg

175

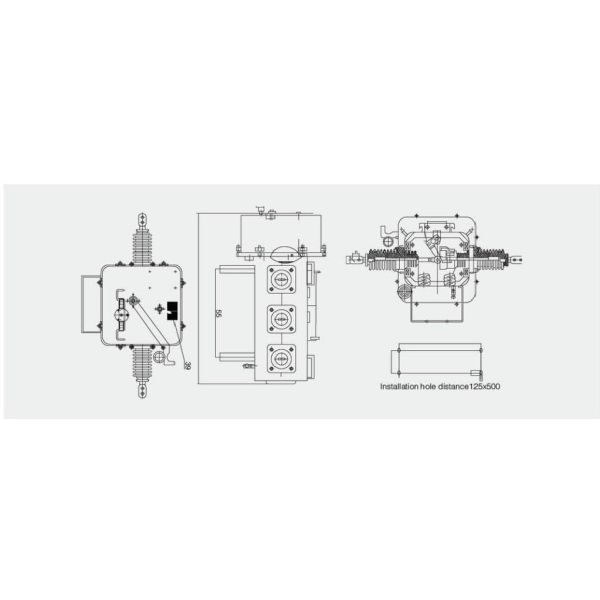

Dimensions(L×W×H)

mm

1015×950×580

Closing time

Rated operating voltage

ms

50±ms

Maximum operating voltage

ms

40～60

Minimum onerating voltage

ms

40～60

Opening time

Rated operating voltage

ms

40±ms

Maximum operating voltage

ms

35～55

Minimum operating voltage

ms

35～55

Closing different periods

ms

≤2

Different stages of opening

ms

≤2

Just close speed

m/s

2.6±0.2

Just split speed

m/s

2.6±0.2

Contact opening

mm

38±2

Contact overtravel

mm

22±1

Main circuit resistance of each phase(excluding cable)

≤130

Energy storage motor power

150W DC24V
