CWDM optional channel Mux & Demux, 1U rack type, dual fibre, LC/UPC connectors.

Provides low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path.

We proudly offer a compatibility guarantee and limited lifetime warranty. Our rigorously tested products record a unique traceable serial number and are fully compliant with all standards & protocols.

• 16 channels CWDM mux and demux in one 1U Rack
• Com port is simplex
• 1U 19 inch Rack Mount Housing
• It is equipped with configuration ports like Monitor, Express port according to customer choice (see options)
• Front panel is equipped with adapters according to customer choice (see options)
• Passive, no electric power required. (MTBF ca. 500 years)
• Low insertion loss
• Simple to install, requires no configuration or maintenance
• ISO 9001 manufacturing facility
• It should be used with another 8 channels 1RU Rack Mount box, Duplex Dual Fiber Transmission, CWDM Mux and Demux in pair.

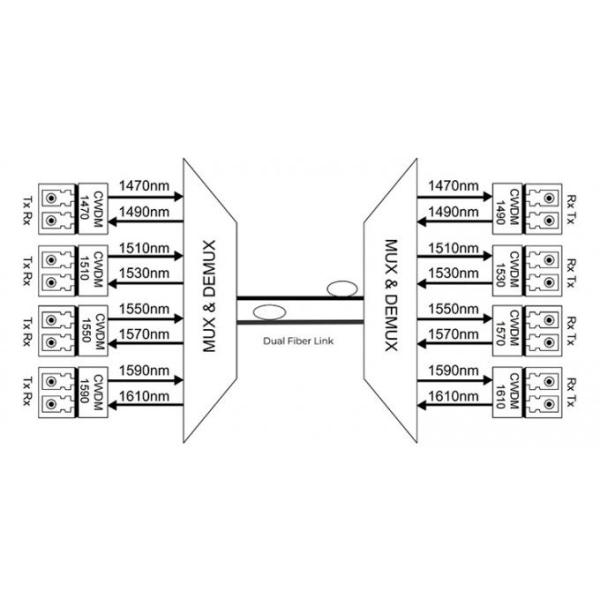

Dual Fiber Transmission should be used in pairs, MUX/DEMUX Portfor specific wavelength must be opposite CWDM

HJY CWDM Mux/Demux is a passive technology, it allows for any protocol to be transported over the link, as long as it is at a specific wavelength (i.e. T1 over fiber at 1570nm transported alongside 10Gbps Ethernet at 1590nm). This allows for long-term future proofing of the networking infrastructure because the multiplexers simply refract light at any network speed, regardless of the protocol being deployed.

HJY provides a complete portfolio of CWDM Mux Demux and Optical Add Drop Multiplexer (OADM) units to suit all applications such as: Gigabit & 10G Ethernet, SDH/SONET, ATM, ESCON, Fibre Channel, FTTx and CATV. And we provide optional port configurations such as: Express Port, Monitor Port, 1310nm passband port and 1550nm port for these multiplexers according to customer choice.

A single fiber can be shared for multiple different data or services in WDM network. It maximizes the usefulness of fiber and generates substantial savings.

Flexible mix of 1G/10G/25G/40G/100G/200G Ethernet, 8G/16G FC, SAN, OTN, SDH/SONET and native video services, it's transparent to any rate, any service multiplexing and upgrade

Mechanical Details for Housing

Note: Please, note that the drawings shown here only show the dimensions and do not the specific configuration of the module.
