Specifications
Brand Name :
HJY
Model Number :
HJY-CWDM-ABS-4CH-D2
Certification :
CE, ROHS, FCC ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
1~999
Payment Terms :
T/T,Western Union,L/C
Supply Ability :
100,000 pcs
Delivery Time :
5~8 working days
Packaging Details :
Roll, Neutrial Packing or with OEM LOGO
Insertion Loss :
< 1.5dB
Wavelength Range :
1470nm-1530nm
Number Of Channels :
4
Storage Temperature :
-40℃~+85℃
Connector Type :
LC/UPC, LC/APC, SC/UPC, SC/APC
Type :
Dual Fiber
Description

Dual Fiber 4 Channels CWDM Mux Demux 1470-1530nm for Fiber Optic Solutions in Metro Access 5G fronthaul and Data Centers


Dual Fiber 4-Channel CWDM Mux/Demux (1470-1530nm) - Future-Ready Optical Networking Solution

Product Highlights

* 4-Channel CWDM Technology: Precision wavelength division from 1470nm to 1530nm

* Dual-Fiber Design: Bidirectional transmission for metro access networks

* 5G Fronthaul Ready: Optimized for 10G/25G Ethernet in C-RAN architectures

* Data Center Grade: <1.5dB insertion loss with 40km transmission capability

* Industrial Stability: Operating temperature range -40°C to +85°C


Technical Advantages

Our CWDM multiplexer/demultiplexer implements thin-film filter technology to deliver:

* 100GHz channel spacing compliant with ITU-T G.694.2

* ≤3dB PDL (Polarization Dependent Loss)

* 30dB adjacent channel isolation

* Compact LGX box packaging with SC/LC connector options


Application Scenarios

✔ 5G Mobile Fronthaul: Aggregates CPRI/eCPRI streams
✔ Metro Edge Networks: Cost-effective wavelength expansion
✔ Data Center Interconnect: 4λ capacity over single fiber pair
✔ Fiber-to-the-Home: Enables multi-service delivery


CWDM technology uses ITU standard 20nm spacing between the wavelengths, from 1270nm to 1610nm. Our CWDM module has 2 to 18 channels. The central wavelength of each channel is specified to one of the ITU-T grid wavelengths. The CWDM module features wide channel bandwidth (13nm). Its isolation is greater than 30dB for adjacent channels, and greater than 40dB for non-adjacent channels. The module also has high thermal stability to ensure reliable performance under different environment.
Features Applications
· Low Insertion Loss
· High Channel Isolation
· Optical path epoxy free
· Excellent thermal stability and reliability
· Good channel-to-channel uniformity
· Wide Operating Wavelength: 1270nm-1610nm /(1261nm~1611nm)
· Wide Operating Temperature: -20 to +70℃
· Telcordia GR-1221 Compliance and RoHS Environmental Protection Standard		 · CWDM Network
· Add/Drop System
· CATV Fiberoptic System
· Metro/Access Network
· Fiber Optical Amplifier
Product specification
Channels
1x4
1x8
1x16
1x18
Insertion Loss
<1.5dB
<2.4dB
<4.8dB
<5.4dB

Wavelength Range
1270-1610nm
Technology
TFF (Thin Film Filter)
Channel Spacing
20nm
Passband Ripple
≤0.5dB
Channel Passband
ITU±6.5nm
Channel Isolation
Adjacent ≥30dB
Non-adjacent ≥45dB
Polarization Dependent Loss
≤0.2dB
Polarization Mode Dispersion
≤0.1ps
Directivity
≥50dB
Return Loss
≥45dB
Optical Power Handling
≤500mW
Temperature
Operating -40 to 85°C
Storage -40 to 85°C
Fiber Type
SMF-28e+
Connector
LC/SC/FC or other
Net Weight
0.25kg
Package dimensions
100*80*10mm
120*80*18mm
Or other

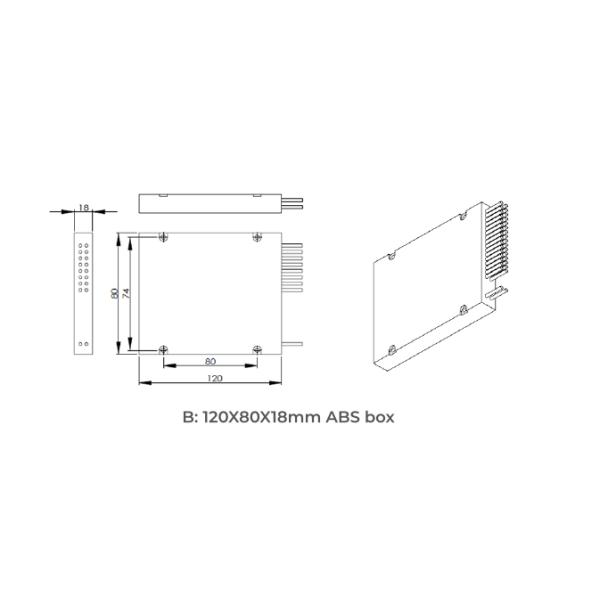

Package Dimension
Dual Fiber 4 Channels CWDM Mux Demux 1470 To 1530nm For Fiber Optic Solutions In Metro Access 5G Fronthaul And Data Centers

Dual Fiber 4 Channels CWDM Mux Demux 1470 To 1530nm For Fiber Optic Solutions In Metro Access 5G Fronthaul And Data Centers
Dual Fiber 4 Channels CWDM Mux Demux 1470 To 1530nm For Fiber Optic Solutions In Metro Access 5G Fronthaul And Data Centers

Note:Fiber diameter can be 0.9mm/2.0mm/3.0mm. Fiber length is 1M or others. Connector can be LC/SC/FC, or others. If you want to order, please check with us first.

Order information
P/N: CWDM-ABS-XCH-①-②-③-④-⑤-⑥
When you inquire, please provide the correct P/N number according to our ordering information, and attach the appropriate description would be better. If need any connector, we do not recommend choosing a 250μm bare fiber pigtail.
①
②
③
④
⑤
⑥
Wavelength
R- Wavelength
Fiber Type
Pigtails Diameter
Fiber Length
Connector
1270 nm
1290 nm
…
1590 nm
1610 nm
Or
1271 nm
1291 nm
…
1591 nm
1611 nm
A: 1270~1610
B: 1270~1450
C: 1470~1610
D: 1271~1611
E: 1271~1451
F: 1471~1611
1: SMF-28e
X: Others
25:250μm
90:900μm
XX:
Others
05:0.5m
10:1.0m
15:1.5m
XX:
Others
00:None
FP: FC/PC
FA: FC/APC
SP: SC/PC
SA: SC/APC
LP: LC/PC
LA: LC/APC
ST: ST/PC
XX: Others

Part Number Example: CWDM-ABS-18CH-A-1-90-10-LP
Description: 18CH CWDM Multiplexer ABS box type, Wavelength 1270~1610nm,SMF-28e fiber, 0.9mm OD loose tube,1.0m length fiber pigtails, LC/PC connectors at all ports.
Ordering Information for Custom Parts:
If you need to customize other specifications, please provide detailed description for your requirement.
