Specifications
Brand Name :
HJY
Model Number :
HJY-CWDM-8CH-D16RU
Certification :
CE, ROHS, FCC ISO9001
Place of Origin :
China
MOQ :
1 pc
Price :
1~999
Payment Terms :
T/T,Western Union,L/C
Supply Ability :
100,000 pcs
Delivery Time :
5~8 working days
Packaging Details :
Neutrial Packing or with OEM LOGO
Channel Number :
8CH
Wavelength Range :
1470 to 1610nm
Storage Temperature :
-40 to 85°C
Type :
CWDM MUX and DEMUX
Fiber Type :
G.652D
Number Of Channels :
16 Wavelengthes
Description

Precision Tuning and Flexible Port Options for High Speed Data Transmission with CWDM MUX DEMUX in 1470 to 1610nm Wavelengths

Customizable 1470-1610nm CWDM MUX/DEMUX for High-Speed Data Transmission

Our premium CWDM MUX/DEMUX modules deliver exceptional performance for high-speed optical networks, offering precision wavelength tuning across the 1470nm to 1610nm spectrum. Designed for telecom carriers, ISPs, and enterprise networks, these components enable efficient wavelength division multiplexing with industry-leading signal integrity.

Key Features: Precision Wavelength Control: ±0.3nm accuracy across all channels Flexible Port Configuration: 4/8/16/18 channel options available Low Insertion Loss: <2.0dB for optimal signal strength High Isolation: >30dB to minimize crosstalk Temperature Stability: -5°C to +70°C operating range Compact Design: 1RU rack-mount or LGX box packaging

Applications:

* 5G fronthaul/backhaul networks

* Data center interconnects (DCI)

* Fiber-to-the-home (FTTH) deployments

* Enterprise WAN expansion

Why Choose Our CWDM Solution?

* Custom Configurations: Tailored channel plans and port counts *

* Plug-and-Play Installation: Pre-configured for rapid deployment

* Future-Proof Design: Compatible with 10G/25G/100G transceivers

* Reliable Performance: 99.999% uptime in carrier-grade environments


Technical Specifications:

* Wavelength Range: 1470-1610nm (ITU-T G.694.2 compliant)

* Channel Spacing: 20nm standard (custom spacing available)

* Return Loss: >45dB

* Power Handling: +23dBm per channel


Ordering Information: Contact our sales team for custom wavelength plans, hybrid CWDM/DWDM configurations, or bulk purchase discounts. All units include 5-year warranty and lifetime technical support.



Item Details

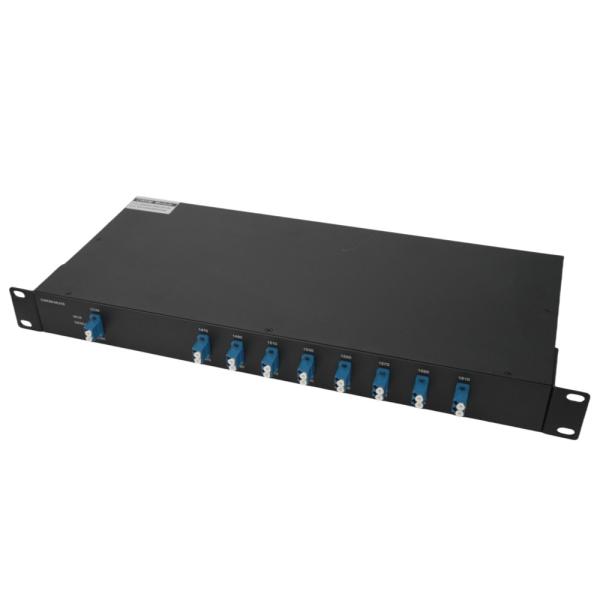

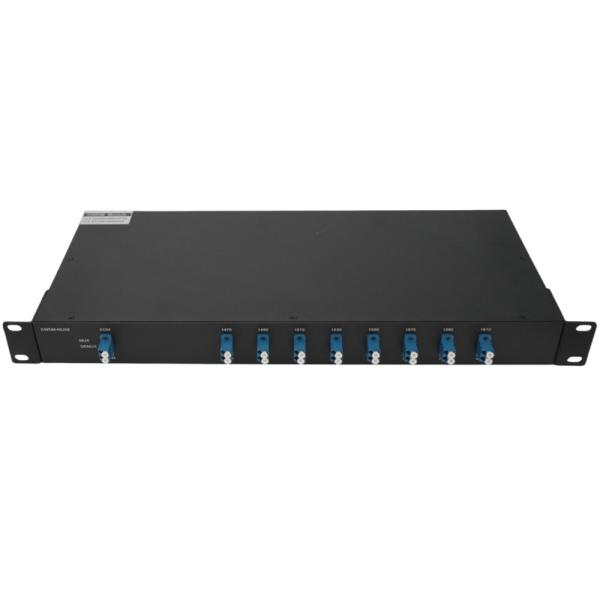

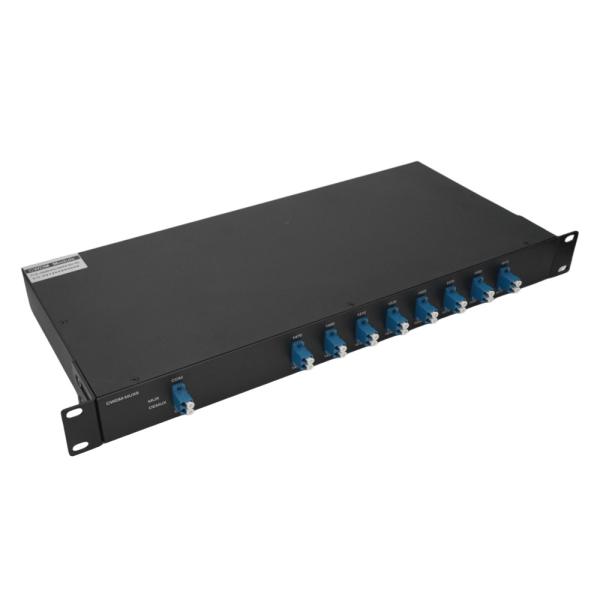

* 8 channels CWDM mux and demux in one 1U Rack
* Com port is simplex
* 1U 19 inch Rack Mount Housing
* It is equipped with configuration ports like Monitor, Express port according to customer choice (see options)
* Front panel is equipped with adapters according to customer choice (see options)
* Passive, no electric power required. (MTBF ca. 500 years)
* Low insertion loss
* Simple to install, requires no configuration or maintenance
* ISO 9001 manufacturing facility
* It should be used with another 8 channels 1RU Rack Mount box, Duplex Dual Fiber Transmission, CWDM Mux and Demux in pair.

Precision Tuning and Flexible Port Options for High Speed Data Transmission with CWDM MUX DEMUX in 1470 to 1610nm Wavelengths
Dual Fiber Transmission should be used in pairs, MUX/DEMUX Portfor specific wavelength must be opposite CWDM
HJY CWDM Mux/Demux is a passive technology, it allows for any protocol to be transported over the link, as long as it is at a specific wavelength (i.e. T1 over fiber at 1570nm transported alongside 10Gbps Ethernet at 1590nm). This allows for long-term future proofing of the networking infrastructure because the multiplexers simply refract light at any network speed, regardless of the protocol being deployed.
HJY provides a complete portfolio of CWDM Mux Demux and Optical Add Drop Multiplexer (OADM) units to suit all applications such as: Gigabit & 10G Ethernet, SDH/SONET, ATM, ESCON, Fibre Channel, FTTx and CATV. And we provide optional port configurations such as: Express Port, Monitor Port, 1310nm passband port and 1550nm port for these multiplexers according to customer choice.
Maximize Your Fiber with WDM Network
Dual fiber can be shared for multiple different data or services in WDM network. It maximizes the usefulness of fiber and generates substantial savings.
Precision Tuning and Flexible Port Options for High Speed Data Transmission with CWDM MUX DEMUX in 1470 to 1610nm Wavelengths
Mix of Services Multiplexing at Any Rate
Flexible mix of 1G/10G/25G/40G/100G/200G Ethernet, 8G/16G FC, SAN, OTN, SDH/SONET and native video services, it's transparent to any rate, any service multiplexing and upgrade
Precision Tuning and Flexible Port Options for High Speed Data Transmission with CWDM MUX DEMUX in 1470 to 1610nm Wavelengths
Product Specification
Wavelength
1270-1610nm
Channel Spacing
20nm
Channel Passband
±6.5nm
Technology
TFF (Thin Film Filter)
Insertion Loss
Regular :≤ 5.4dB (With 8 Skip 0:≤3.0dB)
Link Loss(A+B)
Regular :≤ 6.2dB (With 8 Skip 0:≤4.0dB)
Center Wavelength Accuracy
±0.05nm
Return Loss
≥ 45dB
Directivity
≥ 45dB
Polarization Mode Dispersion
≤ 0.1ps
Polarization Dependent Loss
≤ 0.3dB
Channel Isolation
Adjacent ≥30dB Non-adjacent ≥45dB
Connector
LC/UPC
Temperature
Operating -40 to 85°C Storage -40 to 85°C
Net Weight
1U 19ich Chassis 1.2KG
Dimensions (HxWxD)
1u Rack 44*440*230mm

Note: Specified with connectors.
Mechanical Details for Housing
Precision Tuning and Flexible Port Options for High Speed Data Transmission with CWDM MUX DEMUX in 1470 to 1610nm Wavelengths
Note: Please, note that the drawings shown here only show the dimensions and do not the specific configuration of the module.
