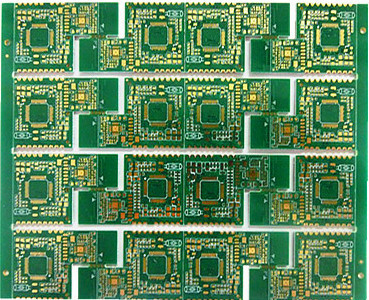

ROHS Compliant FR4 Multilayer PCB Board 4-Layer 120mm x 90mm for Stable Electrical Performance
ROHS Compliant FR4 Multilayer PCB Board 4-Layer 120mm x 90mm for Stable Electrical Performance
Specifications
Brand Name :
Xingqiang
Model Number :
As Per Customer's Model
Place Of Origin :
China
Certification :
ROHS,ISO,UL,IATF
MOQ :
Sample,1 Pc(5 Square Meters)
Price :
Based On Gerber Files
Packaging Details :
Carton Or As Your Request
Delivery Time :
NA
Payment Terms :
,T/T,Western Union
Supply Ability :
100000㎡/Month
Soldmask :
Green
Size :
120mmX90mm
Special Requirement :
Impedance Control Test
Solder Mast :
Customized
Rohs Compliant :
Yes
Layers :
4L
Components Purchasing :
OK
Pcb Standard :
IPC-A-610 E Class II-III
Description
Product Overview

The Multilayer PCB Board is a high-quality FR4 Multilayer PCB designed to meet the demanding requirements of modern electronic applications. With a compact size of 120mm x 90mm, this 4-layer PCB offers an ideal solution for complex circuit designs that require multiple signal layers and enhanced electrical performance.

Manufactured using advanced processes and materials, this Electronic PCB Board ensures reliability, durability, and precision, making it suitable for a wide range of industries including telecommunications, automotive, consumer electronics, and industrial equipment.

Key Features
  • Robust 4-layer construction for efficient signal routing and power planes
  • Enhanced signal integrity and reduced electromagnetic interference (EMI)
  • Heavy copper capability for improved current carrying capacity and heat dissipation
  • Customizable solder mask options for improved protection and aesthetics
  • Acceptance of Gerber files or design data for precise customization
Technical Specifications
Parameter Specification
PCB Standard IPC-A-610 E Class II-III
RoHS Compliant Yes
Samples Available
Size 120mm x 90mm
Layers 4L
Board Thickness 0.4mm to 3.2mm
Soldermask Green
Production Requirements Gerber File or Design Data Needed
Glass Epoxy RO4003C
Components Purchasing OK
Applications

The Xingqiang Multilayer PCB Board is a versatile and reliable solution widely used in various industries and applications requiring high-density circuit integration and superior performance.

Primary Application Areas
  • Telecommunications equipment
  • Industrial machinery and automation
  • Consumer electronics
  • Automotive electronics
  • Medical devices
  • Aerospace technology
Certifications & Compliance

Certified with ROHS, ISO, UL, and IATF standards ensuring compliance and safety across different industries.

Frequently Asked Questions
What brand manufactures the Multilayer PCB Board?
The Multilayer PCB Board is manufactured by the brand Xingqiang.
Can I order a custom model for the Multilayer PCB Board?
Yes, the model number is made as per the customer's model specifications.
What certifications does the Xingqiang Multilayer PCB Board have?
The product is certified with ROHS, ISO, UL, and IATF standards.
What is the minimum order quantity for the Multilayer PCB Board?
The minimum order quantity is a sample or 1 piece, with a minimum of 5 square meters.
How is the price for the Multilayer PCB Board determined?
The price is based on the Gerber files provided by the customer.
What are the payment terms available for purchasing the Multilayer PCB Board?
Payment can be made via T/T or Western Union.
How is the product packaged for delivery?
The Multilayer PCB Board is packaged in cartons or as per the customer's request.
What is the supply capacity of Xingqiang for the Multilayer PCB Board?
Xingqiang has a supply ability of 100,000 square meters per month.
