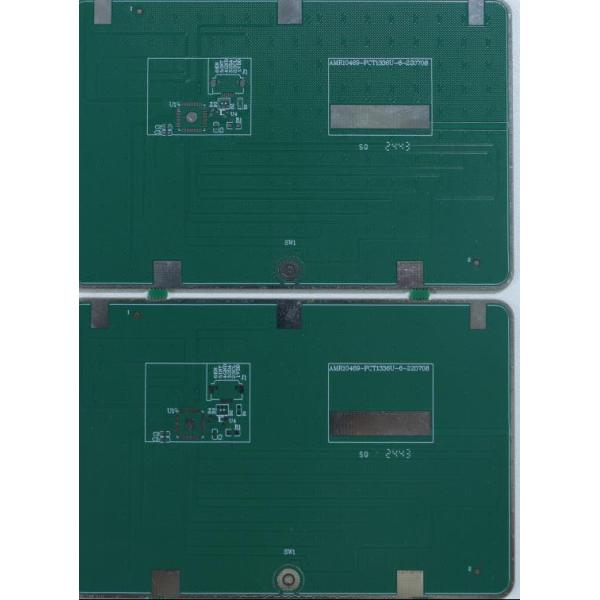

FR4 OSP Surface Multilayer Printed Circuit Board 4 Layer PCB Board OEM/ODM Service
FR4 OSP Surface Multilayer Printed Circuit Board 4 Layer PCB Board OEM/ODM Service
Specifications
Brand Name :
xingqiang
Model Number :
As Per Customer's Model
Certification :
ISO 9001 / RoHS /UL / IATF 16949 (automotive)
Place of Origin :
China
MOQ :
Sample,1 pc(5 square meters)
Price :
Based on Gerber Files
Payment Terms :
,T/T,Western Union
Supply Ability :
100000㎡/Month
Delivery Time :
NA
Product :
Print Circuit Board
Max.Board Size :
528*600mm
Minimum Line Space :
3mil (0.075mm)
Surface Finishing :
HASL/OSP/ENIG
Material :
FR4
Pcba Standard :
IPC-A-610 E Class II-III
Production :
Gerber Files or BOM List
Board Thinkness :
1.6/1.2/1.0/0.8 or Customized
Layer Counts :
2/4/6/8/10L or Customizable
Ink Color :
Green/Red/Yellow/White/Black/Blue
Description

FR4 OSP Surface Finishing Process

A Multilayer Printed Circuit Board (PCB) is a sophisticated assembly consisting of three or more conductive copper layers laminated together under high pressure and heat, with insulating materials (such as core and prepreg) separating each layer. Unlike single-sided boards, this complex structure enables high-density wiring and superior signal integrity.


Main Advantages of Multilayer PCB:


1. Enhanced Signal Integrity • Separates signal layers from power/ground layers, reducing crosstalk between adjacent signal traces.
• Provides a dedicated reference plane (ground or power) for signal layers, minimizing signal reflection and transmission loss.
2. Higher Component Density & Space Savings • Allows routing of traces on four layers instead of two, enabling more complex circuit designs in a smaller board area.
• Reduces the need for through-hole vias or jumper wires, making the board layout more compact and suitable for miniaturized devices.
3. Improved Electromagnetic Compatibility (EMC) • Dedicated power and ground layers form a stable "power-ground plane capacitor," filtering out high-frequency noise.
• Isolates sensitive analog signals from noisy digital circuits by placing them on separate layers, reducing electromagnetic interference (EMI) emissions and susceptibility.
4. Cost-Effectiveness for Complex Designs • More economical than 6-layer or higher-layer PCBs when basic 2-layer boards cannot meet performance requirements.
• Lowers overall system costs by reducing the need for additional external components (e.g., noise filters) that compensate for poor signal or EMC performance.



How to order multi-layer boards?

Send us your customizable Files:
1. Gerber files (RS-274X)
2. BOM (if PCBA needed)
3. Impedance requirements & stack-up (if available)
4.Test requirements (TDR, network analyzer, etc.)

Tip:Normally,Gerber files includes: PCB type,thickness, ink color, surface treatment process, and if SMT processing is required, you can provide a component BOM and reference designation diagram, etc.

We’ll reply within 24 hours with a free quote, DFM report, and material recommendation.
