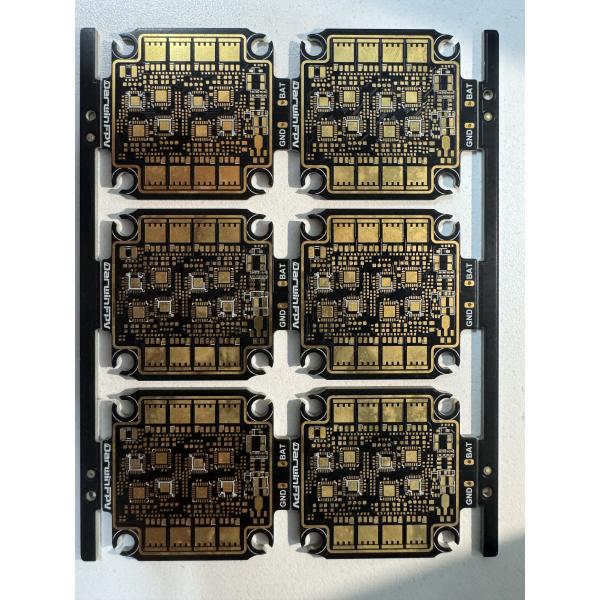

Custom UAV PCB with ENIG Surface Finish, 1-30 Layers, and Lightweight Design for Drones
Custom UAV PCB with ENIG Surface Finish, 1-30 Layers, and Lightweight Design for Drones
Specifications
Brand Name :
UAV PCB
Place Of Origin :
China
Payment Terms :
T/T,Western Union
Supply Ability :
100000㎡/Month
Delivery Time :
NA
Model Number :
As Per Customer's Model
Certification :
ISO 9001 / RoHS /UL / IATF 16949 (automotive)
MOQ :
Sample,1 pc(5 square meters)
Price :
Based on Gerber Files
Packaging Details :
Carton Or As Per Customer's Request
PCB :
UAV PCB
Surface Finish :
ENIG
Material :
FR-4
Min. Trace Width :
3mil
Layers :
1-30L
Min. Trace Spacing :
0.075mm
Thickness :
0.2-5.0mm
Testing Method :
Flying Probe Test
Max. Board Size :
528mm x 600mm
Quotation :
Gerber Files or BOM List
Description
Customer-customized UAV PCB Drone Printed Circuit Board Lightweight Design
ENIG UAV Circuit Boards: Reliable Signal Transmission & Durability

Electroless Nickel Immersion Gold (ENIG) UAV circuit boards are high-performance PCB substrates tailored for unmanned aerial vehicles. The ENIG surface finish provides exceptional corrosion resistance, stable electrical conductivity, and excellent solderability. Ideal for UAVs operating in harsh environments, these boards ensure reliable signal transmission for flight control, navigation, and payload systems, withstand vibration and temperature fluctuations, and support miniaturized, high-density component integration critical to UAV agility and endurance.

Materials for Drone Circuit Board Manufacturing
  • FR-4: A cost-effective glass-reinforced epoxy laminate with good electrical insulation and flame retardancy, ideal for consumer-grade UAV control and power boards.
  • High-Tg FR-4 (Tg ≥ 170°C): Enhanced heat resistance, suitable for long-endurance or high-power UAVs to avoid thermal deformation.
  • Polyimide (PI): Lightweight, flexible, and heat-resistant with low dielectric loss, perfect for high-density, miniaturized flight control modules.
  • PTFE (Teflon): Ultra-low dielectric constant and loss tangent, ensures stable high-frequency signal transmission for industrial/military UAV navigation and communication systems.
  • Metal-core PCBs (Aluminum/Copper-based): Superior thermal conductivity, used for UAV power boards to dissipate heat from high-current components.
Frequently Asked Questions
How many layers can your circuit boards provide?

We typically provide 1-30 layer boards, and in special cases, we can stack more layers.

Do your circuit boards support customization?

Yes, we support customized designs. You can send us your Gerber files and BOM list, and we will provide you with an accurate quote based on the information and market conditions.

What do Gerber files typically contain?

Normally Gerber files include: PCB types, product thickness, ink color, surface treatment process, and if SMT processing is required, component BOM and tag drawing are also required.

What is your minimum order quantity for PCB boards?

Our minimum order quantity is 1 piece (5 square meters), the larger the quantity, the bigger the discount.

Do you have relevant certification certificates to support this?

We hold numerous important certifications, including ISO, UL, CE, and RoHS. All products undergo rigorous quality testing.

What payment method do you usually use?

For small orders, samples, or urgent payments, we accept Western Union. For large orders, we recommend T/T, which ensures the safety of both parties.
