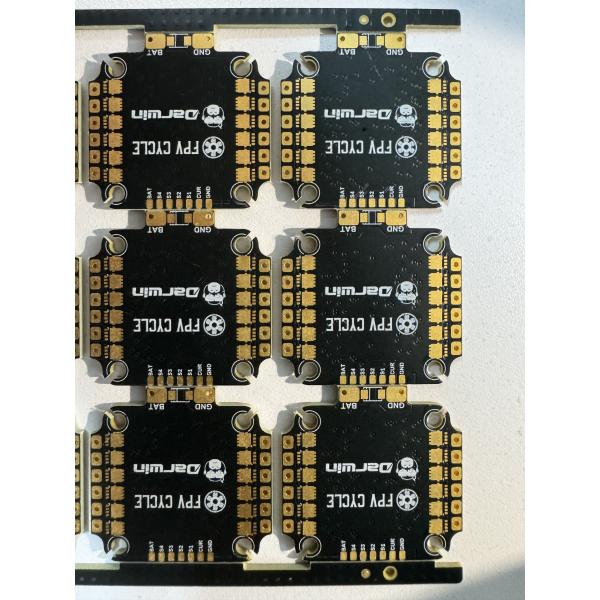

Custom UAV PCB with 0.1mm Min. Hole Size, FR4 Material, and Customized Thickness for Stable Drone Navigation
Custom UAV PCB with 0.1mm Min. Hole Size, FR4 Material, and Customized Thickness for Stable Drone Navigation
Specifications
Brand Name :
UAV PCB
Place Of Origin :
Dongguan China
MOQ :
Sample,1 pc(5 square meters)
Payment Terms :
T/T,Western Union
Supply Ability :
100000㎡/Month
Model Number :
As Per Customer's Model
Certification :
ISO 9001 / RoHS /UL / IATF 16949 (automotive)
Place of Origin :
China
Price :
Based on Gerber Files
Delivery Time :
NA
Packaging Details :
Carton Or As Per Customer's Request
Product :
UAV Print Circuit Board
Min. Hole Size :
0.1mm
Min. Trace Spacing :
3mil
Material :
FR4
Min.hole Size :
0.1mm
Pcba Custom :
Support
Surface Finishing :
HASL/OSP/ENIG
Quotation Request :
Gerber or BOM List
Solder Mask :
Green/Black/Blue/White/Red
Thickness :
1.6/1.2/1.0/0.8mm or Customized
Description
Custom UAV Flight Control PCBs High-Clarity Visual Transmission Stable Navigation
Specialized UAV PCBs for Aerial Environment Resilience

UAV PCB (Unmanned Aerial Vehicle Printed Circuit Board) serves as the critical backbone of drone electronics, integrating various components to ensure stable and efficient operation of unmanned aerial systems. These specialized circuit boards are engineered to meet the unique demands of aerial environments, including weight constraints, vibration resistance, and reliable performance under varying temperature conditions.

Main Features of UAV PCBs
  • Miniaturization & Weight Optimization
  • Environmental Resilience
  • Signal Integrity
  • Power Management
  • Component Integration
Applications
  • Consumer drones (photography, recreation)
  • Industrial inspection UAVs
  • Agricultural monitoring drones
  • Search and rescue unmanned systems
  • Military and surveillance aerial vehicles
  • Delivery drones
Customization Services

Please send us your:

  1. Gerber files (RS-274X)
  2. BOM (if PCBA needed)
  3. Impedance requirements & stack-up (if available)
  4. Test requirements (TDR, network analyzer, etc.)
Normally, Gerber files includes: PCB Types, thickness, ink color, surface treatment process, and if SMT processing is required, you can provide a component BOM and reference designation diagram, etc. We'll reply within 24 hours with a free quote, DFM report, and material recommendation.
Custom UAV PCB with 0.1mm Min. Hole Size, FR4 Material, and Customized Thickness for Stable Drone Navigation
Custom UAV PCB with 0.1mm Min. Hole Size, FR4 Material, and Customized Thickness for Stable Drone Navigation
Factory showcase
Custom UAV PCB with 0.1mm Min. Hole Size, FR4 Material, and Customized Thickness for Stable Drone Navigation
PCB Quality Testing
Custom UAV PCB with 0.1mm Min. Hole Size, FR4 Material, and Customized Thickness for Stable Drone Navigation
Certificates and Honors
Custom UAV PCB with 0.1mm Min. Hole Size, FR4 Material, and Customized Thickness for Stable Drone Navigation
