Specifications
Place of Origin :
Ningbo ,China
Brand Name :
Yongzhou
Certification :
ISO9001:2008
Model Number :
LXSG-15E
MOQ :
1000pcs
Packaging Details :
Carton box
Delivery Time :
15-30days after receiving deposit
Payment Terms :
T/T, L/C, Western Union, MoneyGram, PayPal, etc.
Supply Ability :
50000pcs/month
Model NO :
LXSG-15E
Application :
Resident
Dial :
Dry Dial
Feature :
Rotary|Vane Wheel|Horizontal|Magnetic
Material :
Stainless Steel
Product Name :
Multi Jet Water Meter
Standard :
ISO 4064|Class B
Type :
Multi Jet
Water Type :
Cold
Description

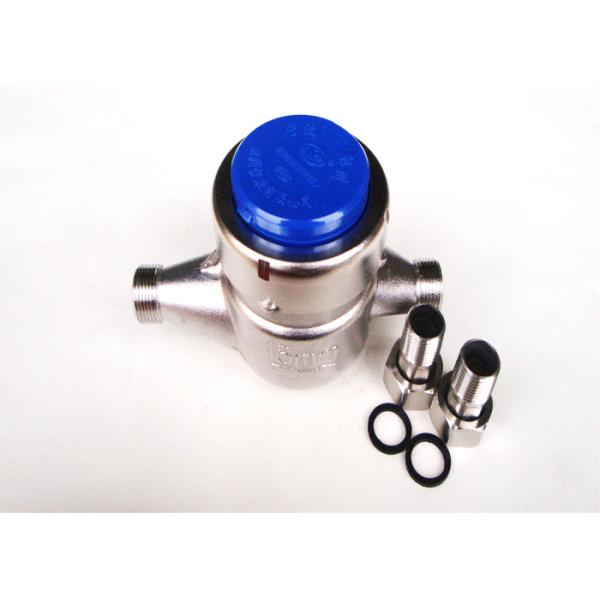

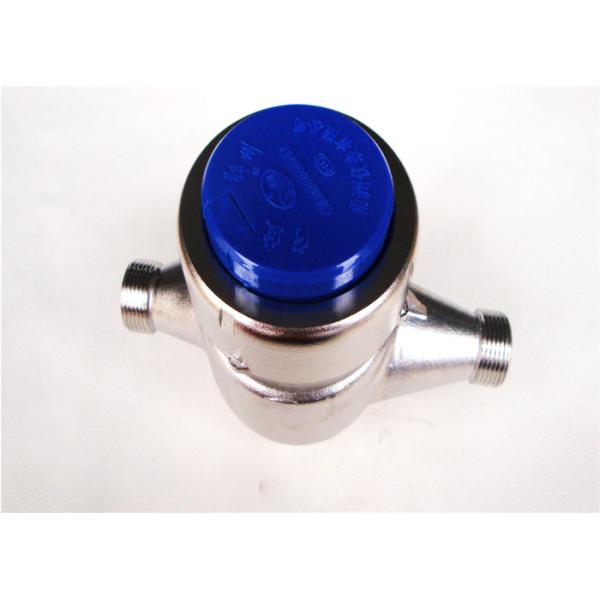

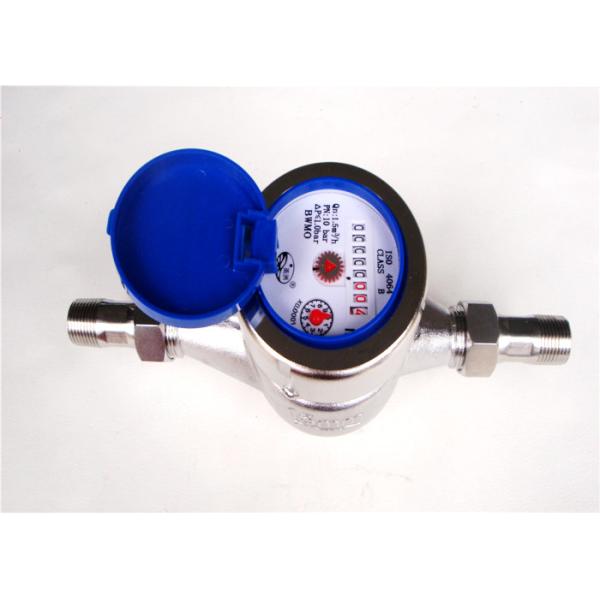

Resident Stainless Steel Water Meter Dry Dial Type Multi Jet

Description:

Stainless steel Multi-jet Dry-dial Type Cold Water Meter LXSG-15E~LXSG-20E

Quick Detail:

1. Type name: Multi-jet dry-dial cold type

2. Model No.: LXSG-15E

3. Standard :ISO 4064 Class B

4. Material: Stainless steel

5. Feature :Inlet strainer and return valve is for option

6. 5digits with 4 pointers

Product features:

Multi-jet ,Rotary vane wheel type

Dry-dial, Magnetic drive ,Resistance to exterior magnet interference

Material: Stainless steel

Good looking

Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service

Measuring accuracy conform to ISO4064 Class B standard

Installation requirements:

  1. Meter should be installed in horizontal position with the register face upwards
  2. Pipe line must be flushed before installation
  3. The meter should be constantly full of water during operation

Main Technical data

Meter Size DN (mm)

Class

Qs

Overload

Flow

Qp

Nominal

Flow

Qt

Transitional

Flow

Qmin

Min

Flow

Starting

Flow

Min

Reading

Max

Reading

m³/h

L/h

m³

15

B

3

1.5

120

30

14

0.0001

99999

20

B

5

2.5

200

50

16

0.0001

99999

25

B

7

3.5

280

70

19

0.0001

99999

32

B

12

6.0

480

120

25

0.0001

99999

40

B

20

10

800

200

56

0.0001

99999

50

B

30

15

3000

450

70

0.0001

99999

Maximum permissible error:

In the lower zone from Qmin inclusive up to but excluding Qt is ±5%

In the upper zone from Qt inclusive up to and including Qs is ±2%

Working Condition:

Water temperature:0℃≤t≤50℃ (For cold water meter)

Water pressure: ≤10bar (16bar on request)

Specifications:

Type

size

L

B

H

Connection thread

LSXG-15E

15

165

98

104

G3/4B

LXSG-20E

20

190/195

98

108

G1B

Competitive Advantage:

Reasonable price with good quality

Long time guarantee

100% tested

On time delivery
