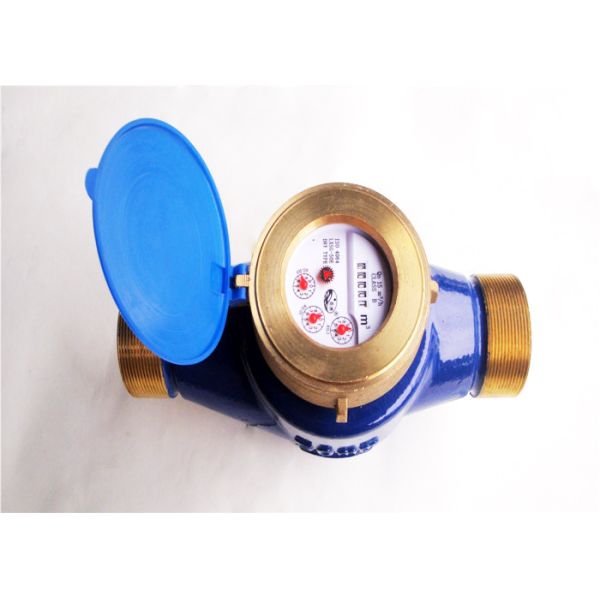

Brass Multi Jet Water Meter
Brass Multi Jet Water Meter
Specifications
Application :
Household|Resident
Dial :
Wet Dial
Feature :
Horizontal
Material :
Brass|Iron
Product Name :
Multi Jet Water Meter
Standard :
ISO 4064|Class B
Thread :
BSP|Flange
Type :
Multi Jet
Water Type :
Hot|Cold
Place of Origin :
Ningbo ,China
Brand Name :
Yongzhou
Certification :
ISO9001:2008
Model Number :
LXS-50E
MOQ :
1000pcs
Packaging Details :
Wooden box
Delivery Time :
15-30days after receiving deposit
Payment Terms :
T/T , L C, West union,etc.
Supply Ability :
50000pcs/month
Description

Horizontal Type Cold Brass Water Meter With ISO 4064 Class B , Multi Jet

Quick Detail:

1. Type name: Multi-jet ,wet-dial ,rotary vane wheel type

2. Model No.: LXS-50E

3. Standard :ISO 4064 Class B

4. Material: Brass or Iron

5. Cold water meter

6. Horizontal installation

Description:

Multi-jet Wet-dial Type Cold Water Meter with thread ending LXS-50E

Product features:

Multi-jet , wet-dial, rotary vane wheel type

Selected high quality materials for steady and reliable characteristic

Universal use and good looking

Flange connection or BSP thread could be option

Application:

This range of water meter is used to measure the total quantity of cold (hot) potable water which consumed in household or a resident unit passing through the pipeline.

Installation requirements:

  1. Meter should be installed in horizontal position with the register face upwards
  2. Pipe line must be flushed before installation
  3. The meter should be constantly full of water during operation

Main Technical data

Meter Size DN (mm)

Class

Qs

Overload

Flow

Qp

Nominal

Flow

Qt

Transitional

Flow

Qmin

Min

Flow

Starting

Flow

Min

Reading

Max

Reading

m³/h

L/h

m³

15

B

3

1.5

120

30

8

0.0001

99999

20

B

5

2.5

200

50

10

0.0001

99999

25

B

7

3.5

280

70

12

0.0001

99999

32

B

12

6.0

480

120

14

0.0001

99999

40

B

20

10

800

200

40

0.0001

99999

50

B

30

15

3000

450

45

0.0001

99999

Maximum permissible error:

In the lower zone from Qmin inclusive up to but excluding Qt is ±5%

In the upper zone from Qt inclusive up to and including Qs is ±2%

Working Condition:

Water temperature:0℃≤t≤50℃ (For cold water meter)

Water pressure: ≤10bar (16bar on request)

Specifications:

Type

size

L

B

H

Connection thread

Weight

LSXG-15E

15

165

G3/4B

LXSG-20E

20

195

G1B

LXSG-25E

25

LXSG-32E

32

LXSG-40E

40

LXSG-50E

50

Competitive Advantage:

100% tested

Reasonable price with good quality

Long time guarantee

On time delivery

Long working life
