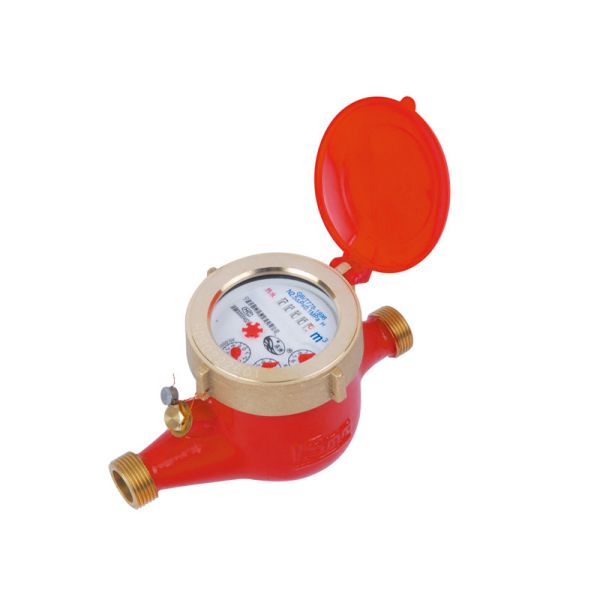

Rotary Vane Hot Water Meter 1/2 Inch Multi Jet Wet Dial LXSR-50E
Rotary Vane Hot Water Meter 1/2 Inch Multi Jet Wet Dial LXSR-50E
Rotary Vane Hot Water Meter 1/2 Inch Multi Jet Wet Dial LXSR-50E
Rotary Vane Hot Water Meter 1/2 Inch Multi Jet Wet Dial LXSR-50E
Rotary Vane Hot Water Meter 1/2 Inch Multi Jet Wet Dial LXSR-50E
Rotary Vane Hot Water Meter 1/2 Inch Multi Jet Wet Dial LXSR-50E
Specifications
Place of Origin :
Ningbo ,China
Brand Name :
Yongzhou
Certification :
ISO9001:2008
Model Number :
LXSR-15E
MOQ :
500pcs
Packaging Details :
Carton box
Delivery Time :
15-30days after receiving deposit
Payment Terms :
T/T , LC, West union, MoneyGram, PayPal, etc.
Supply Ability :
50000pcs/month
Application :
Household|Resident
Dial :
Wet Dial
Feature :
Rotary|Vane Wheel
Material :
Brass
Product Name :
Multi Jet Water Meter
Standard :
ISO 4064|Class B
Thread :
BSP|Flange
Type :
Multi Jet
Water Type :
Hot
Description

Rotary Vane Hot Water Meter 1/2 Inch Multi Jet Wet Dial LXSR-50E

Description:

Multi-jet Wet-dial Type Hot brass Water Meter with Flange connection LXSR-50E

Quick Detail:

1. Type name: Multi-jet ,wet-dial ,rotary vane wheel type

2. Model No.: LXSR-50E

3. Standard :ISO 4064 Class B

4. Material: Brass

5. BSP thread

6. Hot water meter

Product features:

Multi-jet , wet-dial, rotary vane wheel type

Selected high quality materials for steady and reliable characteristic

Universal use and good looking

Technical data conforms to ISO 4064 Class B

Application:

This range of water meter is used to measure the total quantity of cold (hot) potable water which consumed in household or a resident unit passing through the pipeline.

Main Technical data

Meter Size DN (mm)

Class

Qs

Overload

Flow

Qp

Nominal

Flow

Qt

Transitional

Flow

Qmin

Min

Flow

Starting

Flow

Min

Reading

Max

Reading

m³/h

L/h

m³

15

B

3

1.5

120

30

8

0.0001

99999

20

B

5

2.5

200

50

10

0.0001

99999

25

B

7

3.5

280

70

12

0.0001

99999

32

B

12

6.0

480

120

14

0.0001

99999

40

B

20

10

800

200

40

0.0001

99999

50

B

30

15

3000

450

45

0.0001

99999

Maximum permissible error:

In the lower zone from Qmin inclusive up to but excluding Qt is ±5%

In the upper zone from Qt inclusive up to and including Qs is ±2%

Working Condition:

Water temperature:0℃≤t≤90℃ (For hot water meter)

Water pressure: ≤10bar (16bar on request)

Specifications:

Type

size

L

B

H

Connection thread

LSXR-15E

15

165

98

104

G3/4B

Installation requirements:

  1. Meter should be installed in horizontal position with the register face upwards
  2. Pipe line must be flushed before installation
  3. The meter should be constantly full of water during operation

Competitive Advantage:

100% tested

Reasonable price with good quality

Long time guarantee

On time delivery

Long working life
