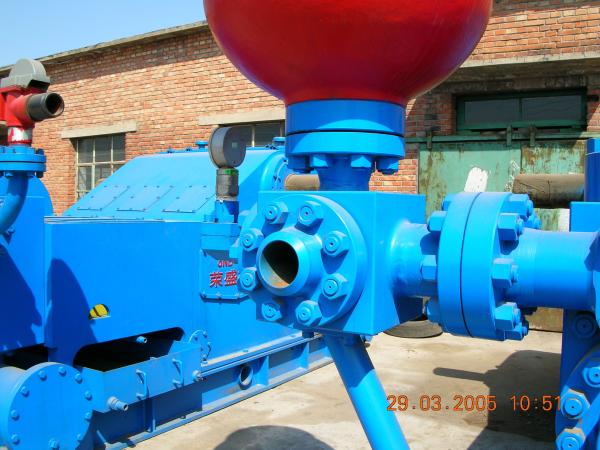

API 7K Standard F500 Oil Rig Mud Pump 373 Kw With Long Stroke
API 7K Standard F500 Oil Rig Mud Pump 373 Kw With Long Stroke
Specifications
Brand Name :
Hebei Pantu
Model Number :
F500
Certification :
API 7K & ISO
Place of Origin :
China
MOQ :
1
Price :
10000USD~50000USD
Payment Terms :
L/C, T/T
Supply Ability :
20sets/month
Delivery Time :
45 days
Packaging Details :
3302mm*1671mm*1412mm(13ft*6.85ft*5.56ft)
Name :
F500 Oil Rig Mud Pump
Rated input Power : :
373 kW
Stroke Length: :
190.5 mm
Stroke Length :
229mm
Gear Ratio: :
4.286:1
Max. Working Pressure :
34.5MPa
Advantage :
Long Stroke
standard :
API 7K standard
Description

API 7K F500 Oil Rig Mud Pump With Long Stroke

Introduction

F series Oil Rig Mud Pump has a longer stroke and can be operated at a lower rate, improving water supply performance and significantly extending the lifetime of mud pump fluid end parts.

Parameters of F500 Oil Rig Mud Pump

Liner Size in 6 3/4
6 1/2
 6 5 1/2 5 4 1/2 4
3 1/2
Discharge Pressure Mpa
9.2
10
11.7
13.9
16.8
20.8
26.3
34.5
psi
1334
1450
1670
2016
2400
3016
3814
5000
Stroke per Minute
(SPM)		 Power
KW(HP)		 Displacement L/s(GPM)
170
384
(515)
37.29
(591.0)
34.62
(548.7)
29.46
(466.9)
24.72
(391.8)
20.50
(324.9)
16.59
(262.9)
13.08
(207.3)
10.05
(159.2)
*165
*373
(500)
36.2
(573.7)
33.6
(532.5)
28.6
(453.3)
24
(380.4)
19.9
(315.4)
16.1
(255.)
12.7
(201.2)
9.75
(154.5)
150
339.4
(455)
32.9
(521.4)
30.55
(484.2)
26
(412.1)
21.8
(345.5)
18.1
(286.8)
14.64
(232.0)
11.55
(183.0)
8.86
(140.4)
140
316.5
(424)
30.72
(486.9)
28.51
(451.8)
24.27
(384.6)
20.36
(322.7)
16.88
(267.5)
13.66
(216.5)
10.78
(170.8)
8.27
(131.0)
130
293.9
(394)
28.52
(452.0)
26.47
(419.5)
22.53
(357.1)
18.91
(299.7)
15.68
(248.5)
12.68
(200.9)
10.01
(158.6)
8.27
(131.0)
120
271.2
(364)
26.33
(417.3)
24.44
(387.3)
20.8
(329.6)
17.45
(276.5)
14.47
(229.3)
11.71
(185.6)
9.24
(146.4)
7.09
(112.3)
110
248.7
(333)
24.1
(381.9)
22.4
(355.0)
19.07
(302.2)
16
(253.6)
13.27
(210.3)
10.73
(170.0)
8.46
(134.0)
6.5
(103.0)
1
2.261
(3.03)
0.219
(3.47)
0.204
(3.23)
0.173
(2.74)
0.145
(2.29)
0.121
(1.91)
0.098
(1.55)
0.077
(1.22)
0.059
(0.93)
--Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency.　　　　　　　　
--The * present the recommendatory SPM and input power when the mud pump runs continuously.　　　　　　　　

F500 Oil Rig Mud Pump Specification :


Rated input Power : 500 HP

Stroke Per Minute: 165 SPM
Stroke Length: 190.5 mm (7 1/2")

Gear Ratio: 4.286:1
Max. Working Pressure : 5000 psi

Valve : API#5
Max.Liner Size : 170 mm (6 3/4")
Suction Inlet Flange : 203.2 mm (8") flange
Discharge Outlet Flange : 101.6 mm (4") flange,34.5 MPa (5000 psi)
Overall Dimension (L×W×H):3639×2369×2315 mm3(11.94×7.77×7.6 ft3)Approx Weight : 9543 kg (21039 lb)
