500HP Oil Rig Mud Pump Electric Driving Triplex Mud Pump Small Volume
500HP Oil Rig Mud Pump Electric Driving Triplex Mud Pump Small Volume
500HP Oil Rig Mud Pump Electric Driving Triplex Mud Pump Small Volume
500HP Oil Rig Mud Pump Electric Driving Triplex Mud Pump Small Volume
Specifications
Brand Name :
Hebei Pantu
Model Number :
W-447C
Certification :
API 7K & ISO
Place of Origin :
China
MOQ :
1
Price :
10000USD~50000USD
Payment Terms :
L/C, T/T
Supply Ability :
20sets/month
Delivery Time :
45 days
Packaging Details :
3302mm*1671mm*1412mm(13ft*6.85ft*5.56ft)
Name :
Triplex Mud Pump
Drive :
Electric Driving And Diesel Driving
stroke Per Minutes :
260 SPM
Stroke Length: :
177.8 mm (7")
Gear Ratio: :
4.578:1
Valve :
API #4
Discharge Outlet Flange :
21 MPa (3000 psi)
Approx Weight :
10355 lb
Description

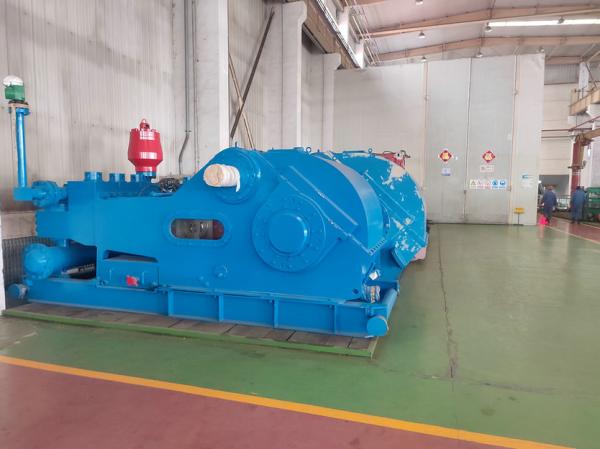

W-447C Triplex Mud Pump Electric Driving And Diesel Driving

W-447C Triplex Mud Pump Structural Characters:

Compact structure, lightweight, small volume, beautiful appearance, is driven by a hydraulic motor, electric power or diesel engine.

W-447C Triplex Mud Pump is a horizontal triplex grout pump with high stability and high pressure.

W-447C Triplex Mud Pump has gear shift to adjust the flow, large output capacity, simple operation.

High-quality pump parts, less wearing parts, long service life, and low construction cost.

Mud pump has less noise and dust, and environmental operation.

Parameters of W-447C Triplex Mud Pump

Plunger diameter 170mm

 Stroke per Minute SPM 300 280 260 240 220 200 180 160
Discharge Pressure (MPa)

5.55

5.94

6.39

6.94

7.57

8.32

9.24

10.00
Displacement (m3/min) 3.63 3.39 3.15 2.90 2.66 2.42 2.18 1.94
● Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency.

W-447C Triplex Mud Pump Specification :


Rated Input Power: 373 kW (500 HP)Max.Pump speed: 260 SPM
stroke Length: 177.8 mm (7")Gear Ratio: 4.578:1
Rated working pressure: 21 MPa (3000 psi)Valve: API #6
Suction Inlet Flange: 203.2 mm (8") flange
Discharge Outlet Flange: 103 mm (4 1/16") flange,21 MPa (3000 psi)Pinion Shaft Size: 95.2 mm(3.75")
Overall Dimension (L×WxH):2494×1271×1330 mm3(8.18×4.17×4.63 ft3)Approx Weight : 4697 kg (10355 lb)
