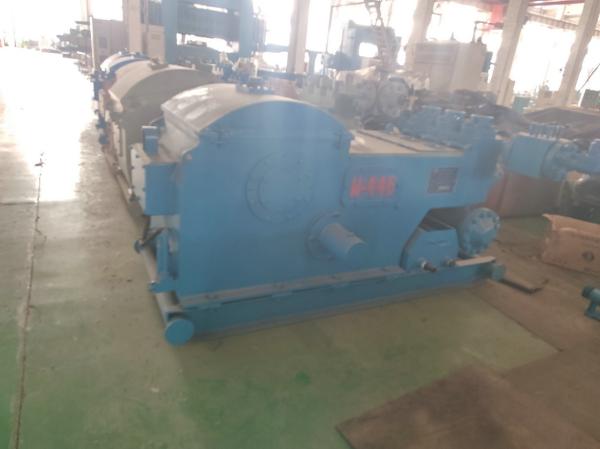

6 Inch Oil Drilling Mud Pump 3000 Psi Single Acting Piston Pump
6 Inch Oil Drilling Mud Pump 3000 Psi Single Acting Piston Pump
6 Inch Oil Drilling Mud Pump 3000 Psi Single Acting Piston Pump
6 Inch Oil Drilling Mud Pump 3000 Psi Single Acting Piston Pump
Specifications
Brand Name :
Hebei Pantu
Model Number :
W-446
Certification :
API 7K & ISO
Place of Origin :
China
MOQ :
1
Price :
10000USD~50000USD
Payment Terms :
L/C, T/T
Supply Ability :
20sets/month
Delivery Time :
45 days
Packaging Details :
3302mm*1671mm*1412mm(13ft*6.85ft*5.56ft)
Name :
Single Acting Piston Pump
Rated input Power: :
373 kW (500 HP)
stroke Per Minutes :
260 SPM
Stroke Length: :
6 inch
Gear Ratio: :
4.578:1
Usage :
Oil Drilling
Discharge Outlet Flange :
2 1/16" flange, 5000 psi
Other Name :
Oil Drilling Mud Pump
Description

W-446 Single Acting Piston Pump Oil Drilling Mud Pump

W-446 Single Acting Piston Pump is designed and manufactured strictly in accordance with API 7K standard on the basis of F series mud pump. All W-446 Single Acting Piston Pump spare parts can be compatible with any other make pump. Therefore, the pump is easy to maintain internationally.

Parameters of W-446 Single Acting Piston Pump

Liner Size in 6 5 3/4 5 1/2 5 1/4 5 4 1/2 4
Discharge Pressure MPa 9.3 10.1 11.0 12.1 13.4 16.5 20.7
psi 1349 1465 1595 1755 1943 2393 3000
Stroke per Minute SPM Power kW(HP) Displacement L/s(GPM)
260

373

(500)

36.1

(572.2)

33.2

(526.2)

30.4

(481.4)

27.7

(439.0)

25.1

(397.8)

20.3

(321.8)

16.1

(255.2)
220

316

(423)

30.6

(485.0)

28.1

(445.4)

25.7

(407.3)

23.4

(370.9)

21.2

(336.0)

17.2

(272.6)

13.6

(215.6)
180

258

(346)

25.0

(396.3)

23.0

(364.6)

21.0

(332.9)

19.2

(304.3)

17.4

(275.8)

14.1

(223.5)

11.1

(175.9)
140

201

(269)

19.5

(309.1)

17.9

(283.7)

16.4

(259.9)

14.9

(236.2)

13.5

(214.0)

10.9

(172.8)

8.6

(136.3)
100

143

(192)

13.9

(220.3)

12.8

(202.9)

11.7

(185.4)

10.6

(168.0)

9.7

(153.7)

7.8

(123.6)

6.2

(98.3)
60

86

(115)

8.3

(131.6)

7.7

(120.5)

7.0

(111.0)

6.4

(101.4)

5.8

(91.9)

4.7

(74.5)

3.7

(58.6)
1

1.43

(1.92)

0.139

(2.203)

0.128

(2.029)

0.117

(1.854)

0.106

(1.680)

0.097

(1.537)

0.078

(1.236)

0.062

(0.983)
● Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency.

Liner Size in 6 5 3/4 5 1/2 5 1/4 5 4 1/2 4
Displacement gal/rev 2.205 2.025 1.851 1.686 1.527 1.239 0.980
L/s 30.6 28.1 25.7 23.4 21.2 17.2 13.6
Discharge Pressure psi 1595 1725 1900 2074 2291 2828 3000
MPa 11.0 11.9 13.1 14.3 15.8 19.5 20.7
● Performance data are calculated by 220 spm.

W-446 Single Acting Piston Pump Specification :


Rated Input Power 373 kW (500 HP)
Stroke Per Minute 260 SPM
Continuous Running 220 SPM
Stroke Length 6"
Gear Ratio 4.578:1
Max. Working Pressure 3000 psi
Valve API #4
Max. Liner Size 6"
Suction Inlet Flange 8" flange
Discharge Outlet Flange 2 1/16" flange, 5000 psi
Pinion Shaft Size 3.75"
Overall Dimension (L×W×H) 8.13×4×3.62 ft3
Approx Weight 9950 lb
